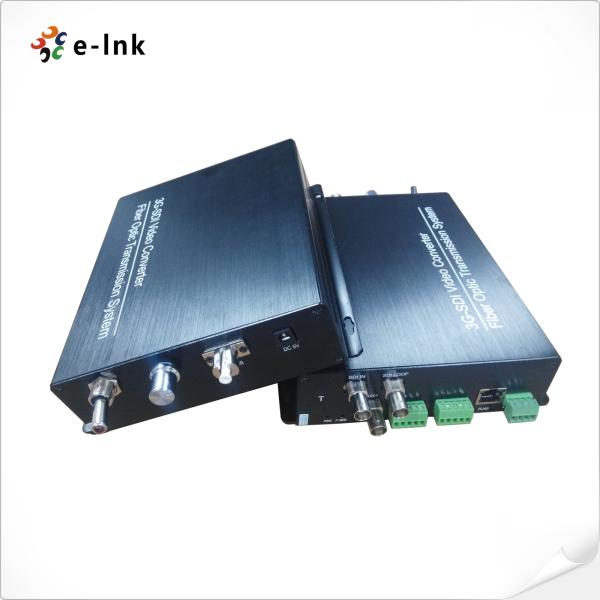

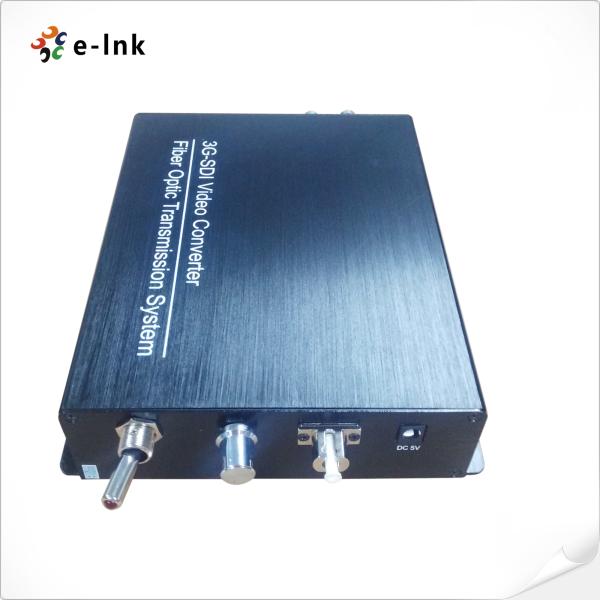

Broadcast Fiber System 3GHD-SDI 10/100Base-T RS422 Genlock Remote Control
Broadcast Fiber System 3GHD-SDI 10/100Base-T RS422 Genlock Remote Control
Broadcast Fiber System 3GHD-SDI 10/100Base-T RS422 Genlock Remote Control
Broadcast Fiber System 3GHD-SDI 10/100Base-T RS422 Genlock Remote Control
Specifications
Brand Name :
E-link
Model Number :
LNK-MSDI
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 PCS
Price :
USD $679-699
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
2000pcs/month
Delivery Time :
3-10working days
Packaging Details :
3G-SDI Fiber Converter Standard Export Package
Data :
RS422 /RS232/RS485
Wavelength :
1310nm / 1550nm / CWDM
Power consumption :
15W
Dimensions (LxWxH) :
172mm*167mm*45mm
Net weight :
4kg
Input power :
DC5V 3A
Transmission Distance :
SM fiber 10+km , MM fiber 300m
Port :
10/100 Base-T, RJ-45 connector
Description

3G/HD/SD-SDI, RS422, Audio, Ethernet, Tally, Intercom & Return Video over Fiber Multiplexer


3G/HD/SD-SDI Fiber Optic Converter Overview


The LNK-MSDI Series is a professional fibre optic transmission system that delivers 3G/HD/SD-SDI video compliant with SMPTE 424M-2006, 292 and 259 standards, as well as 10/100Base-T Ethernet, RS422, audio, tally, intercom and return video, all over single- or multi-mode fibre. This advanced system enables the simultaneous transmission of all data channels, providing a comprehensive solution for broadcast and production environments. It transports 3G/HD-SDI signals from the camera to the base station while supporting return video (3G/HD-SDI), remote control data, genlock, intercom, tally, audio and Ethernet over a single SM/MM tactical or SMPTE hybrid fibre cable. Designed for reliability and robust performance, the LNK-MSDI Series provides seamless, high-quality connectivity for studio productions, remote broadcasts and multi-camera setups.

3G/HD/SD-SDI Fiber Optic Converter Features

  • Supports SMPTE 3G, HD, and SD-SDI data rates

  • Fully handles all pathological test patterns for reliable broadcast performance

  • Automatic cable equalization to maintain optimal signal integrity

  • Integrated Remote control, Tally, Audio (Intercom), and Return Video functions

  • 10/100 Ethernet connectivity for versatile network integration

  • Automatic re-locking at 270 Mbit/s, 1.48 Gbit/s, and 3 Gbit/s

  • Compatible with SMPTE 424M, SMPTE 292M, SMPTE 259M standards and DVB-ASI formats

  • Direct compatibility with 3G/HD/SD-SDI camera systems and support for RS-232, RS-422, RS-485 data protocols

  • Transmission distance: up to 10+ km on single-mode fiber or 300 m on multi-mode fiber

  • Terminal block power input , supports hot swapping and hot plugging

  • Industrial-grade design with -10 °C to 75 °C operating temperature range for harsh environments

3G/HD/SD-SDI Fiber Optic Converter Technical Indexes


General Specifications

Work Temp

-10°C to +75°C

Storage Temp

-40°C to 85°C

humidity

0 ~ 95% (non-condensing)

Input power

DC5V 3A

Power consumption

15W

Net weight

4kg

Appearance size

172mm*167mm*45mm (LxWxH)

Optical Fiber

Wavelength

1310nm / 1550nm / CWDM

Output Power

-6~-1dBm

Rx sensitivity

<-18dBm

Transmission Distance

SM fiber 10+km , MM fiber 300m

Optical connector

Dal LC /FC/ST/SC/MX/ Lemo / Neutrino (optional)

SDI input/output

Signal format

SMPTE 424M, SMPTE 292M, SMPTE 259M

Data rate

270Mbit/s - 1.48Gbit/s - 3Gbit/s

Cable Equalization

Automatic cable EQ (Bel den 1694A cable)

250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

SDI interface

BNC 75 Ohm

Intercom

Camera Optic Adaptor

Interface

4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack

Microphone

Mic inputs with mute and pre-empt

Headphone

with volume up or down

Audio

Balance or unbalance line level

Tally

Camera Optic Adaptor


Interface

4pin air head or 3pin mini XLR

Output

Dry Contact Closure or wet +12V

On: short or +12V

Off: open or 0V

Remote Control

Interface

Terminal Block of Industrial Standard

Data

RS422 /RS232/RS485

Ethernet

Port

10/100 Base-T, RJ-45 connector

Work mode

Full duplex/half duplex

Data Rate

10 M bps & 100 M bps Ethernet (Auto Adaptive)


3G/HD/SD-SDI Fiber Optic Converter Application
