Mini HD-SDI over Fiber Extender

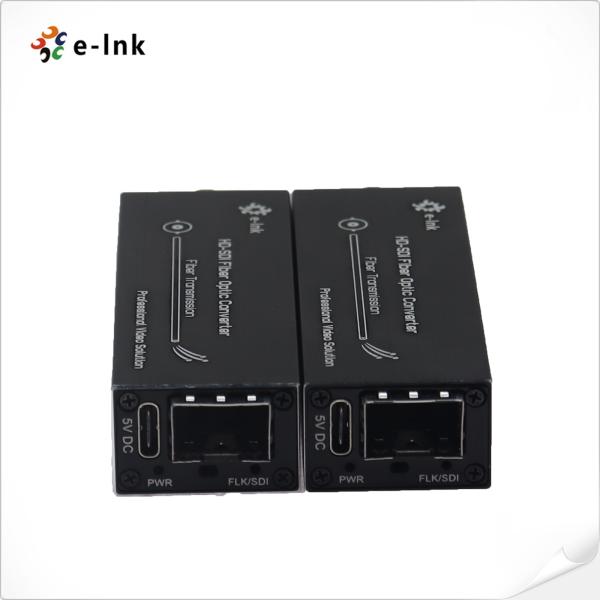

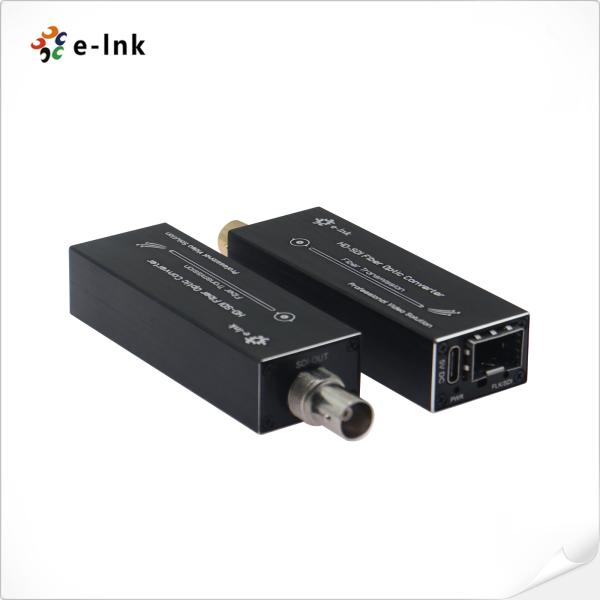

Mini HD-SDI over Fiber Extender Overview

The LNK-MHD Series Mini HD-SDI Fiber Extender facilitates high-quality transmission of

1-channel HD-SDI video (with embedded audio) over fiber optic cable, ensuring reliable long-distance

signal delivery. This compact and lightweight HD-SDI to fibre converter kit includes one transmitter

and one receiver, making it ideal for seamless integration into existing setups. This product is ideal

for surveillance systems, broadcast studios and professional AV installations.

It delivers low-latency, high-bandwidth and interference-free performance.

Mini HD-SDI over Fiber Extender Features

►Each channel supports 8-channel audio embedding to meet the needs of multi-audio signal transmission

►Automatic cable equalization ensures signal integrity over long distances

►Automatic reclocking function , supporting data rates from 270Mbit/s to 1.48Gbit/s

►Plug-and-play compatible with HD-SDI camera systems for easy installation

►Ultra-long transmission distance up to 80 kilometers , meeting the needs of long-distance transmission applications

►Terminal power input, supports hot plugging , easy maintenance and replacement

►Fully digital uncompressed broadcast-level transmission , lossless image and sound quality

►Ultra-wide optical dynamic range, no manual adjustment required , easy to use

►Support WDM/CWDM/DWDM fiber multiplexing technology to improve transmission efficiency

►Industrial-grade wide temperature design (-20℃~+70℃) to adapt to various harsh environment

Mini HD-SDI over Fiber Extender Technical Indexes

Mini HD-SDI over Fiber Extender Ordering Information

Mini HD-SDI over Fiber Extender Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
