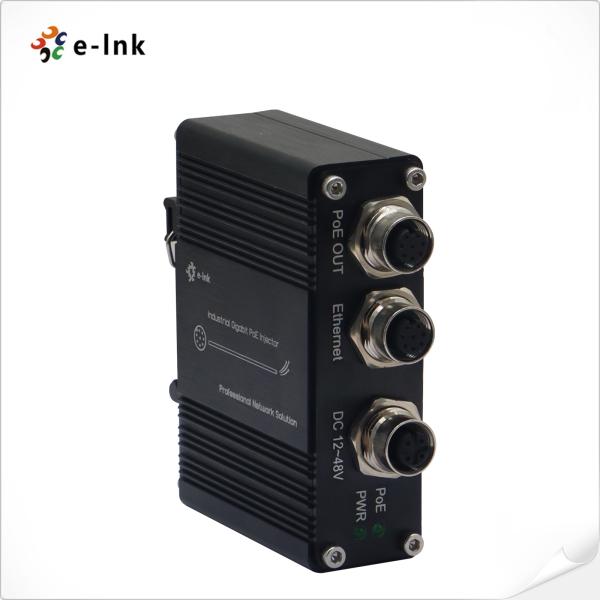

EN50155 Industrial 10/100/1000M/2.5G/5G/10G 30W PoE Injector with M12 connector

Industrial 30W PoE Injector Overview

The E-link EN50155 Compliant PoE Injector delivers high-performance industrial-grade power

for rolling stock, railway, and vehicle applications. This IEEE 802.3at-compliant device features

Intelligent Detection, ensuring safe power delivery only to valid PoE-enabled devices

(10/100/1000/2.5G/5G/10G Base-T(X)). Built for extreme environments, it boasts rugged M12 connectors

for vibration & shock resistance, complying with EN50155 standards. With a wide 12-48V DC input range,

it ensures high availability in mission-critical setups while protecting non-PoE devices from damage.

Industrial 30W PoE Injector Features

• 12~48V DC power input , adaptable to various power supply environments

• Fully compliant with IEEE 802.3af/at standards, supporting stable PoE power supply

• Supports 10/100/1000/2.5G/5G/10G Base-TX data and power transmission

• Compatible with DIN rail and wall mounting for flexible deployment

• Use Type-A M12 connector to ensure a firm and reliable connection

• Compact size : 95 × 70 × 30mm, weighs only 0.25KG

• Aluminum alloy housing , lightweight, excellent heat dissipation and durability

• Rich LED indicators for easy PoE status diagnosis

• Industrial-grade wide temperature design : -40°C ~ 80°C (-40°F ~ 176°F), suitable for harsh environments

Industrial 30W PoE Injector Technical Indexes

Industrial 30W PoE Injector Ordering Information

Industrial 30W PoE Injector Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing

product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
