EN50155 Industrial 10/100/1000M/2.5G/5G/10G 90W PoE Injector with M12 connector

Industrial 90W PoE Injector Overview

The E-link EN50155 Compliant PoE Injector is a high-performance industrial power solution designed

for demanding railway, rolling stock, and vehicle applications. This injector is compliant

with IEEE 802.3bt standards and features Intelligent Detection technology. It delivers

1-port 10/100/1000/2.5G/5G/10G Base-T(X) PoE++ output (up to 90W) while maintaining

full EN50155 compliance. Engineered for extreme environments, it utilises rugged M12 connectors

to ensure reliable performance under severe vibration and shock conditions. The smart power

activation system is designed to only energise when it detects valid PoE devices, thus protecting

connected equipment. The LNK-INJ601-90-M12 is a highly versatile device, offering a wide 12-48V DC

input range that ensures robust power delivery for mission-critical industrial networks.

Industrial 90W PoE Injector Features

• 12~48V DC power input , compatible with various industrial power supply environments
• Fully compliant with IEEE 802.3af/at/bt standards, supporting high-power PoE power supply
• Supports 10/100/1000/2.5G/5G/10G Base-TX data and power transmission

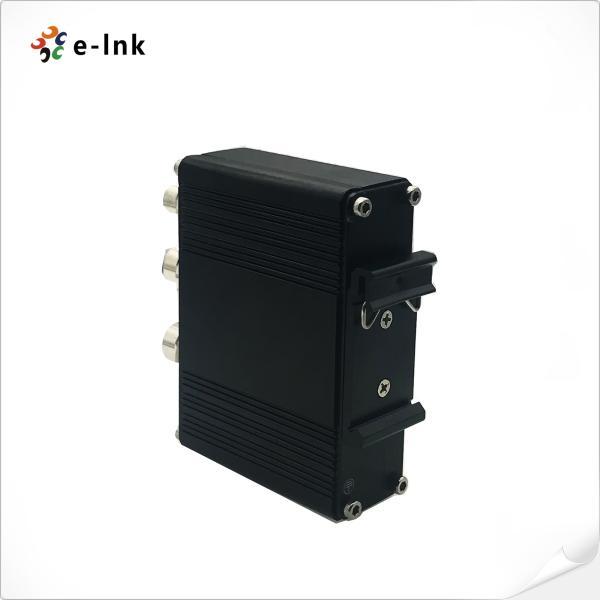

• Provides DIN rail and wall mounting options for flexible deployment

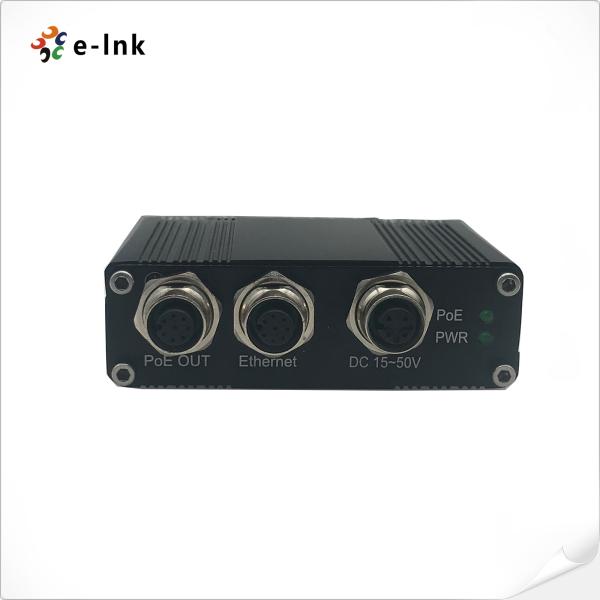

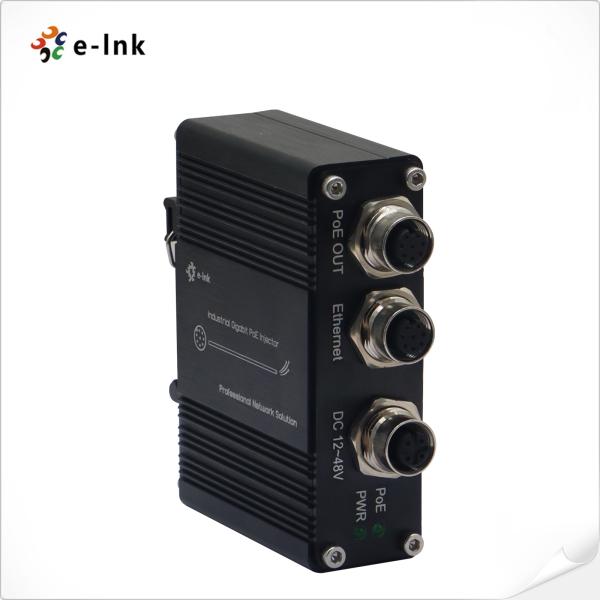

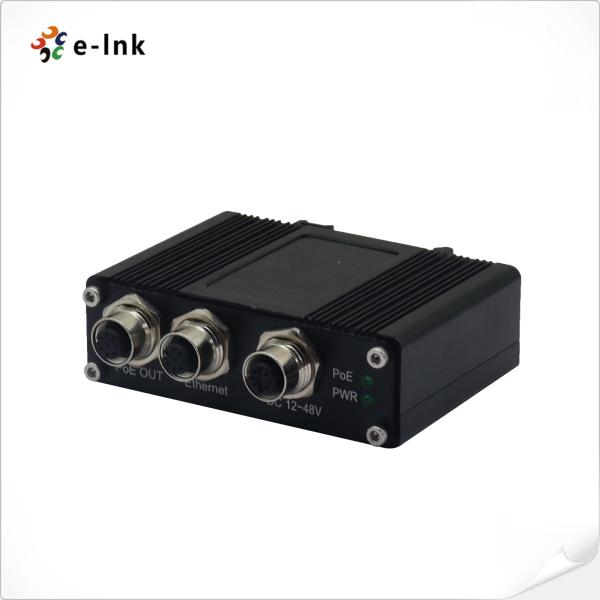

• Adopt Type-A M12 industrial connector to ensure tight connection, shockproof and dustproof
• Compact size : 95 × 70 × 30mm, weighs only 0.25KG
• Aluminum alloy shell , light and strong, with excellent heat dissipation performance
• Equipped with various LED indicators to facilitate PoE status monitoring and fault diagnosis
• Industrial-grade wide temperature design : -40°C ~ 80°C (-40°F ~ 176°F), suitable for harsh environments

Industrial 90W PoE Injector Technical Indexes

Industrial 90W PoE Injector Ordering Information

Industrial 90W PoE Injector Application
