Ethernet

Standards:

IEEE 802.3

10 Base-T

10 Base-FL

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3x Full duplex and flow control

Conversion Means:

Store and Forward mode or Cut-Through mode

Forward Filter Rate:

14,880pps (10Mbps)

Wavelength:

850nm

Buffer Space:

Built in 128Kb RAM for data buffer

Flow Control:

Full duplex: flow control;

Half duplex: back pressure

Cable Length:

50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL

100 meters max. for UTP

2000 meters max. for fiber optic Multi-mode

Transmission type:

Base band

Connection switch:

2-position 10Base-T switch on RJ-45 side (hub or W/S)

Interface

Connector:

1x RJ45 10Base-T

Optical Port:

1 x ST 10Base-FL

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

5W Max.

LED Indicators:

PWR:

Power Status

ACT:

Data LINK Status

TP:

Ethernet Status

FL:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Model

Description

LNK-IMC10FST-MM

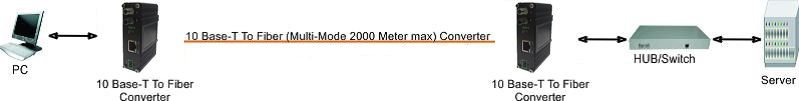

Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
