High-Power Industrial 10G PoE Media Converter RJ45 to SFP+ 65W -40~80°C
High-Power Industrial 10G PoE Media Converter RJ45 to SFP+ 65W -40~80°C
High-Power Industrial 10G PoE Media Converter RJ45 to SFP+ 65W -40~80°C
High-Power Industrial 10G PoE Media Converter RJ45 to SFP+ 65W -40~80°C
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC10GP60-SFP+
Certification :
CE, FCC, RoHS, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$109-$129
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
3-9working days
Packaging Details :
PoE Fiber Media Converter Standard Export Package
Type :
High-Power Industrial PoE Media Converter
Network Speeds :
100M/1G/2.5G/5G/10G
Fiber Port :
1 × 10G SFP+ slot
Copper Port :
1 × RJ45 (Auto MDI/MDI-X)
Operating Temperature :
-40°C to 80°C
Housing :
IP40 aluminum case
Description

High-Power Industrial 10G PoE Media Converter RJ45 to SFP+ 65W -40~80°C

Overview

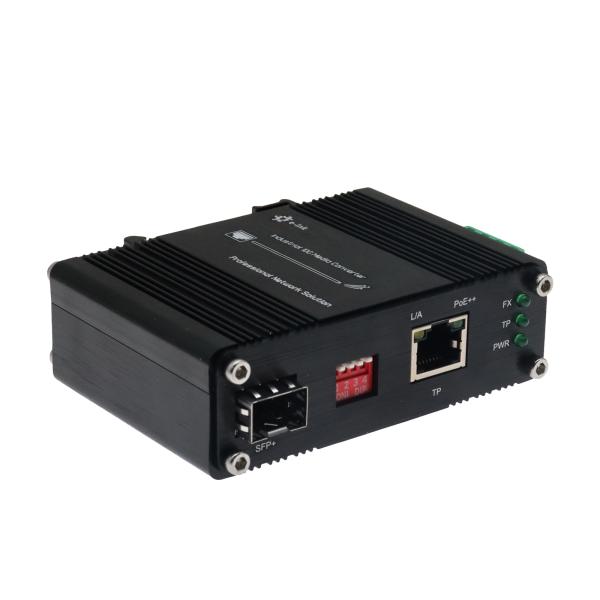

The LNK-IMC10GP60-SFP+ is a high-power industrial 10G PoE media converter designed

for demanding applications requiring up to 65W PoE output per port. Featuring one

multi-speed RJ45 port (100M/1G/2.5G/5G/10G) and one 10G SFP+ fiber slot, it ensures

seamless copper-to-fiber conversion at wire-speed performance. Built with rugged IP40

aluminum housing, wide temperature tolerance (-40°C to 80°C), and redundant 48~57VDC

power input, it is ideal for powering high-consumption devices such as PTZ cameras,

wireless access points, and industrial automation systems—offering more power headroom

than standard 30W models.

Features

High-Power PoE — Up to 65W IEEE 802.3af/at output for high-consumption devices

Multi-Gigabit Speeds — Supports 100M/1G/2.5G/5G/10G RJ45 to 10G SFP+ conversion

Industrial Design — IP40 rugged aluminum housing, -40°C to 80°C wide temperature

Reliable Power — Redundant 48~57VDC terminal block input for continuous operation

Flexible Installation — DIN-Rail and wall-mount options included

Wire-Speed Performance — 20Gbps switching fabric with jumbo frame support

Technical Indexes

Ethernet

PoE Standard

IEEE802.3af/at

Forward & Filtering Rate:

100Mbps

1000Mbps

2.5Gbps

5Gbps

10Gbps

Network Cables:

10G/5G/2.5G/1G/100M BASE-T:

　10G – Cat 6A/7

　5G – Cat 6/6A/7

　1G/2.5G – Cat 5e/6/6A/7

100M – Cat 5/5e/6/6A/7

　Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)

　EIA/TIA-568 100-ohm STP (100 meters, max.)

10GBASE-LR/SR/BX:

　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m

　9/125μm single-mode fiber optic cable, up to 80km

Processing Type:

Store-and-Forward

Fabric:

20Gbps

Jumbo Frame:

16K

Address Table:

9K entries, automatic source address learning and aging

Interface

Connector:

1 x RJ45

Optical Port:

1 x SFP+

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (4-pin Terminal Block)

Power Consumption:

65W Max

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

Reserved

ON - Reserved

OFF - Reserved

SW 2

Reserved

ON - Reserved

OFF - Reserved

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

Note: DIP Switch’s function can be customized based on client’s requirements.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail/Wall-mount

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC10GP60-SFP+

Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter

SFP Options

► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).

► SFP+ module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately.

Application

High-Power Industrial 10G PoE Media Converter RJ45 to SFP+ 65W -40~80°C
