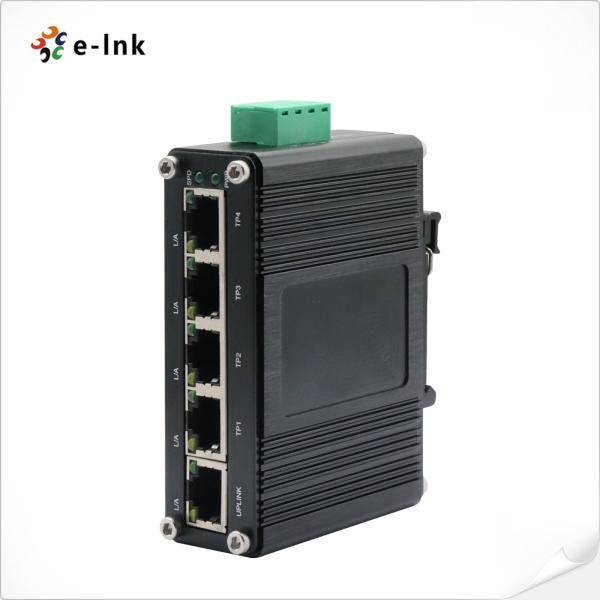

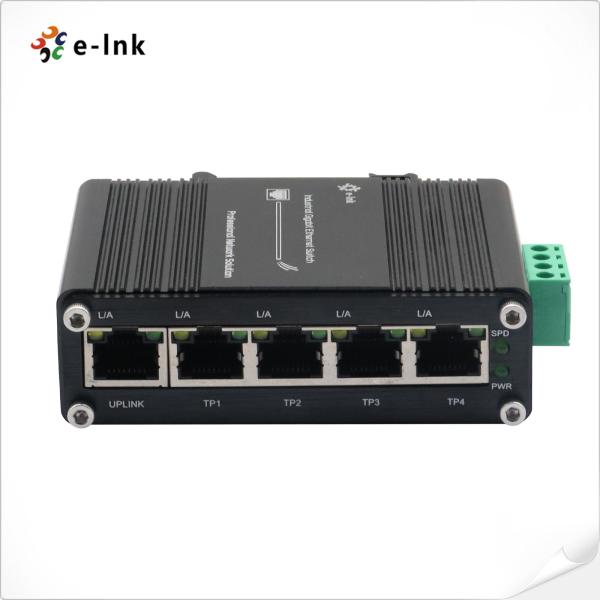

Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40
Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40
Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40
Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC005G
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
US$19.9/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Industrial Switch Standard Export Package
Forward & Filtering Rate: :
14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)
Connector :
5 x 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Packet Buffer :
1Mbits
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Input Power :
12~48VDC (Terminal Block)
Power Consumption :
<6W (PoE In Use: <125W)
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Description

Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40

Overview

The LNK-IMC005G Series is a rugged 5-port industrial gigabit Ethernet switch designed for harsh

environments. With 12–48VDC wide power input, IP40-rated metal housing, and an extended operating

temperature range of -40°C to 80°C, it delivers reliable, high-speed connectivity in critical applications.

Its compact design supports DIN-rail or wall mounting, making it an ideal cost-effective solution for

industrial networking.

Features

5× 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X

12–48VDC wide-range redundant power input

Optional IEEE 802.3af/at PoE support

Compact, IP40-rated rugged aluminum housing

Operating temperature from -40°C to 80°C

Supports IEEE 802.3az Energy-Efficient Ethernet

DIN-rail and wall-mount installation options

Non-blocking 10Gbps switching fabric

Low power consumption <6W (125W with PoE)

Compliance with CE/FCC/EMC industrial standards

Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af/at Optional
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps
Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W (PoE In Use: <125W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR Power
L/A Link/Activity
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description
LNK-IMC005G Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately

Application
