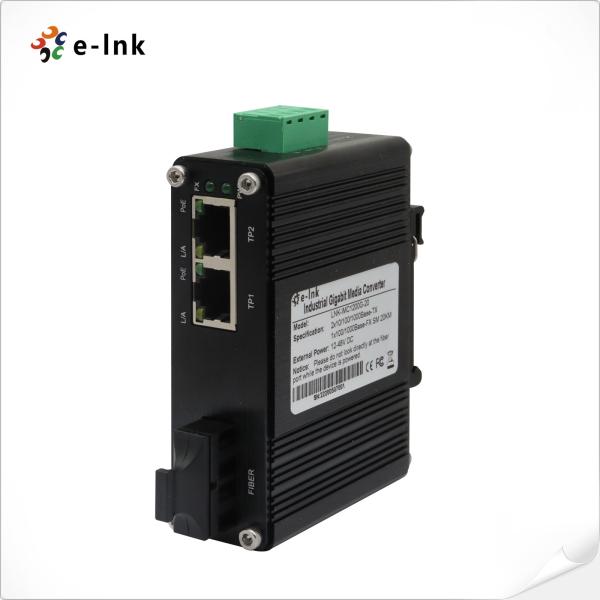

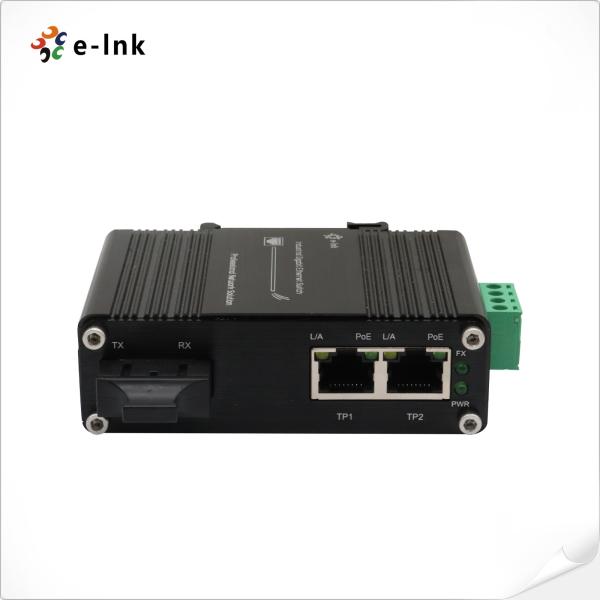

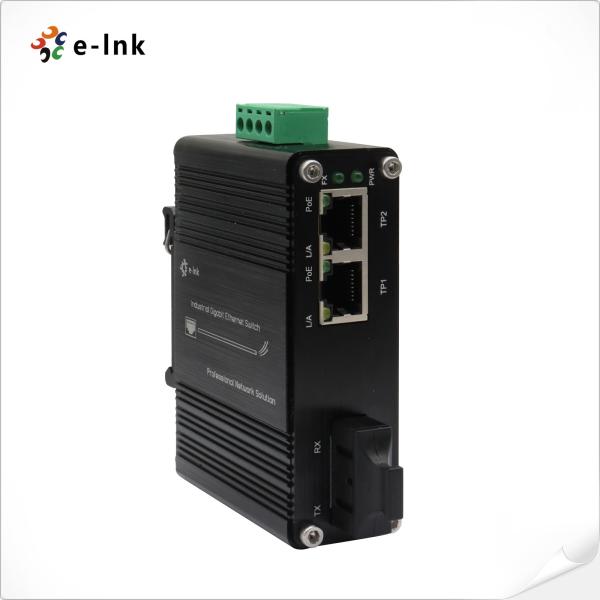

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP90
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Standard Export Package
Connector :
2 x RJ45
Optical Port :
1 x SC 1000Base-X
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Input Power :
48~57VDC, 2-pin terminal block
Power Consumption :
185W Max
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Description

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000X 90W PoE++ Media Converter

Industrial Ethernet Switch Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1- Port 1000Base-X SC

► Supports IEEE802.3af/at PoE (30W) or IEEE802.3bt PoE++(90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail & Wall-mount installation

Industrial Ethernet Switch Technical Indexes

Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 1 Mbit
Max Packet Length: 9K Bytes
Address Table Size 2K MAC Addresses
Electrical and Mechanical
Input Power: 48~57VDC, 2-pin terminal block
Output Power 48VDC
Power Consumption: 185W Max.
LED Indicators:
PWR: Power Status
L/A: Data LINK Status
POE: PoE Status
100M/1000M: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs

Industrial Ethernet Switch Overview

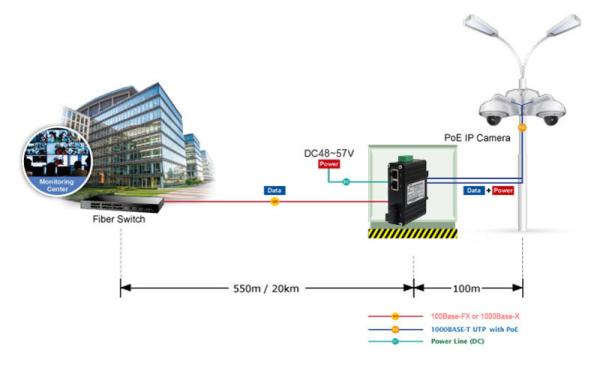

The LNK-IMC1200GP90 Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. This product is hardened, featuring a wide operating temperature range of -40°C to 75°C and a ruggedized aluminum housing. The Ethernet port is compatible with both half-duplex and full-duplex modes. Its rugged hardware design guarantees that your Ethernet equipment can endure challenging industrial environments. The LNK-IMC1200GP90 Series is easy to mount on a DIN rail or in distribution boxes.

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000Base-T 90W PoE++ Media Converter
Ordering Information

Model Description
LNK-IMC1200GP90 Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC1200GP90-20 Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200GP90S-20 Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
