8-Ch 3G-SDI + 10G Ethernet Fiber Extender Broadcast-Grade Transmission
8-Ch 3G-SDI + 10G Ethernet Fiber Extender Broadcast-Grade Transmission
8-Ch 3G-SDI + 10G Ethernet Fiber Extender Broadcast-Grade Transmission
8-Ch 3G-SDI + 10G Ethernet Fiber Extender Broadcast-Grade Transmission
Specifications
Brand Name :
E-link
Model Number :
LNK-3G8V10GE 3G-SD
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pair
Price :
$1399-$1899
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
SDI Over Fiber Optic Extender Standard Export Package
Fiber interface :
Simplex LC
Transmission distance :
20Km
Wavelength :
1310nm/1550nm
Operating Temperature :
-20℃～+70℃
Dimensions (WxDxH) :
483 x 270 x 45mm (19inch 1U)
Weight :
8KG/pair
Description

8-Ch 3G-SDI + 10G Ethernet Fiber Extender Broadcast-Grade Transmission

Overview

The LNK-3G8V10GE is a professional-grade fiber extender that integrates 8 channels of 3G-SDI/ASI

video with embedded audio and one 10G Ethernet link over a single optical fiber. Designed for

broadcasting, surveillance, and live production, it delivers real-time uncompressed HD video and

high-speed data with excellent stability. With built-in CWDM technology, automatic cable equalization,

and long-distance optical transmission up to 20km (optional 40/60/80km), this solution ensures

unmatched reliability in demanding environments.

Features

8x 3G-SDI/ASI + 1x 10G Ethernet over one single-mode fiber

Supports SD-SDI, HD-SDI, 3G-SDI, DVB-ASI standards

Uncompressed video with SMPTE 424M/292M/259M/297M compliance

10GBASE-T Ethernet compatible with 100M/1G/2.5G/5G standards

Integrated CWDM multiplexer with hot-swappable SFP modules

LED indicators for power, SDI channels, Ethernet link & activity

Rackmount 1U design, compact, metal housing, low power consumption

Transmission up to 20km (expandable to 40/60/80km)

Operating temperature: -20℃ to +70℃, high MTBF ≥100,000 hours

Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Video Input 8 Channel with Loop Out on TX
Video Output 8 Channel with Loop Out on RX
Ethernet
Standards

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3bz 2.5G/5GBASE-T

IEEE 802.3an 10GBASE-T

IEEE 802.3ae 10Gbps Ethernet

IEEE 802.3x full-duplex flow control
Interface 1 x 10G/5G/2.5G/1G/100BASE-T RJ45
Working mode Auto-negotiation by default
Electrical
Power Input 100VAC to 220VAC
Power consumption <12W
LED Indicator
PWR Power Supply
SDI 1~8 3G-SDI Signal
ACT RJ45 Ethernet Signal
LINK Link Status
Mechanical
Dimensions (LxWxH) 483 x 270 x 45mm (19inch 1U)
Weight 8KG/pair
Casing Metal Case
Mounting Options Rack-mount
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

Ordering Information

Model Description
LNK-3G8V10GE 8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

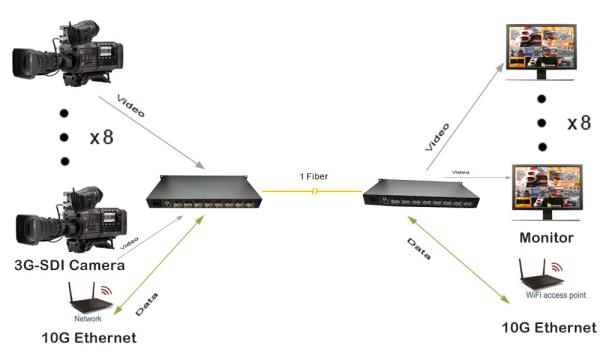

Application

8-Ch 3G-SDI + 10G Ethernet Fiber Extender Broadcast-Grade Transmission
