8-Port PoE Switch + 6-Ch Forward 2-Ch Return 3G-SDI Fiber Extender
8-Port PoE Switch + 6-Ch Forward 2-Ch Return 3G-SDI Fiber Extender
8-Port PoE Switch + 6-Ch Forward 2-Ch Return 3G-SDI Fiber Extender
8-Port PoE Switch + 6-Ch Forward 2-Ch Return 3G-SDI Fiber Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-3GSDI-6FV2BV8GP
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1 pair
Price :
$3900-$4199
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
SDI Over Fiber Optic Extender Standard Export Package
Fiber interface :
Simplex LC
Transmission distance :
20Km
Wavelength :
1310nm/1550nm
Operating Temperature :
-20℃～+70℃
Size :
19” 2U Rack
Weight :
11.5KG/pair
Description

8-Port PoE Switch + 6-Ch Forward 2-Ch Return 3G-SDI Fiber Extender

Overview

The LNK-3GSDI-6FV2BV8GP is a professional fiber optic extender integrating 8 Gigabit PoE ports

with 6 forward 3G-SDI and 2 return 3G-SDI channels over a single optical fiber. Designed for

broadcast studios, surveillance networks, and live production, it delivers uncompressed SDI

video (SD/HD/3G-SDI) with embedded audio, while simultaneously powering IP cameras or other

devices via IEEE 802.3af/at PoE. Featuring built-in CWDM multiplexing, rackmount 2U form factor,

and 20km optical transmission distance, it provides a scalable and secure transmission solution

where reliability is critical.

Features

8x Gigabit PoE (IEEE 802.3af/at) for powering IP cameras & devices

6 forward + 2 return 3G-SDI channels over single-mode fiber

Supports SD-SDI, HD-SDI, 3G-SDI, DVB-ASI up to 2.97Gbps

Compliant with SMPTE 424M/292M/259M/297M video standards

Integrated CWDM multiplexer, hot-swappable SFP modules

Automatic SDI signal equalization & reclocking for stability

2U rackmount design with industrial-grade metal housing

Transmission distance up to 20km (optional longer reach)

Wide operating temperature -20℃~+70℃, MTBF ≥100,000 hours

Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Video Input 6 Channel 3G-SDI
Video Output 2 Channel 3G-SDI
Ethernet
Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X
Power over Ethernet

IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA

IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA

Power Pin Assignment: 4/5(+), 7/8(-)
Date Rate 10/100/1000Mpbs
Connector 8 x RJ45
Max. Power per Port RJ45 Port 1 ~ Port 8 (30W Max per port)
Electrical
Power Input 200VAC to 240VAC
Power consumption <15W
LED Indicator
PWR Power Supply
SDI 1~8 3G-SDI Signal
ACT RJ45 Ethernet Signal
LINK Link Status
Mechanical
Size 19” 2U Rack
Weight 11.5KG/pair
Casing Metal Case
Mounting Options Rack-mount
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%

Ordering Information

Model Description
LNK-3GSDI-6FV2BV8GP 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender, Single Mode, Singel Fiber, 20KM, 19” 2U rack mount

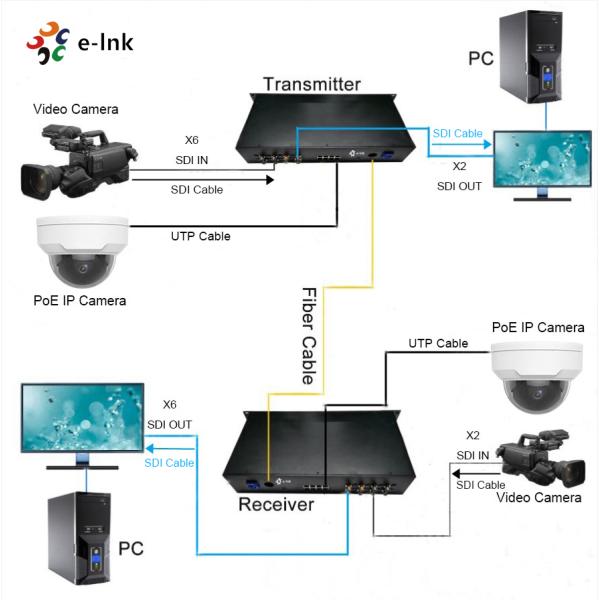

Application

8-Port PoE Switch + 6-Ch Forward 2-Ch Return 3G-SDI Fiber Extender
