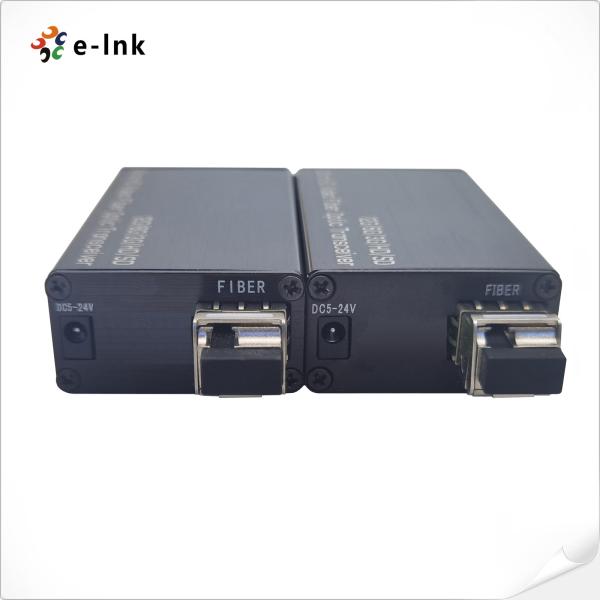

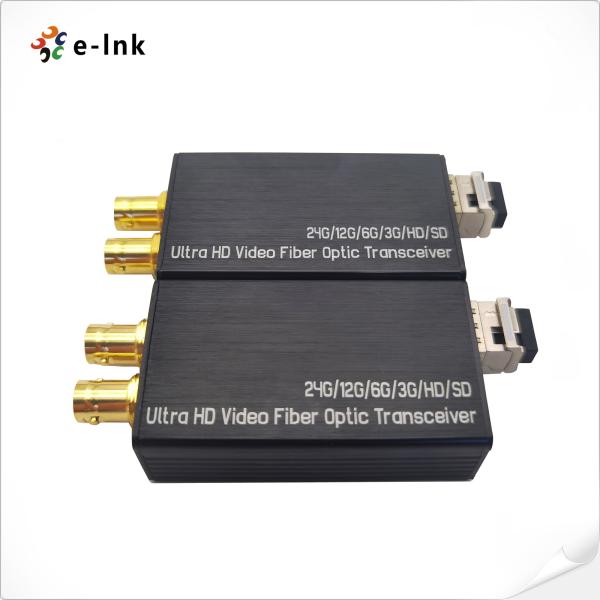

Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-M12G-1V1
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Standard Export Package
Compatible :
Compatible With DVB-ASI and AES10 (MADI)
Fiber :
11.88Gbps SMF 20KM
Optical transmission bandwidth :
270MHz～12GHz
Operating Temperature :
-40℃～85℃
Dimensions (LxWxH) :
80 x 40 x 20 (mm)
Power :
5-15 VDC
Description

Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter

SDI Fiber Extender Advantages

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 M bps

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

► Terminal block power input for industrial application

► Supports hot swapping and hot plugging

SDI Fiber Extender Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible With D VB-AS I and AES10 (MADI)
Transmitter 1 x 12G-SDI on BNC
1 x 12G-SDI on BNC(反向)
Receiver 1 x 12G-SDI on BNC
1 x 12G-SDI on BNC(反向)
Fiber 11.88Gbps SMF 20KM
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤70m@12G SDI Belden 1694A
Optical transmission bandwidth 270MHz～12GHz
Power 5-15 VDC
Power Consumption 2 W (Max.)
Dimensions (LxWxH) 80 x 40 x 20 (mm)
Storage Temperature -40℃～80℃
Operating Temperature -40℃～85℃

Industrial Ethernet Media Converter Overview

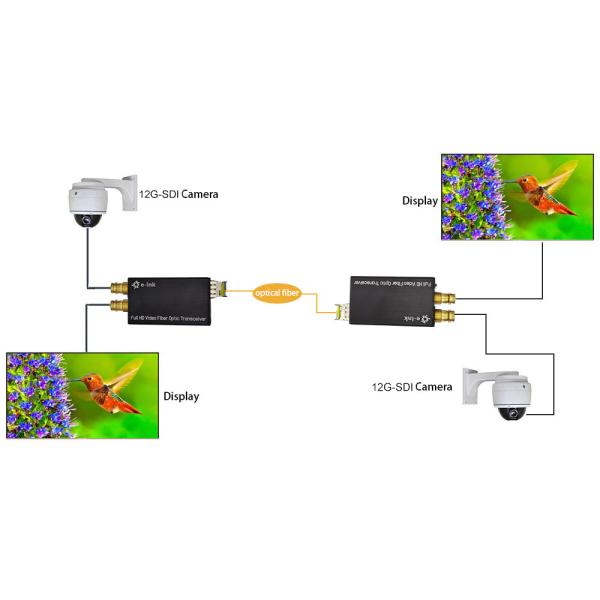

LNK-M12G-1V1 Series Mini-type 12G-SDI Fiber Converter supports 1-channel 12G Video (audio embedded) & Tally signal(or Backward RS485) transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

Mini 1Ch Forward + 1Ch Backward 12G-SDI to Fiber Converter

Ordering Information

Model Description
LNK-M12G-1V1T-20 Mini-type 12G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M12G-1V1R-20 Mini-type 12G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
