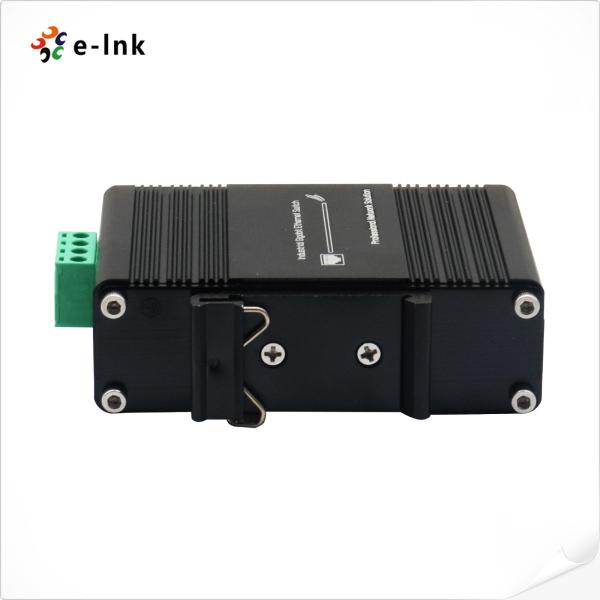

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 30W PoE+ Media Converter

Mini Industrial 30W Media Converter Overview

The LNK-IMC1200GP-SFP is an industrial-grade, DIN rail media converter designed for robust

and flexible network deployment in harsh environments. It seamlessly converts between Gigabit

copper Ethernet (10/100/1000Base-T) and fibre optic (100/1000Base-X) connections,

while simultaneously delivering up to 30W of IEEE 802.3at Power over Ethernet+ (PoE+) power

to connected devices such as wireless access points, IP cameras

and Voice over Internet Protocol (VoIP) phones.

Engineered for reliable performance in extreme temperatures ranging from -40°C to +75°C,

this hardened converter ensures uninterrupted network functionality in challenging industrial,

outdoor, and automation environments. Its key value lies in solving three critical challenges:

extending network reach via flexible SFP fiber modules, providing remote power to edge devices

over a single cable, and guaranteeing stability in electrically noisy and climatically

challenging conditions. The device complies with the EN55022 standard for electromagnetic

compatibility, ensuring reliability and compliance for professional installations.

Mini Industrial 30W Media Converter Features

► 2 × 10/100/1000BASE-T RJ45 Ports with auto MDI/MDI-X support

► 1 × SFP Port with dual-mode auto detection (100Base-FX / 1000Base-X)

► PoE Support: IEEE 802.3af (15.4W) and IEEE 802.3at PoE+ (30W) compliant

► Supports Full/Half-duplex and Auto-negotiation for reliable data transmission

► Energy Efficient Design compliant with IEEE 802.3az (EEE)

► Wide Power Input Range: 12~48VDC terminal block

► Flexible Mounting Options: DIN-Rail and Wall-mount supported

► Rugged Design with operating temperature range of -40°C to 75°C (-40°F to 167°F)

Mini Industrial 30W Media Converter Technical Indexes

Mini Industrial 30W Media Converter Ordering Information

Mini Industrial 30W Media Converter Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
