Specifications
Brand Name :
E-link
Model Number :
LNK-IMC208
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$90-$129
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Fiber Optic Switch Standard Export Package
Ports :
8 × 10/100Base-TX RJ45, 2 × 100Base-FX Fiber (SFP/SC/FC/ST optional)
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Input Power :
12~58VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH) :
150 x 115 x50 mm
Casing :
Aluminum Case
Mounting Options :
DIN-Rail / Wall-mount
Description

Industrial 8-Port 10/100Base-T + 2-Port 100BASE-FX Hardened Ethernet Switch

Overview

LNK-IMC208 Series is an 8-port 10/100Base-TX + 2-port 100Base-FX hardened Ethernet

switch designed for industrial environments. Featuring reliable RJ45 and fiber ports, wide

operating temperature range, and redundant power inputs, it ensures stable data

transmission for IP cameras, wireless access points, and other network devices in harsh

conditions. Ideal for industrial and outdoor network deployments.

Features

8 × 10/100Base-TX ports with auto-negotiation, Full/Half-duplex, Auto MDI/MDIX

2 × 100Base-FX fiber ports, SFP, SC, FC, ST optional

Supports IEEE 802.3x Flow Control and IEEE 802.3az Energy Efficient Ethernet (EEE)

Redundant power inputs for reliable operation

Wall-mount and DIN-Rail installation

Hardened design with -40°C to 80°C operating temperature

Automatic resettable overload protection and reverse polarity protection

LED indicators for power, link/activity, and fiber status

Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3x Flow Control

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

Packet Buffer Memory:

512K bits

Processing Type:

Store-and-Forward

Address Table Size:

1024 MAC Addresses

Interface

Connector:

8 x RJ45

Optical Port:

2 x 100Base-FX (SFP, SC, FC, ST Optional)

Ethernet Port

RJ45 Port 1 ~ Port 8

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~58VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

Ethernet (Per Port):

Link/Activity

Fiber:

FX1, FX2

Dimensions (WxDxH):

150 x 115 x50 mm

Weight:

0.6Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC208

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM

LNK-IMC208-20

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC208S-20

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC208F-20

Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC208-SFP

Industrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.

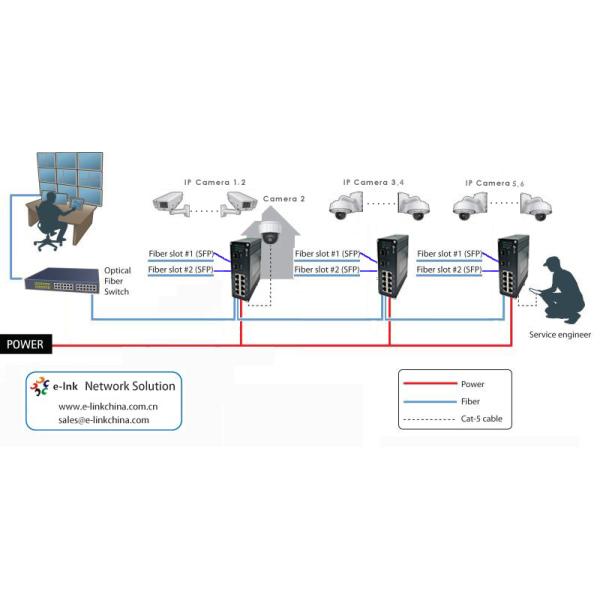

Application

Industrial 8-Port 10/100Base-T + 2-Port 100BASE-FX Hardened Ethernet Switch
