Industrial 8-Port Gigabit Ethernet Switch + 1-Port 1000Base-X Fiber -40~80°C
Industrial 8-Port Gigabit Ethernet Switch + 1-Port 1000Base-X Fiber -40~80°C
Industrial 8-Port Gigabit Ethernet Switch + 1-Port 1000Base-X Fiber -40~80°C
Industrial 8-Port Gigabit Ethernet Switch + 1-Port 1000Base-X Fiber -40~80°C
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC108G
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$105-$135
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Fiber Optic Switch Standard Export Package
Ethernet Ports :
8 × 10/100/1000Base-T (RJ45)
Fiber Port :
1 × 1000Base-X (SFP/SC/FC/ST optional)
Power Input :
12~58VDC redundant (6-pin terminal block)
Operating Temp :
-40°C ~ 80°C
Dimensions :
150 × 115 × 50 mm
Weight :
0.6 kg
Description

Industrial 8-Port Gigabit Ethernet Switch + 1-Port 1000Base-X Fiber -40~80°C

Overview

The LNK-IMC108G is a rugged 8-Port 10/100/1000Base-T + 1-Port 1000Base-X industrial

Ethernet switch designed for high-performance networking in demanding environments.

With support for Gigabit fiber uplink, redundant 12~58VDC power inputs, and a wide -40°C

to 80°C operating temperature range, this switch ensures reliable data transmission for

mission-critical applications. Its compact aluminum housing, DIN-Rail and wall-mount

options, and compliance with industrial EMC standards make it an excellent choice for IP

surveillance, industrial automation, and remote connectivity.

Features

8× Gigabit RJ45 + 1× 1000Base-X fiber port (SFP/SC/FC/ST optional)

Supports auto MDI/MDIX, auto-negotiation, Full/Half-duplex

Jumbo frame support up to 9K bytes for large data transmission

High performance switching: 2.75M buffer, 4K MAC table

Redundant 12~58VDC power inputs with overload & reverse polarity protection

Wide operating temperature: -40°C to 80°C, MTBF >200,000 hrs

Low power consumption: max. 5W

Energy Efficient Ethernet (EEE) & IEEE 802.3x flow control

Industrial-grade aluminum case with DIN-Rail & wall-mount installation

EMC & Safety compliance: EN55022, EN55024, IEC 61000-4 series

Technical indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3x Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

2.75M bits

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

4K MAC Addresses

Interface

Connector:

8 x RJ45

Optical Port:

1 x 1000Base-X (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~58VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

Ethernet (Per Port):

Link/Activity

Fiber:

FX1

Dimensions (WxDxH):

150 x 115 x 50 mm

Weight:

0.6Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC108G

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC108G-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC108GS-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC108GF-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC108G-SFP

Industrial 8-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.

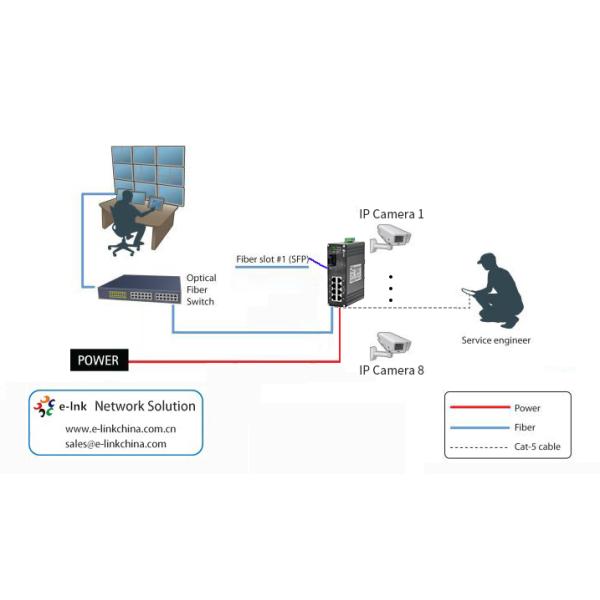

Application
