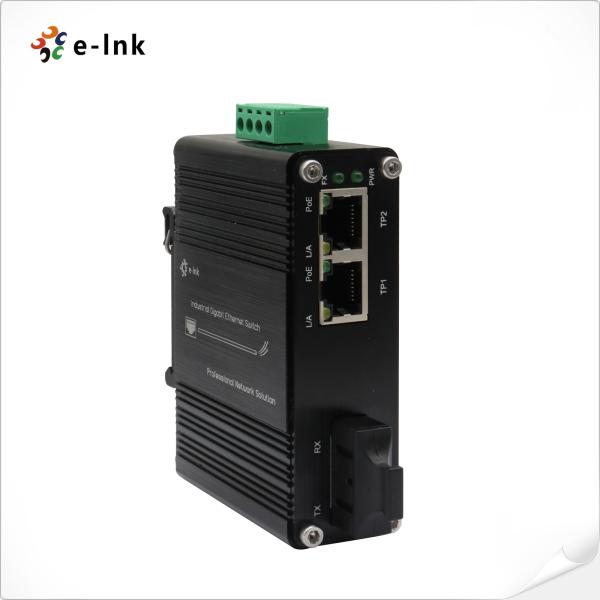

Mini Industrial 1000X to 2xGigabit PoE++ Media Converter 90W -40~75°C
Mini Industrial 1000X to 2xGigabit PoE++ Media Converter 90W -40~75°C
Mini Industrial 1000X to 2xGigabit PoE++ Media Converter 90W -40~75°C
Mini Industrial 1000X to 2xGigabit PoE++ Media Converter 90W -40~75°C
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP90
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$99-$119
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
PoE Fiber Media Converter Standard Export Package
Data Rate :
10/100/1000Mbps
Fiber Port :
1 x SC 1000Base-X
Ethernet Port :
2 x RJ45 10/100/1000Base-T (auto MDI/MDI-X)
PoE Output :
IEEE802.3bt PoE++ 90W / IEEE802.3at 30W / IEEE802.3af 15.4W
Power Consumption :
Max. 185W
Installation :
DIN-Rail / Wall-mount
Description

Mini Industrial 1000X to 2xGigabit PoE++ Media Converter 90W -40~75°C

Overview

The LNK-IMC1200GP90 Series is a rugged industrial-grade media converter designed to

connect 1-Port 1000Base-X fiber with 2-Port 10/100/1000Base-T Ethernet. Featuring

IEEE802.3bt PoE++ up to 90W per port, it is ideal for powering high-demand devices like

PTZ cameras, wireless APs, and industrial IoT terminals. With a wide -40°C to 75°C

operating range, hardened aluminum casing, and flexible DIN-rail or wall-mount

installation, it ensures reliable performance in harsh environments.

Features

Converts 1 x 1000Base-X SC fiber to 2 x 10/100/1000Base-T Ethernet ports

IEEE802.3bt PoE++ up to 90W per port, compatible with PoE/PoE+ standards

Gigabit Ethernet with store-and-forward switching and jumbo frame support

Wide operating temperature range: -40°C to 75°C

Rugged aluminum housing for industrial environments

DIN-Rail or wall-mount installation options

Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 1000Base-X

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

185W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC1200GP90

Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m

LNK-IMC1200GP90-20

Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km

LNK-IMC1200GP90S-20

Mini Industrial 90W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

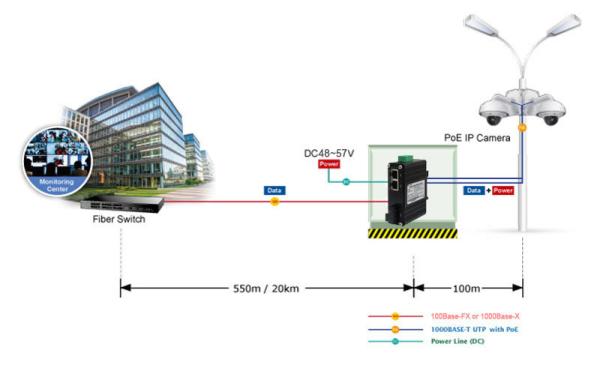

Application
