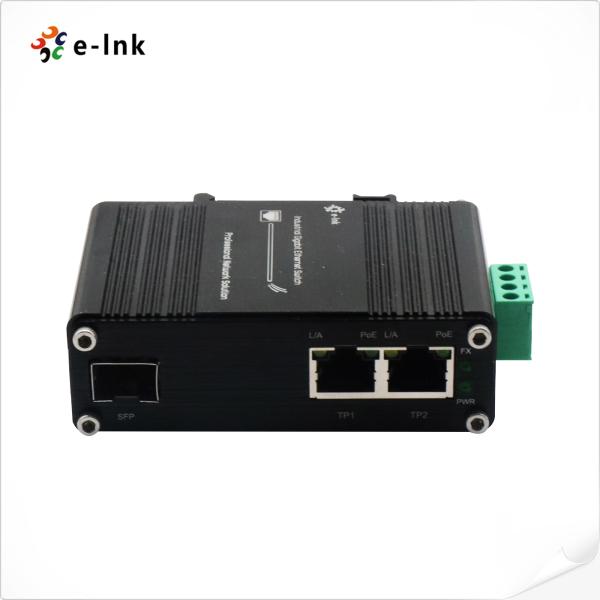

Mini Industrial SFP to 2xGigabit PoE++ Media Converter 90W -40~75°C
Mini Industrial SFP to 2xGigabit PoE++ Media Converter 90W -40~75°C
Mini Industrial SFP to 2xGigabit PoE++ Media Converter 90W -40~75°C
Mini Industrial SFP to 2xGigabit PoE++ Media Converter 90W -40~75°C
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP90-SFP
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$95-$109
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
PoE Fiber Media Converter Standard Export Package
Fiber Port :
1 x SFP 1000Base-X or 100Base-FX (auto-detection)
Ethernet Ports :
2 x RJ45 10/100/1000Base-T (auto MDI/MDI-X)
PoE Output :
Up to 90W over 4-pairs (IEEE802.3af/at/bt compliant)
Input Power :
48~57VDC, 4-pin terminal block
Power Consumption :
Max 185W
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Description

Mini Industrial SFP to 2xGigabit PoE++ Media Converter 90W -40~75°C

Overview

The LNK-IMC1200GP90-SFP is a rugged industrial media converter featuring 1 SFP port

(100/1000Base-X auto-detection) and 2 x 10/100/1000Base-T Ethernet ports with up to

90W PoE++ per port. Designed for harsh industrial environments, it supports full/half-duplex,

jumbo frames, and Energy Efficient Ethernet (IEEE 802.3az). Its durable aluminum housing

allows DIN-rail or wall-mount installation and reliable operation from -40°C to 75°C. Users

can deploy various single-mode or multi-mode fiber SFP modules as needed, ideal for

high-power industrial devices such as cameras, APs, and terminals.

Features

1 x SFP port (100/1000Base-X, auto-detection) to 2 x 10/100/1000BASE-T

Supports IEEE802.3af/at PoE (15.4W/30W) and IEEE802.3bt PoE++ (90W)

Full/half-duplex with auto-negotiation and auto MDI/MDI-X

Jumbo frame support up to 9K Bytes

Energy Efficient Ethernet (IEEE 802.3az)

Hardened aluminum housing for industrial-grade durability

Wide operating temperature: -40°C to 75°C

DIN-rail or wall-mount installation

Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

48~57VDC, 4-pin terminal block

Power Consumption:

185W Max.

LED Indicators:

PWR:

Power Status

PoE:

PD Plug Status

RJ45:

LINK/Activity

SFP:

LINK

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC1200GP90-SFP

Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

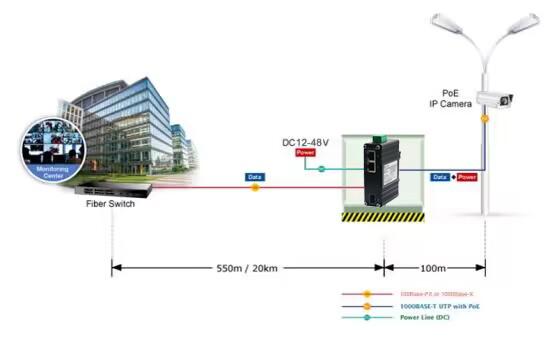

Application

Mini Industrial SFP to 2xGigabit PoE++ Media Converter 90W -40~75°C
