Mini Industrial SFP to 2xGigabit PoE+ Media Converter 30W -40~75°C
Mini Industrial SFP to 2xGigabit PoE+ Media Converter 30W -40~75°C
Mini Industrial SFP to 2xGigabit PoE+ Media Converter 30W -40~75°C
Mini Industrial SFP to 2xGigabit PoE+ Media Converter 30W -40~75°C
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP-SFP
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$69-$85
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
PoE Fiber Media Converter Standard Export Package
Data Rate :
10/100/1000Mbps
Fiber Port :
1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE Output :
IEEE802.3af 15.4W / IEEE802.3at 30W
Input Power :
12~48VDC, 4-pin terminal block
Power Consumption :
Max 65W
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Description

Mini Industrial SFP to 2xGigabit PoE+ Media Converter 30W -40~75°C

Overview

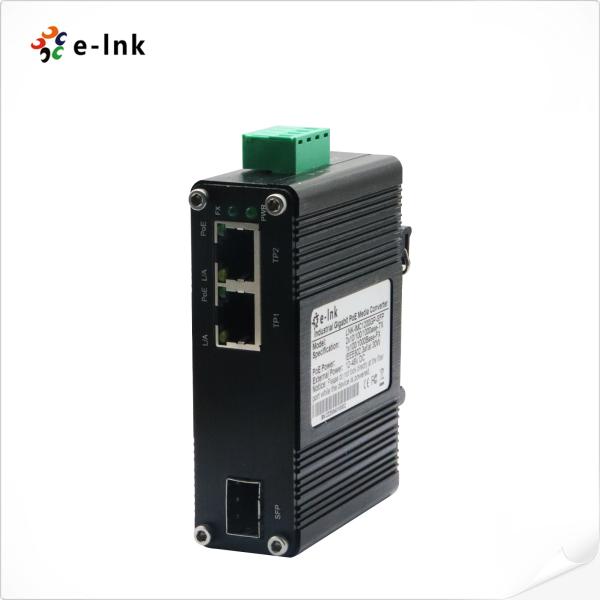

The LNK-IMC1200GP-SFP is a rugged industrial-grade media converter featuring 1 SFP

port (100/1000Base-X auto-detection) and 2 x 10/100/1000Base-T Ethernet ports with PoE+

up to 30W. Designed for harsh industrial environments, it supports full/half-duplex,

store-and-forward switching, jumbo frames, and Energy Efficient Ethernet (IEEE 802.3az).

Its DIN-rail/wall-mountable aluminum housing ensures reliable operation from -40°C to 75°C,

allowing flexible deployment with single-mode or multi-mode fiber SFP modules.

Features

1 x SFP port (100/1000Base-X, auto detection) to 2 x 10/100/1000BASE-T

Supports IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+ (30W)

Full/half-duplex with auto-negotiation and auto MDI/MDI-X

Jumbo frame support up to 9K bytes

Energy Efficient Ethernet (IEEE 802.3az)

Hardened aluminum case for industrial durability

Wide operating temperature: -40°C to 75°C

DIN-rail or wall-mount installation

Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

12~48VDC, 4-pin terminal block

Output Power

48VDC

Power Consumption:

65W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC1200GP-SFP

Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with PoE+

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

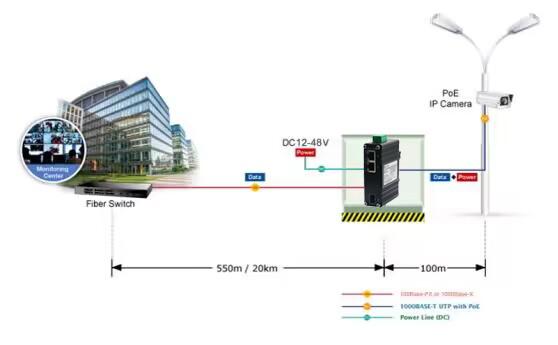

Application

Mini Industrial SFP to 2xGigabit PoE+ Media Converter 30W -40~75°C
