EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V
EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V
EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V
EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ501-90-M12
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
1PCS
Price :
$131-$161
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000pcs/Month
Delivery Time :
3-5 working days
Packaging Details :
PoE Injector Standard Export Package
Compliance :
EN50155, IEEE802.3af/at/bt (PoE++)
Input Voltage :
12–48V DC wide range
PoE Power :
Up to 90W per port
Data Rates :
10/100/1000M/2.5G/5G Base-T(X)
Protection :
Surge (RJ45: 1KV, Power: 500V), ESD 4KV/8KV
Operating Temp :
-40°C ~ +80°C for extreme environments
Description

EN50155 90W 5G Industrial PoE Injector with Rugged M12 Connectors 12–48V

Overview

The LNK-INJ501-90-M12 is a high-power industrial PoE injector engineered for EN50155 railway and

transportation environments. Delivering up to 90W PoE++ output and supporting multi-gigabit Ethernet

speeds up to 5Gbps, it ensures reliable power and data for demanding onboard systems such as IP

cameras, access points, and displays. With robust M12 connectors, a hardened aluminum casing, and

an extended temperature range, it guarantees dependable operation in harsh, vibration-prone

environments.

Features

EN50155 certified – built for railway and vehicle deployments

Wide input voltage: 12–48V DC, high availability applications

Supports multi-gigabit 10/100/1000M/2.5G/5G Base-T Ethernet

High-power PoE++ output up to 90W, IEEE802.3af/at/bt compliant

M12 connectors (A- or X-Coding) for shock- & vibration-proof networking

Extended temperature range: -40°C to +80°C operation

Durable aluminum case, compact size: 95 × 70 × 30 mm, 0.25 kg

Flexible mounting: DIN-Rail or Wall-mount options

Technical Indexes

Ethernet
Standards: IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3bt Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 7,440,000pps (5Gbps)
Cabling: 10/100/1000/2.5G/5G Base-T
Connector: 2x M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 12~48V DC
Power Input 4-pin female M12 A-Coding
Power Consumption: 95W Max.
PoE (Power over Ethernet)
Standard: IEEE802.3af/at/bt
Port: M12 connector (default 8-pin female M12 A-coding, X-coding optional)
Max. Power per Port: 90W Max
LED Indicators:
Power: Power Status
PoE: PoE Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model Description
LNK-INJ501-90-M12 EN50155 Industrial 1-port 10/100/1000M/2.5G/5G 90W M12 PoE Injector 12~48V DC Power Input
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately

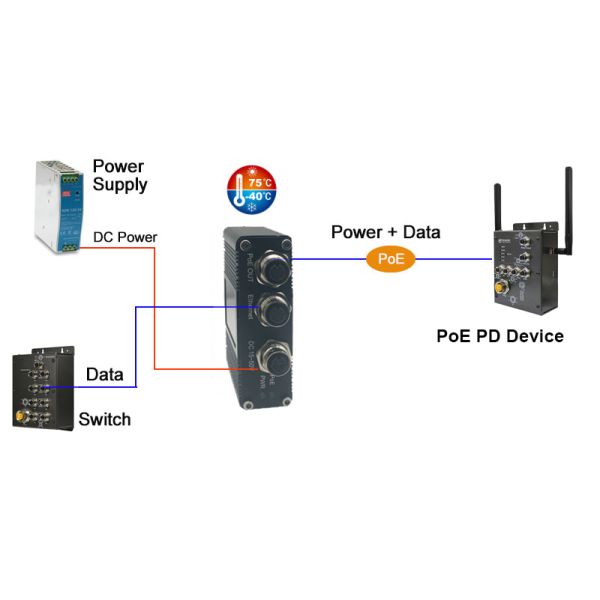

Application
