Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter

Mini Industria Media Converter Overview

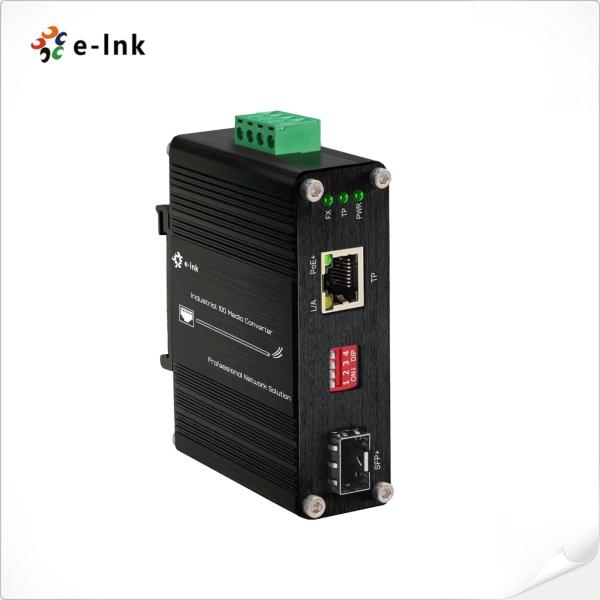

The LNK-IMC10GP60-SFP+ is a hardened industrial-grade 10G media converter with integrated

802.3at PoE+ support, designed to deliver non-blocking, wire-speed performance in the most

demanding environments. It seamlessly bridges the gap between copper and fiber infrastructures,

featuring one versatile Multi-Gigabit RJ45 port (supporting 100M/1G/2.5G/5G/10G speeds)

and one 10GBASE-X SFP+ fiber slot for ultimate deployment flexibility.

Encased in a compact, IP40-rated rugged metal housing, it is built to operate reliably in extreme

climatic conditions, with a wide operating temperature range from -40°C to 80°C. Its integrated

redundant power input system ensures continuous operation and network resilience for critical

applications. This converter is the ideal solution for extending high-bandwidth, power-over-ethernet

connections over fiber in industrial automation, intelligent transportation systems, and outdoor security networks.

Mini Industrial Media Converter Features

►100M/1G/2.5G/5G/10GBASE-T RJ45 interface with auto MDI/MDI-X

►10GBASE-X SFP+ slot for flexible fiber connectivity

►IEEE 802.3af/at PoE compliant

►Supports auto-negotiation:

►100Mbps / 1Gbps (half or full duplex)

►2.5Gbps / 5Gbps / 10Gbps (full duplex)

►LED indicators for real-time network status and diagnostics

►48~57VDC terminal block power input

►DIN-Rail and wall-mount installation options for versatile deployment

►Industrial-grade design, operating temperature range: -40°C to 75°C (-40°F to 167°F)

Mini Industrial Media Converter Technical Indexes

Mini Industrial Media Converter Ordering Information

Mini Industrial Media Converter Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
