Industrial 2.5G PoE+ Media Converter with Voltage Booster 1xRJ45 1xSFP+ 30W Output Wide Input Voltage 12-48VDC Plug and Play Setup
Industrial 2.5G PoE+ Media Converter with Voltage Booster 1xRJ45 1xSFP+ 30W Output Wide Input Voltage 12-48VDC Plug and Play Setup
Industrial 2.5G PoE+ Media Converter with Voltage Booster 1xRJ45 1xSFP+ 30W Output Wide Input Voltage 12-48VDC Plug and Play Setup
Industrial 2.5G PoE+ Media Converter with Voltage Booster 1xRJ45 1xSFP+ 30W Output Wide Input Voltage 12-48VDC Plug and Play Setup
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC3012-2.5GP-SFP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
USD $69-79
Payment Terms :
Paypal,TT,Western Union,MoneyGram,Alipay,L/C,D/A,D/P,T/T
Supply Ability :
2000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Industrial SFP Ethernet Media Converter Standard Export Package
Product Name :
Industrial Solar Voltage Booster Unmanaged Media Converter
Standard :
IEEE 802.3af/at PoE+ PSE (af/15.4W,at/30W)
PoE Power Output :
30 Watts Max.
Input Power :
12~48V DC, 4-pin terminal block
Output Power :
48V DC
Power Consumption :
30W Max.
Description

Mini Industrial Solar Voltage Booster 1-Port 10/100/1000/2500Base-T 802.3at PoE+ to 1-Port 10G SFP+ Media Converter


Mini Industrial 2.5G Media Converter Overview

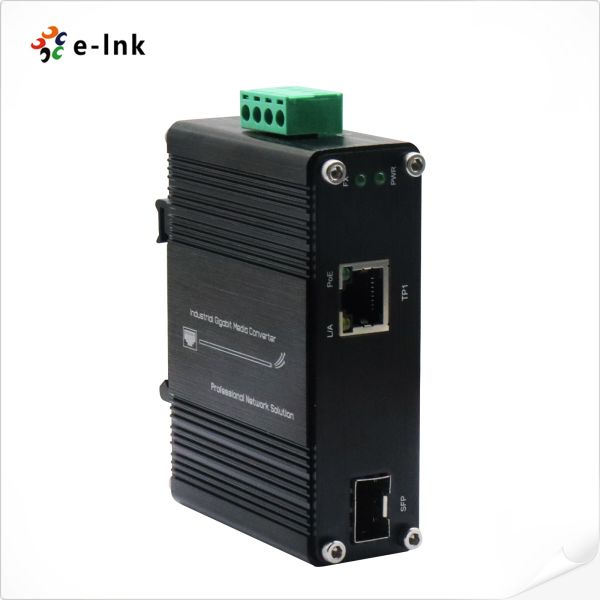

The LNK-IMC3012-2.5GP-SFP is a rugged, DIN-rail mounted Industrial Media Converter designed

for extreme environments. It integrates a 10/100/1000/2500BASE-T RJ45 port with IEEE 802.3at 30W PoE+

and a 10G SFP+ fiber uplink. Featuring a unique Solar Voltage Booster, it accepts a wide 12-48V DC input

to deliver stable, high-power PoE output for IoT and AIoT networks.



Mini Industrial 2.5G Media Converter Features


Hardened & Compact: Operates from -40°C to 75°C in an IP40 metal housing (95x70x30mm).

High-Speed Flexibility: Combines 2.5GbE copper with auto-sensing 1G/2.5G/5G/10G SFP+ fiber.

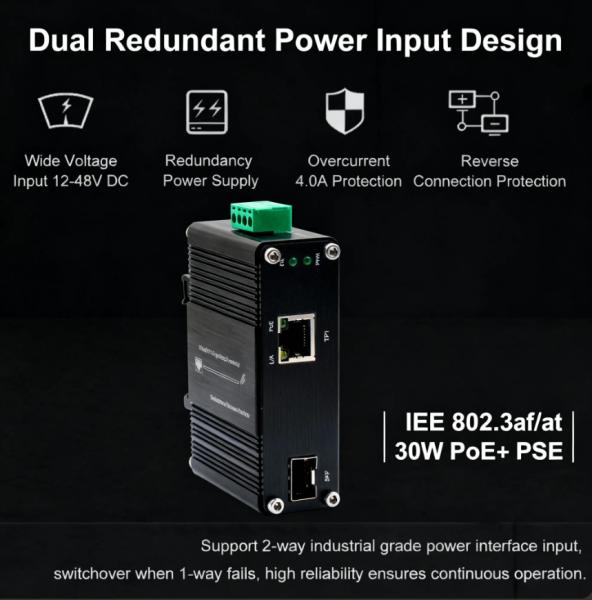

Robust Power Design: Integrated voltage booster supports 12-48V DC input, delivering 30W PoE+ with 6KV surge protection.

Industrial Reliability: DIN-rail/wall-mountable with >200,000 hours MTBF for harsh settings.



Mini Industrial 2.5G Media Converter Technical Indexes


Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ae 10 Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.1p Class of Service

IEEE 802.3bz 2.5GBASE-T

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

22,320,000pps (2.5Gps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

10K Bytes

Address Table Size

16K MAC Addresses

Switching Capacity

80Gbps/non-blocking

Interface

Copper Ports

1 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function

Optical Port:

1 x 10G SFP+(Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers) (auto detection)

PoE (Power over Ethernet)

Standard:

IEEE 802.3af/at PoE+ PSE (af/15.4W,at/30W)

PoE Power Output

30 watts max.

Power Pin Assignment

End-span + Mid-span:1/2(+), 4/5(+), 3/6(-), 7/8(-)

PoE Budget:

Up to 30-watt PoE budget (12V-48V DC)

PoE Power Supply Type

802.3at, End-span + Mid-span (Please contact customer service)

PoE Mode

IEEE802.3at comply Mode B (If need Mode A, please contact customer service)

Voltage Booster

DC 9-12V Input

PoE 48V max 30W

DC 19-24V Input

PoE 48V max 30W

DC 24-36V Input

PoE 48V max 30W

DC 48-57V Input

PoE 48V max 30W

Electrical and Mechanical

Input Power:

12~48V DC, 4-pin terminal block

Output Power

48V DC

Power Consumption:

30W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Mini Industrial 2.5G Media Converter Ordering Information


Model

Description

LNK-IMC3012-2.5GP-SFP

Industrial 1-Port 1.25G/2.5G/5G/10G Base-X SFP+ to 1-Port 10/100/1000/2500BASE-T IEEE802.3at 30W PoE+ Media Converter

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

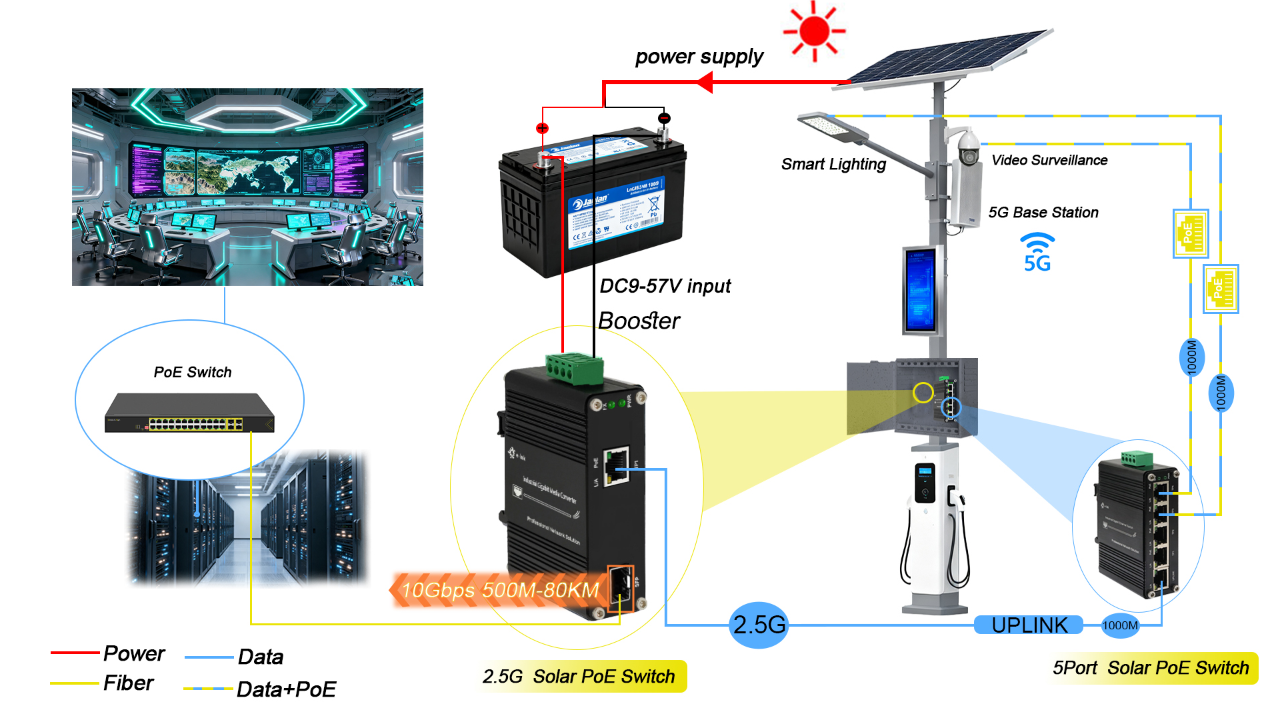

Mini Industrial 2.5G Media Converter Application


Industrial IoT Networks: Connects high-power PoE devices (IP cameras, wireless APs, sensors) to fiber backbones in factories, warehouses, and solar farms.

Outdoor & Rugged Deployments: Ideal for transportation, mining, and energy sectors requiring wide-temperature and voltage tolerance.

Network Modernization: Upgrades legacy copper runs to future-proof 2.5G/10G fiber links without replacing existing PoE equipment.
