12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power
12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power
12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power
12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ302
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 PCS
Price :
$49-$73
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
2000pcs/month
Delivery Time :
3-7 days
Packaging Details :
Power over Ethernet Injector Standard Export Package
Power Input :
12~48VDC (Terminal Block)
PoE Standard :
IEEE802.3af/at, 60W max per port
Ethernet Ports :
2 Data In + 2 PoE Out (Gigabit RJ45)
Throughput :
10/100/1000Base-T, 100m max distance
Mounting :
DIN-Rail / Wall-mount
Casing :
Rugged aluminum, 0.26Kg
Description

12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power

Overview

The LNK-INJ302 is a rugged 2-port Gigabit PoE+ injector designed for industrial

applications. It delivers up to 60W power per port with 12~48VDC input, ensuring reliable

connectivity for cameras, APs, and other powered devices in harsh environments.

Features

Dual PoE+ Ports – Supports up to 60W on one port, total budget ≤60W

Wide Power Input – Operates on 12~48VDC, ideal for field deployment

Industrial-Grade Design – Hardened aluminum casing with -40°C~80°C range

Flexible Installation – DIN-Rail and wall-mount options

Reliable Networking – Gigabit throughput with 100m Cat5e/6 support

Intelligent Power Delivery – IEEE802.3af/at compliant with diagnostic LEDs

Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

4x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

70W Max.

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

60W Max (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.26Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

CE-EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV

Ordering Information

Model

Description

LNK-INJ302

12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately

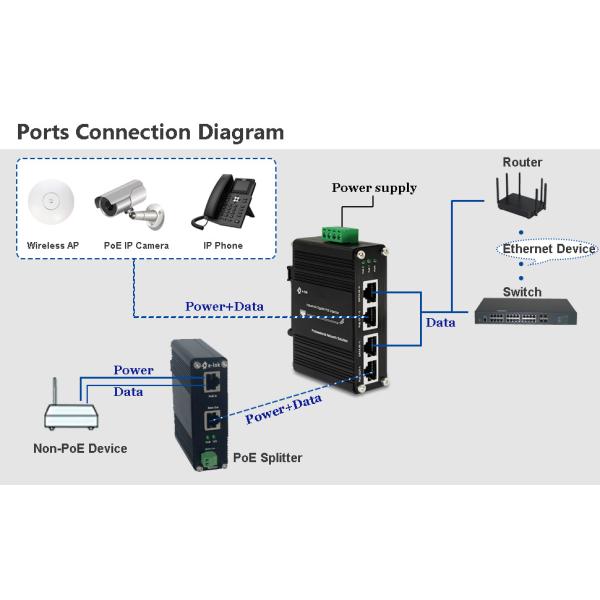

Application
