Specifications
Brand Name :
E-link
Model Number :
LNK-3GSDI-6FV2BV8GP
Certification :
CE
Place of Origin :
China
MOQ :
1pairs
Price :
USD4399/Pairs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100Pairs/Month
Delivery Time :
7-10 working days
Packaging Details :
Standard Carton Packaging
Fiber interface :
Simplex LC
Transmission distance :
20Km
Wavelength :
1310nm/1550nm
Video Input :
6 Channel 3G-SDI
Video Output :
2 Channel 3G-SDI
Connector :
10/100/1000Mpbs 8 x RJ45
Power Input :
200VAC to 240VAC
Size :
19” 2U Rack
Weight :
11.5KG/pair
Description

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI

Fiber Optic Extender

Overview

LNK-3GSDI-6FV2BV8GP supports 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over single fiber transmission. It offers the digital transmission of fully uncompressed SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) by single fiber over broadcast quality. The 8 POE ports meet 802.3af / 802.3at standard with 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

Since optical signals are not affected by electromagnetic noise, LNK-3GSDI-6FV2BV8GP makes your system more reliable and secure. It’s good solution for any HD surveillance system or live broadcasting application. All things considered, LNK-3GSDI-6FV2BV8GP pushes the limits of conventional coax CCTV or broadcast system to a completely new level and allows you to extend transmission distances up to 20km.

Features

  • 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over Single Fiber
  • Compatible with 3G-SDI, HD-SDI, SD-SDI, DVB-AST
  • Bandwidth range from 19.4Mb/s to 2.97Gb/s
  • SMPTE 424M (2.97Gb/s) clock recovery
  • Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
  • Built-in CWDM system, SFP modules for each path
  • Support automatic cable equalization based on the data rate detected
  • LED status indicators monitor the critical parameters
  • 19” 2U Rackmount

Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 20Km
Wavelength 1310nm/1550nm
Plug Neutrik opticalCon Quad
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Video Input 2 Channel
Video Output 6 Channel
Ethernet
Standards

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3at Power over Ethernet
Interface 8 x 1000BASE-T RJ45
Working mode Auto-negotiation by default
Max. Power per Port RJ45 Port 1 ~ Port 8 (30W Max per port)
Electrical
Power port PowerCon plug
Power Input 200VAC to 240VAC
Power consumption <12W
LED Indicator
PWR Power Supply
SDI 1~8 3G-SDI Signal
ACT RJ45 Ethernet Signal
LINK Link Status
Mechanical
Dimensions (LxWxH) 560 x 450 x 380mm (19inch 2U)
Weight 11.5KG/pair
Casing Metal Case
Mounting Options Rack-mount
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

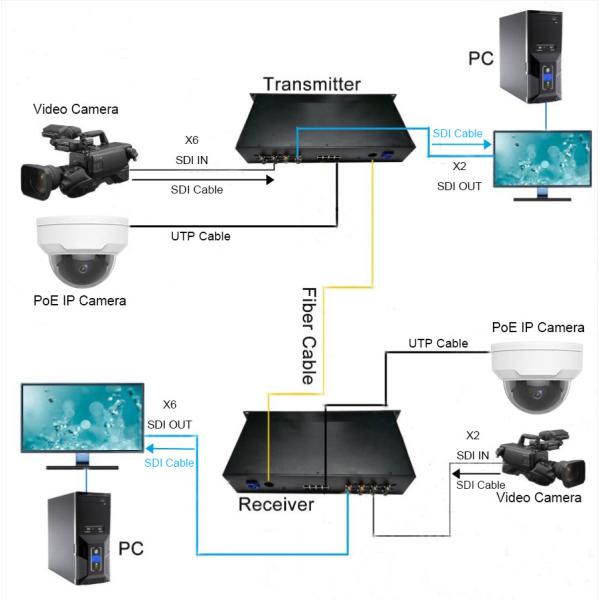

Application

8Ch PoE 6Ch Forward SDI Fiber Optic Extender 2Ch 3G Simplex LC
