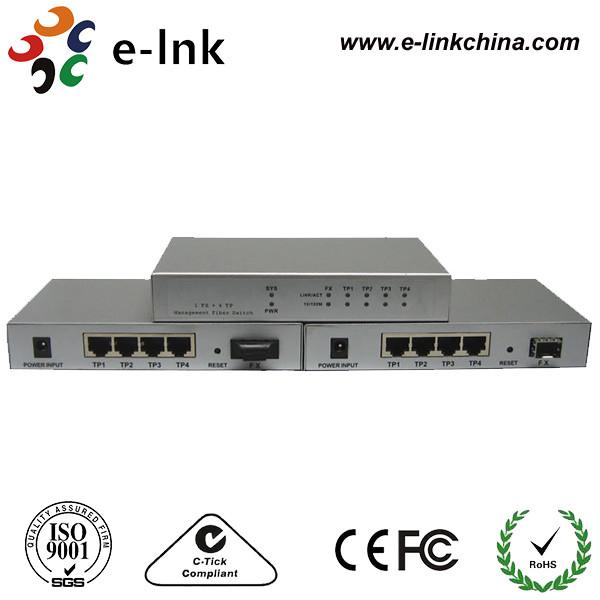

10 / 100M Fiber Optic To Cat5 Media Converter Ethernet Switch 16 SFP Port 1000Base - X
10 / 100M Fiber Optic To Cat5 Media Converter Ethernet Switch 16 SFP Port 1000Base - X
10 / 100M Fiber Optic To Cat5 Media Converter Ethernet Switch 16 SFP Port 1000Base - X
10 / 100M Fiber Optic To Cat5 Media Converter Ethernet Switch 16 SFP Port 1000Base - X
Specifications
Brand Name :
E-link
Model Number :
LNK-M1400S-20
Certification :
CE/FCC/Rohs
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs Per Month
Delivery Time :
4-6 days
Packaging Details :
Standard export package
Backplane bandwidth :
32Gbit
Optical Port :
16 x SFP 1000Base-X
VLAN Address Table :
4k
Management :
Yes
Power Input :
90-264VAC
Dimensions :
440x230x44mm(1U 19-inch)
Description

Managed 4 ports 10/100M Fiber Optic to Cat5 Media Converter, Single-mode 20km

Model: LNK-M1400S-20

Overview

This managed Fast Ethernet Optical Fiber Switch has one 100M FX port and four 10/100M UTP ports. Customer can choose different FX specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.

Features

  • Support 4 port 10/ 100M auto-detect Half/Full duplex RJ45 ports and 1 fiber port.
  • Support WEB-based network management.
  • Support port VLAN and Tag VLAN. (8 Groups)
  • Support data packet length up to 1552 bytes.
  • Support MAC address auto-learning.
  • Support IGMP Snooping.
  • Support IEEE 802.1p priority tags.
  • Support DSCP.
  • Automatic MDI/MDI-X configuration.
  • Support bandwidth control.
  • Support for hardware Load Default button to restore the default value.
  • Choice of fiber-connector from SC,FC,ST, LC, WDM, multi-mode / single-mode fiber /100Base-SX/ LX SFP.

Technical Indexes

Standards and Protocols Supported IEEE802.3 , IEEE802.3u , IEEE802.3x, IEEE802.1Q
Wavelength 850nm/1310nm/1550nm
Distance Dual Fiber MM: 2km Dual Fiber SM: 20/40/60/80/ 100km
Single Fiber SM : 20/40/60/ 80km
MAC 2K
CPU 150Mhz or above
Memory 16MB or above
Input Voltage Range 9-15V/DC
Consumption Max.6W
Operating Temperature 0 ℃ ~ 45 ℃
Storage Temperature -40 ℃ ~ 70 ℃
Operating Humidity 10%~90% RH no condensing
Storage Humidity 5%~90% RH no condensing
Dimensions: 232mm * 142mm * 45mm
Standards and Protocols Supported IEEE802.3 , IEEE802.3u , IEEE802.3x, IEEE802.1Q
Wavelength 850nm/1310nm/1550nm
Distance Dual Fiber MM : 2km Dual Fiber SM : 20/40/60/80/ 100km
Single Fiber SM : 20/40/60/ 80km
MAC 2K
CPU 150Mhz or above

10 / 100M Fiber Optic To Cat5 Media Converter Ethernet Switch 16 SFP Port 1000Base - X
