95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
95W Industrial Power Over Ethernet Injector
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ-48-95W Series
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Packaging Details :
Standard Export Package
Name :
95W POE Injector
Processing Type :
Forward Half-duplex, Full-duplex
Maximum Distance :
Cat5 UTP up to 100m
Connector :
2x RJ45
Casing :
Aluminum Case
Data Rate :
1000M
Operating Temperature :
-40°C to 80°C
MTBF :
>200,000hrs
Input Power :
48~57VDC (Terminal Block)
Power Consumption :
100W Max.
Description

Industrial Hardened Gigabit 95W PoE++ Injector

95W Industrial Power Over Ethernet Injector

Model: LNK-INJ-48-95W Series

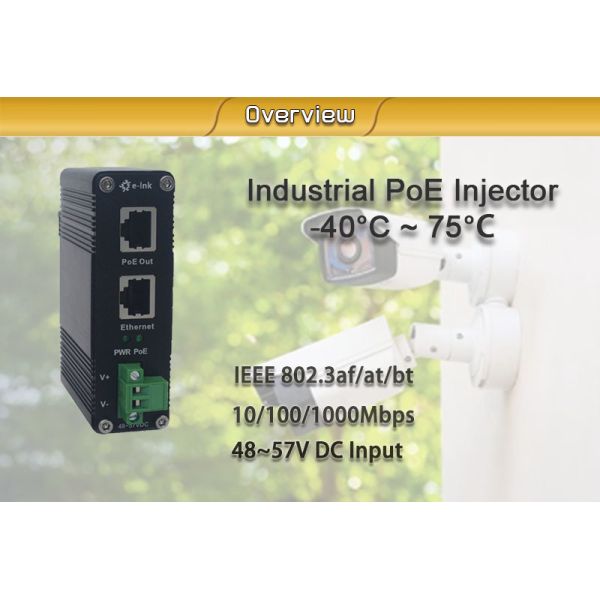

Overview

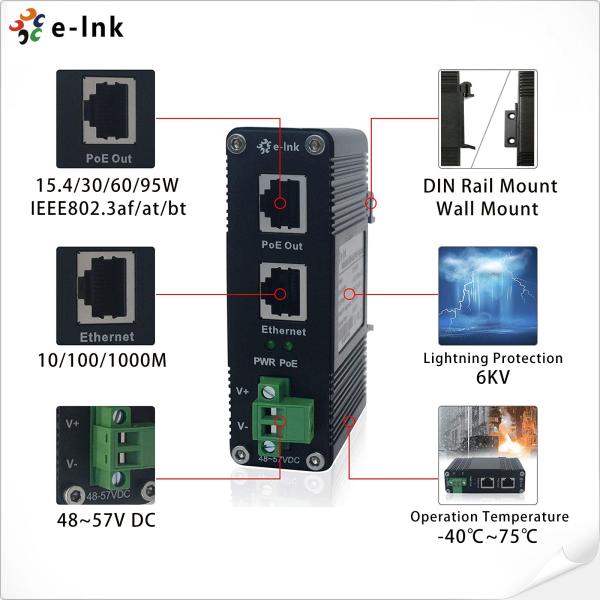

LNK-INJ-48-95W is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3at / LTPoE++ 95W 10/100/1000Base-TX PoE Injector.

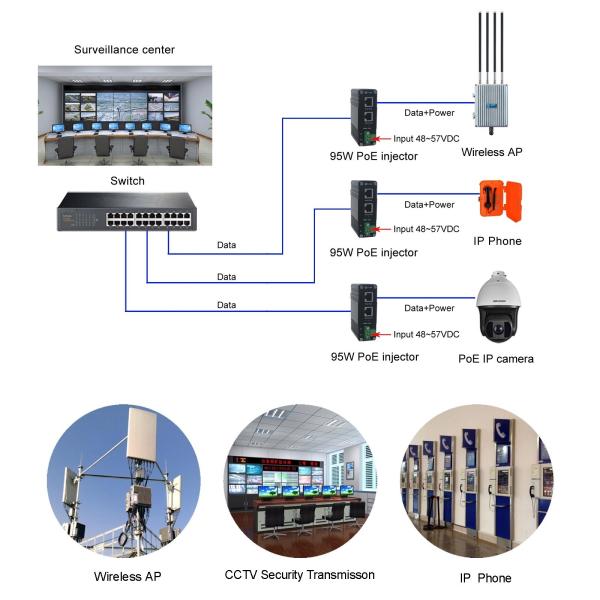

It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Technical Indexes

Ethernet
Standards: IEEE802.3i 10 BASE-T, IEEE802.3u 100 BASE-TX, IEEE 802.3ab Gigabit Ethernet
IEEE802.3 x Flow Control
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 2x RJ45
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Power: 48~57VDC (Terminal Block)
Power Consumption: 100W Max.
PoE:
Standard: Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
Max. Power per Port: 95W Max per port (Alternative B Mode)
LED Indicators:
Power: Power Status
PoE: PoE Status

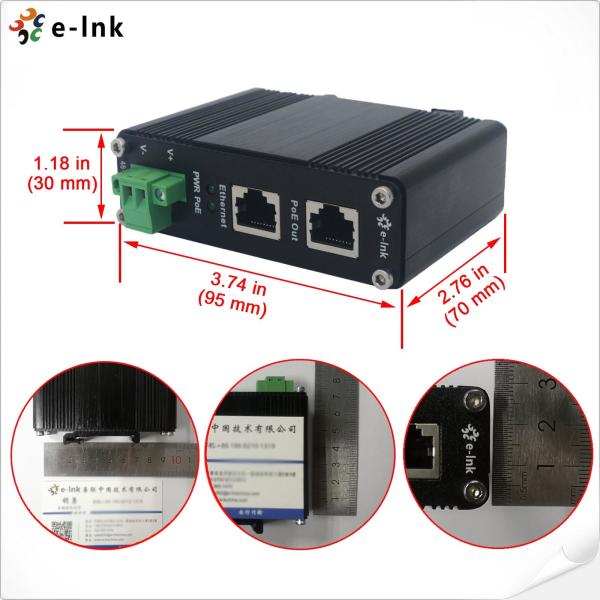

Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case

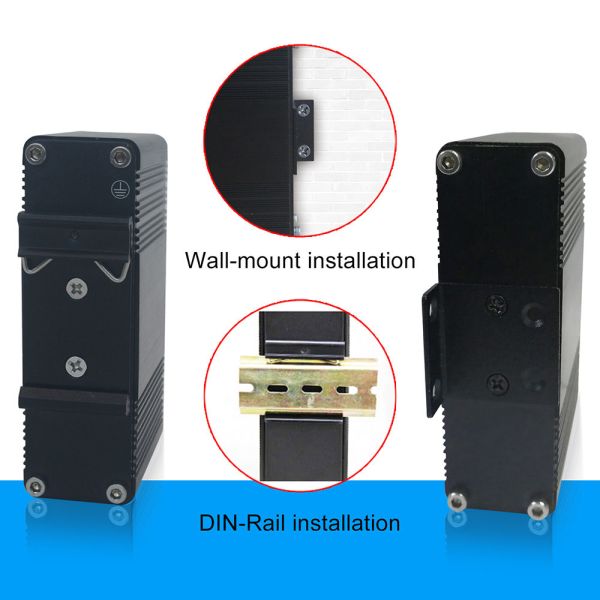

Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

95W Industrial Power Over Ethernet Injector

Ordering Information

Model Description
LNK-INJ-48-95W Hardened Gigabit 1-port Ethernet Input + 1-port PoE+ Output Injector
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
