Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
2~25 Work Day
name :
1*32 PLC Splitter
material :
ABS
Fiber core :
32 core
color :
green
Application :
FTTH, FTTx
use :
install in the unit box
Brand Name :
ANSHI
Model Number :
AS-ODF-2X32FLP
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
10 pieces
Price :
$2~$5
Supply Ability :
10000/week
Description

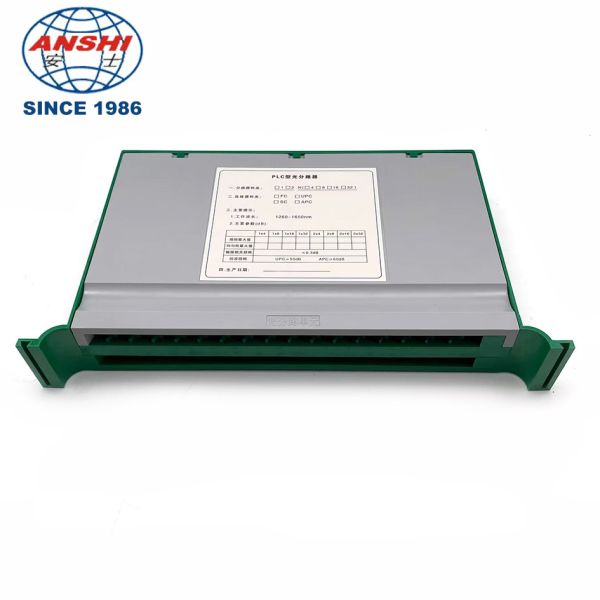

1 X 32 1 X 16 Fiber PLC Splitter 32 Port Fiber Optic Splice Tray With Adapters
1x32 fiber PLC optical splitter in 32 port splice tray with adapters Optical Distribution Frames ODF
Product Features
  • Customizable splitting ratio
  • Light weight with high strength and dustproof construction
  • Available in FC, SC, and LC adapter types
  • Convenient and easy network setup
  • Compatible with Module type ODF installation
Applications
  • Optoelectronics communication systems
  • CATV networks
  • LAN installations
Ordering Information
  • Available in 1U PLC Splitter with tray configurations
  • Selectable splitting ratios: 1x16 or 1x32
  • Customizable cable lengths
  • Multiple connector options available
Performance Specifications
Type 1x2 1×4 1×8 1×16 1×32 1×64 2x2 2×4 2×8 2×16 2×32 2×64
Operating wavelength (nm) 1260-1650
Insertion loss (dB) - Typical 3.6 6.8 10.0 13.0 16.5 20.5 4.0 7.3 10.5 13.5 17.0 20.5
Insertion loss (dB) - Maximum 3.8 7.2 10.7 13.9 17.2 22.0 4.2 7.6 10.8 14.0 17.5 22.0
Uniformity (dB) - Typical 0.4 0.5 0.6 1.0 1.0 2.5 0.6 0.8 1.0 1.5 2.0 2.0
Uniformity (dB) - Maximum 0.6 0.8 1.0 1.4 1.6 2.5 0.8 1.0 1.5 2.0 2.5 2.5
Polarization Dependent Loss (dB) - Typical 0.1 0.1 0.15 0.2 0.2 0.2 0.1 0.1 0.1 0.2 0.2 0.2
Polarization Dependent Loss (dB) - Maximum 0.2 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.3 0.4 0.4 0.4
Wavelength dependent loss (dB) - Typical 0.1 0.1 0.15 0.3 0.3 0.1 0.1 0.1 0.1 0.1 0.2 0.2
Wavelength dependent loss (dB) - Maximum 0.2 0.3 0.3 0.5 0.5 0.2 0.2 0.2 0.3 0.5 0.5 0.5
Return loss (dB) - Minimum UPC:50 APC:55
Directivity (dB) - Minimum 55
Operating temperature (°C) -20 to 70
Storage temperature (°C) -40 to 85
Optical fiber type SMF-28e or customer required
Optical fiber length (m) 1M or customize
Remarks:
1. Measured at room temperature and excludes connector loss.
2. For devices with connectors, insertion loss will be 0.3 dB higher.
