Specifications
Brand Name :
ANSHI
Model Number :
AS-KEY-D8E
Certification :
SGS, ISO9001, DAS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
100 PCS
Price :
0.26-0.6
Payment Terms :
T/T
Supply Ability :
35000 Pieces per Week
Packaging Details :
1 PC/BAG, 100PCS/INNER BOX
Pin :
Phosphor bronze
plating :
gold Plating, General is 3u''
jack type :
RJ45
color :
Can be customized,
category :
CAT6 cat6a
material :
PC+Phosphor bronze
Description
100% Pass Fluck Test RJ45 CAT6/CAT6AUTP 180 Degree Keystone Jack Dual IDC

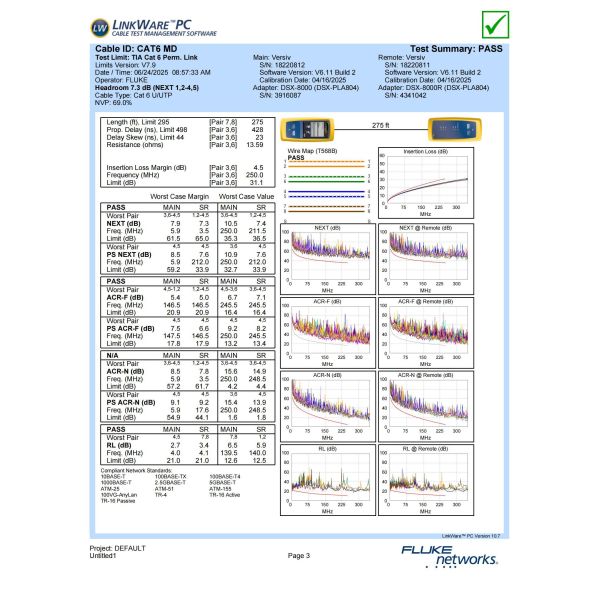

100% PASS FLUKE TEST RJ45 CAT6 UTP 180 Degree Keystone Jack Modular Jack
FLUKE for CAT6: 7.2dB

RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections

Key Features
  • Various information modules provide multiple choices for wiring system
  • Design exceeds standard requirements for superior performance

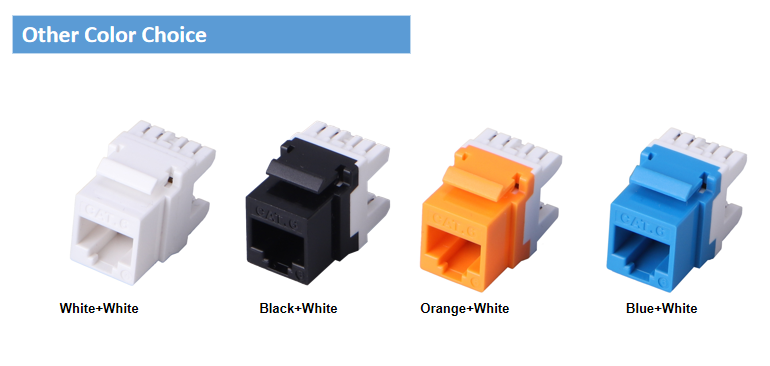

  • Color-coded units for easy identification and network management
  • Versatile configuration to meet various work allocation requirements
Certifications & Standards
  • Meets FCC parts 68
  • ANSI/TIA/EIA-568B
  • ISO/IEC 11801
  • ETL verified EIA/TIA T568B: Cat. 6 channel link
Technical Specifications
Category Specification
Physical Properties
  • IDC connector accepts 22-26 AWG solid wire
  • 50-micron inch gold plate over 100-micron inch nickel contacts
  • High impact flame retardant plastic housing (UL94V-0 rated)
  • Compatible with 110 punch down and Krone tools
Mechanical Properties
  • Plug insertion life: 750 cycles
  • Plug retention force: 30lbs
Electrical Properties
  • Current rating: 1.5A
  • Insulation resistance: 500M Ohms minimum
  • Contact resistance: 20 Milli-ohms maximum
  • DC resistance: 0.1 Ohms maximum
  • Data transmission rates up to 250Mbps
Product Image

RJ45 Keystone Jack 180 Degree CAT6/CAT6A UTP for Reliable Network Connections
