Specifications
Brand Name :
ANSHI
Model Number :
AS-ODF-1X16FLP
Certification :
ISO9001, SGS
Place of Origin :
China
MOQ :
10 Pieces
Price :
$2~$5
Payment Terms :
L/C,D/P,D/A,MoneyGram,Western Union,T/T
Supply Ability :
2000 pcs/day
Delivery Time :
10000pcs/week
name :
1X16 optic plc splitter
connector type :
SC/APC
insertion loss :
≤0.20
Wavelength :
1310nm/1490nm/ 1550nm
Application :
CATV/FTTH/LAN/PON
Description

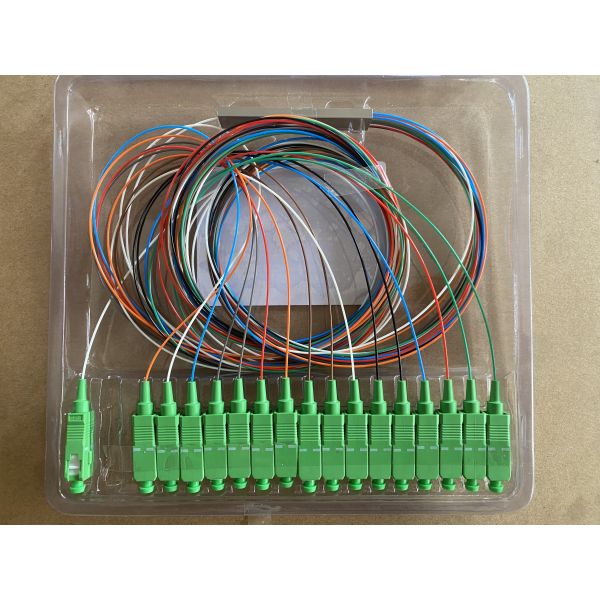

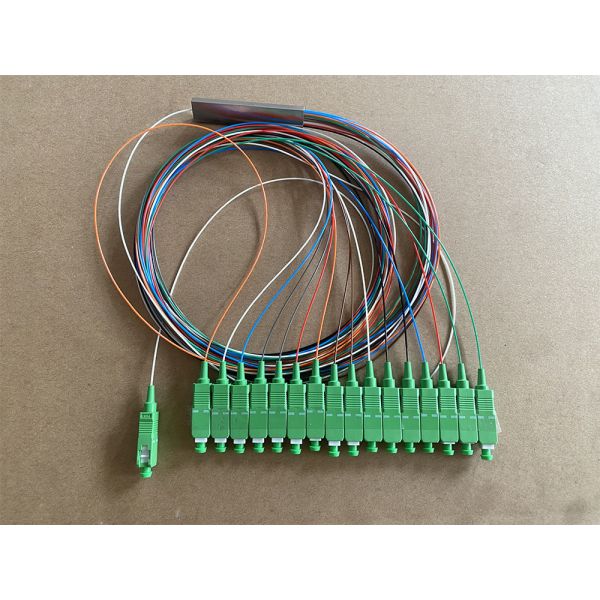

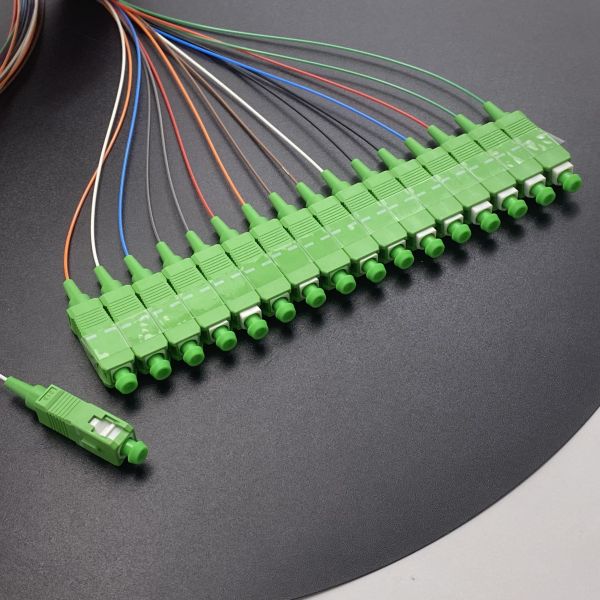

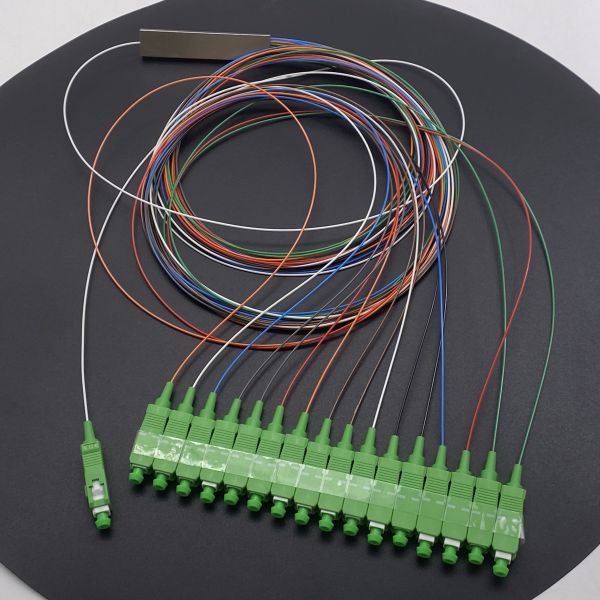

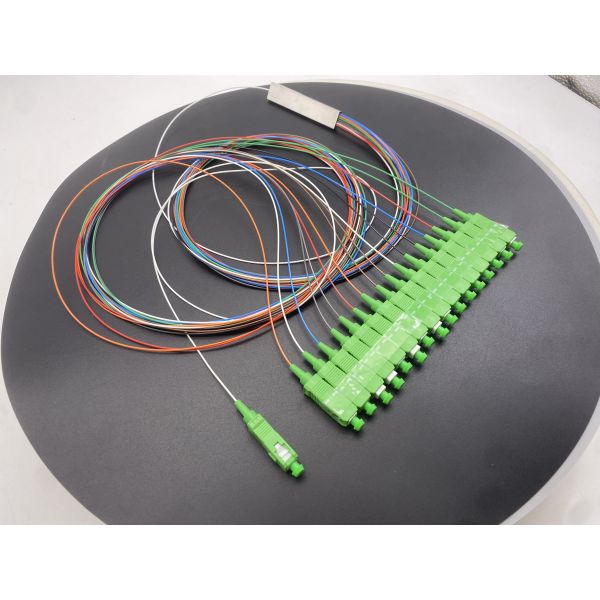

1x16 SC/APC PLC FTTH Fiber Optic Splitter
Single Mode Optical Coupler 1x16 Fiber Optic SC APC PLC Splitter FBT

PLC splitter is a quartz substrate integrated waveguide optical power distribution device featuring compact size, broad working wavelength range, high reliability, and excellent light uniformity. It is specifically designed for passive optical networks (EPON, BPON, GPON) to connect local and terminal equipment while distributing optical signals.

The bare PLC splitter consists of a PLC splitter chip and input/output optical fiber arrays housed in a square metal tube, available with 0.9mm or 250μm bare fiber outputs. These fibers can be welded or processed with various types of optical fiber connectors.

Qingdao APT offers a comprehensive series of 1xN and 2xN splitters for specialized applications. All products comply with YD/T1117-2001 and YD-T 2000-209 standards and are TLC certified for network deployment.

Technical Specifications
Parameters 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability (-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4
Key Features
  • Continuous coverage with different fibers
  • Full fiber core structure
  • Reusable design
  • Optional fiber types
  • Low additional loss
  • Minimal insertion loss
  • Multiple configuration options (2×2, 1×2, 1×4, up to 1×128)
Applications
  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV Systems
  • FTTX Deployment
  • FTTH Network Infrastructure
  • Passive Optical Networks (PON)
  • Measuring Systems and Laser Systems
  • DWDM and CWDM Systems
