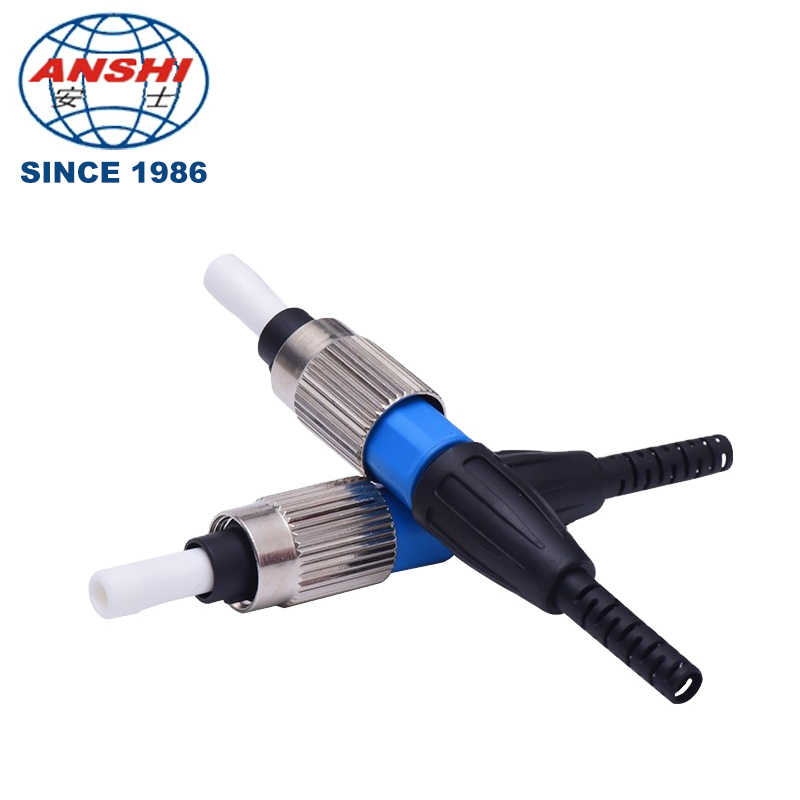

High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
High Quality FC Fusion Type Hot‑Melted Fiber Optic Fast Connector, Field Assembly Melted Optical Fiber Connector
Specifications
Repeat Assembly :
≥5 Times
Place of Origin :
China
Use :
FTTH
Model Number :
AS-ODF-KJT-02-SC/UPC
Connector Type :
FC
Working Temperature :
-40~+80℃
Supply Ability :
500,000pcs/week
Applicable Cable :
2.0mm & 3.0mm Round Cable, 0.9mm Invisible Cable
Insertion Loss :
AVG≤0.3dB, MAX≤0.5dB
MOQ :
Negotiable
Fiber Mode :
Singlemode
Success Rate :
>98%
Payment Terms :
D/A,D/P,T/T,L/C,Western Union,MoneyGram
Tensile Strength :
>50N/10min
Mechanical Endurance :
≥500 Times
Price :
Negotiable
Brand Name :
ANSHI
Certification :
ROHS, ISO9001
Type :
Fiber Adapter & Connectors
Return Loss :
AVG≥50dB, MIN≥45dB
Description
Product Description

Specially designed for FTTX and ODF data center, easy to operate, can be used repeatedly, no epoxy, no matching gel, no polishing, long-term reliability and high stability. Its optical performance and mechanical performance can compare to the factory pre-embedded fiber optic connectors.

Specification
Item Parameter
Model Number YT920RD-FC
Brand Name UNIKIT/OEM
Applicable Cable 2.0mm & 3.0mm Round Cable, 0.9mm Invisible Cable
Tensile Strength >50N/10min
Fiber Mode Singlemode
Connector Type FC
Insertion Loss AVG≤0.3dB, MAX≤0.5dB
Return Loss AVG≥50dB, MIN≥45dB
Working Temperature -40~+80℃
Success Rate >98%
Mechanical Endurance ≥500 Times
Repeat Assembly ≥5 Times
Features
  1. No embedded fiber and no matching gel in the connector, free from temperature changes, long term reliability;
  2. Unlimited repeatable assembly, the IL and RL is stable every time;
  3. Flexible locking structure, to protect the fiber from damage;
  4. Double V groove, high precision, good stability;
  5. Visible installation, can check by eyes;
  6. Easy to assemble, less than 4 minutes.
