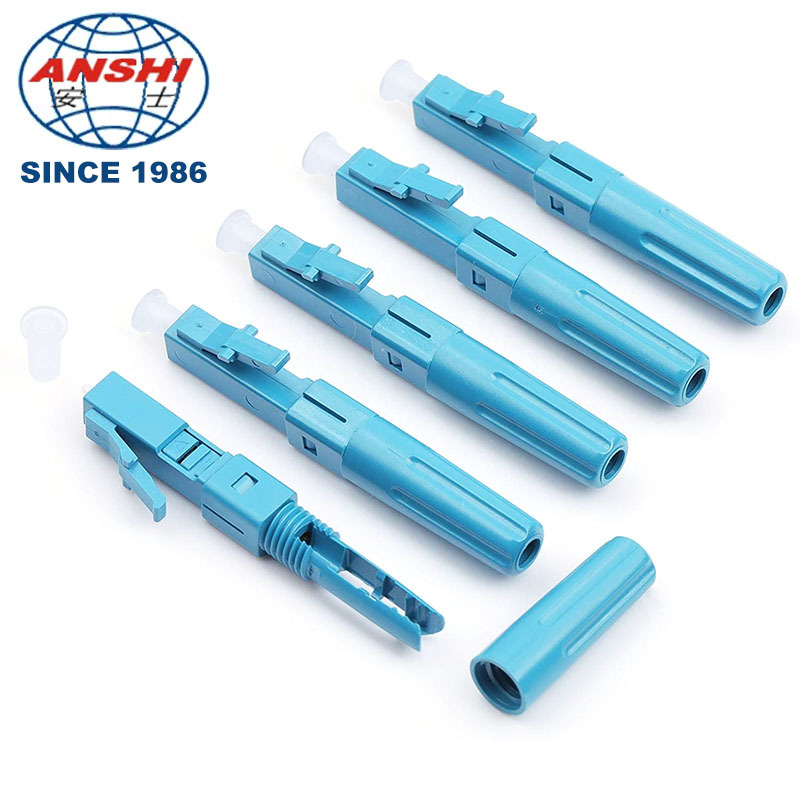

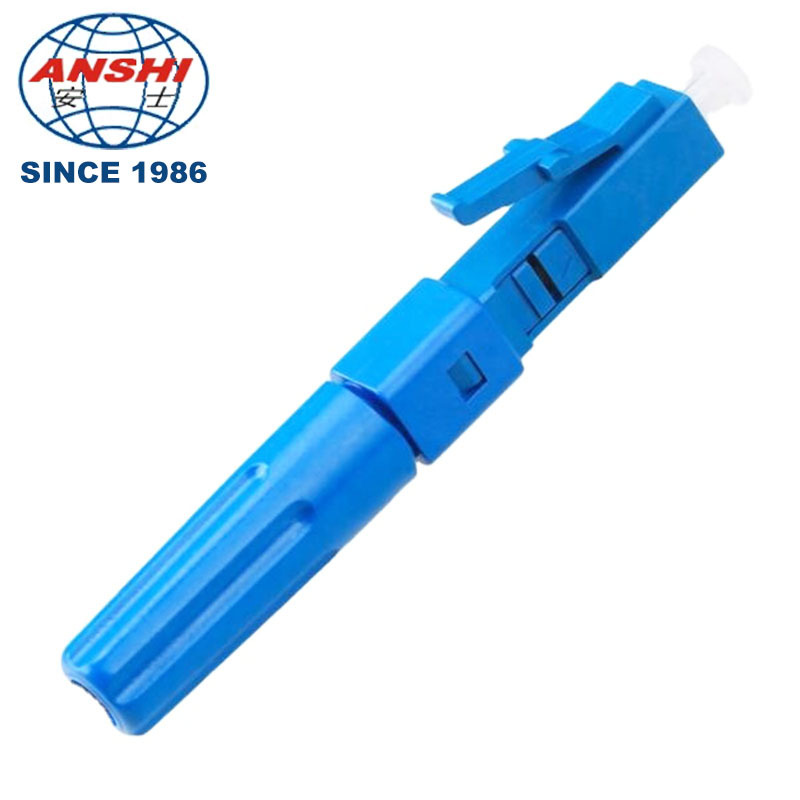

Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
Specifications
Assembly Time :
Drop Cable≤2mins Round Cable≤4mins
Place of Origin :
China
Network :
Wireless Lan, Wired LAN, 4 G, 3 G
Certification :
ROHS, ISO9001
Brand Name :
ANSHI
Model Number :
AS-ODF-KJT-02-SC/UPC
Use :
FTTH
MOQ :
Negotiable
Insert loss :
<=0.3dB
Payment Terms :
D/A,D/P,T/T,L/C,Western Union,MoneyGram
Applicable cable :
2.0*3.0mm flat drop cable & 2.0mm & 3.0mm & 0.9mm cable
Polishing :
APC/UPC
Price :
Negotiable
Connection type :
LC FTTH Cable Connector
Application :
FTTH Outlets
Supply Ability :
500,000pcs/week
Reusable times :
>=5 times
Tensile strength :
>30N/2min
Type :
Fiber Adapter & Connectors
Return Loss :
>=55dB for APC, >=50dB for UPC
Description
Product Features
  1. FTTH project usable
  2. Field installable
  3. Insert loss No more than 0.5dB
  4. Metal V-shape cavity work well in high and low temperature
  5. Installation less than 1 minutes
  6. Reliable and superior optical performance
  7. Cable Tensile test complies with Telcordia GR-326-COR
Technical Specifications
Item Parameter
Model Number ELC925T-UPC
Brand UNIKIT/OEM
Connection type LC FTTH Cable Connector
Applicable cable 2.0*3.0mm & 2.0*1.6mm flat drop cable & 2.0mm & 3.0mm & 0.9mm cable
Reusable times >=5 times
Insert loss <=0.3dB
Return Loss >=55dB for APC, >=50dB for UPC
Tensile strength >30N/2min
Using Temperature -40~+85°C
Fiber mode SM MM(OM3, OM4...)
Application FTTH
No. of Fiber 1
Assembly Time Drop Cable≤2mins Round Cable≤4mins
Fiber Optic LC APC Fast Connector FTTH Mechanical Splicer Metal V-groove Single Mode Multimode OM3 OM4
