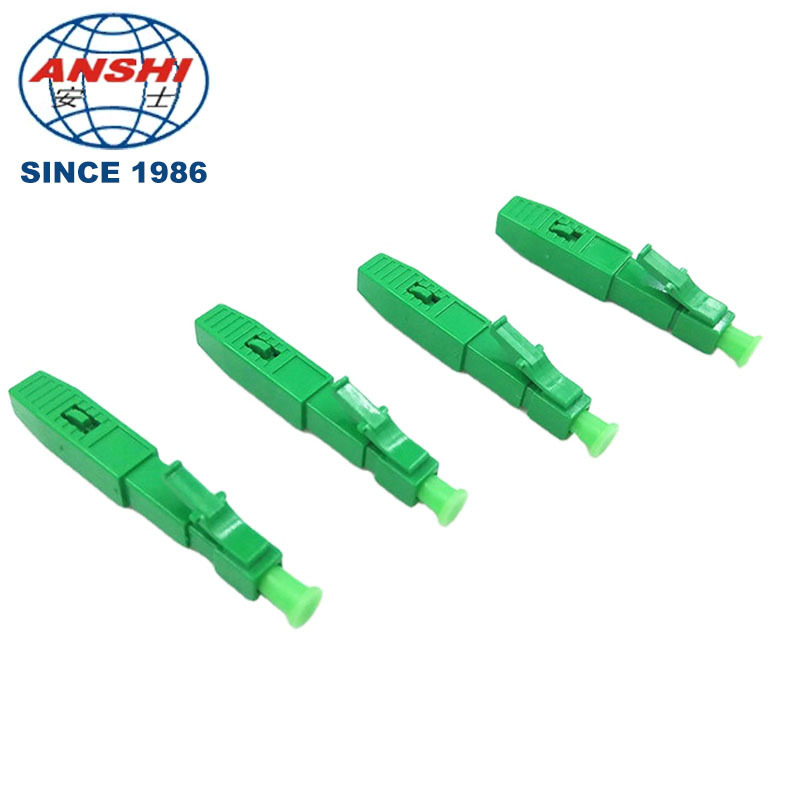

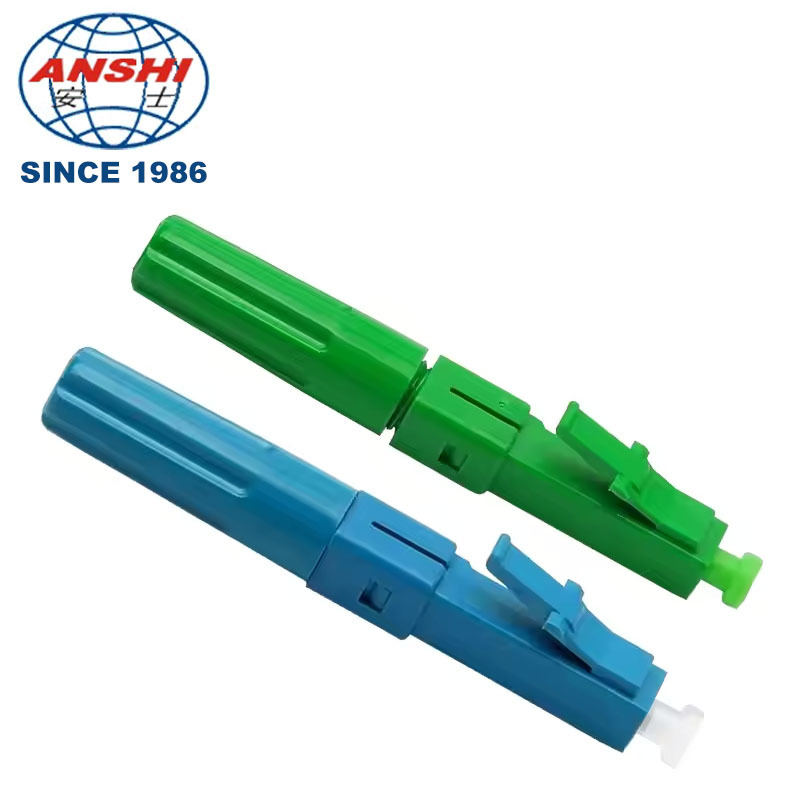

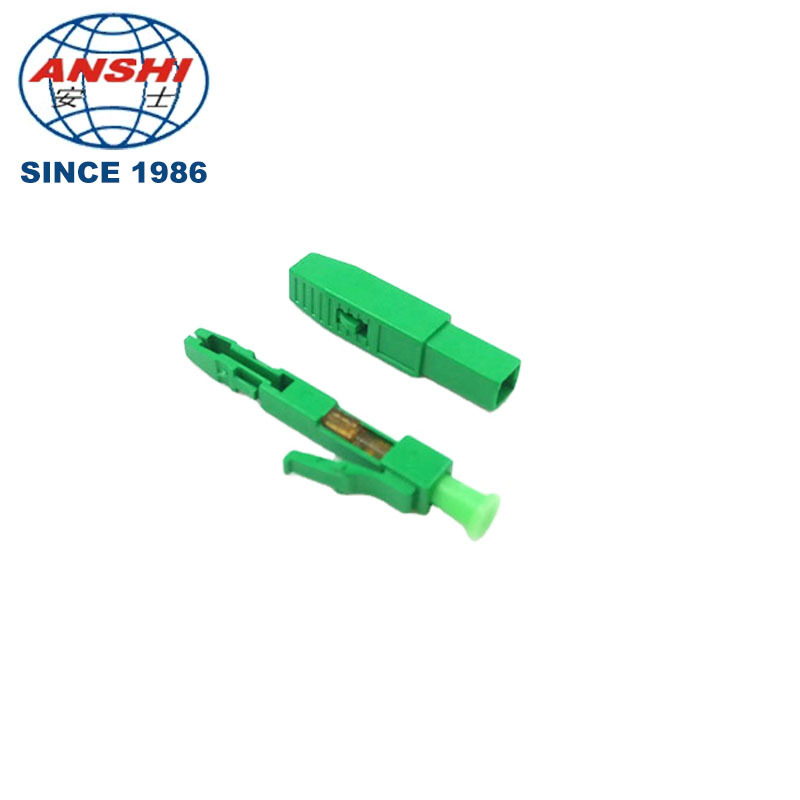

FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
FTTH Fiber Optic LC APC Fast Connector Mechanical Splicer Metal V‑groove Single Mode Multimode OM3 OM4
Specifications
Model Number :
LC APC
Mfg. Date Code :
LC Fiber Fast Connector
MOQ :
Negotiable
Type :
LC
Description :
LC Fiber Fast Connector
Payment Terms :
D/A,D/P,T/T,L/C,Western Union,MoneyGram
Fastener type :
PUSH-PULL
Packaging :
Carton
Price :
Negotiable
Cable diameter :
0.9/2.0/3.0mm
Supply Ability :
500,000pcs/week
Simplex/Duplex :
simplex
Place of Origin :
China
Application :
FTTH FTTB FTTX Solution
Ingress Protection :
CAP
Brand Name :
ANSHI
Housing Material :
Plastic
Certification :
ROHS, ISO9001
Return Loss :
≥55dB for APC, ≥50dB for UPC
Insert loss :
≤0.3dB
Mode :
SM MM
Description
Product Description
Feature
1). Low insertion loss, high return loss;

2). Reliable optical performance;

3). Good connection stability;

4). Convenient for field installation;

5). Installs fast, Operates easy ;

6). Low cost & Reliability

Application

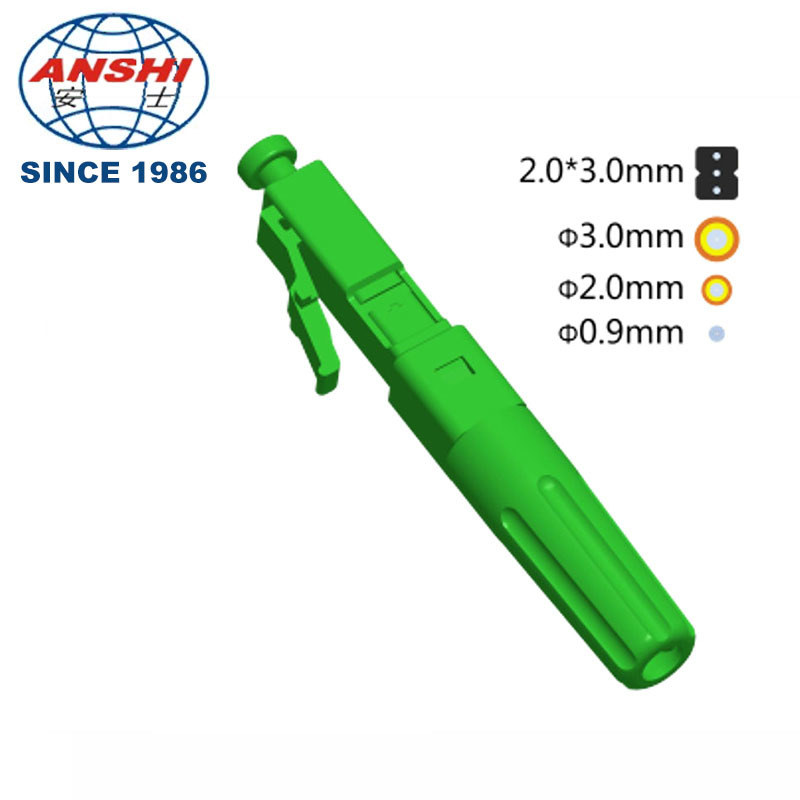

◆Cable:3.0*2.0mm, 2.0*1.6mm Drop Cable, Ф 3.0mm, Ф 2.0mm, Ф 0.9mm Round Cable
◆Product Length: 45mm
◆Fiber: SM/ G657 Bending Insensitive; MM OM3, OM4
◆Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
◆Operating Temperature: -40℃～+80℃
◆Application: FTTH

Technical Parameters
Item
Parameter
Model Number
LC UPC/APC
Main Material
Plastic
Success Rate
>98%
Applicable cable
2.0*3.0mm & 2.0*1.6mm flat drop cable & 2.0mm & 3.0mm & 0.9mm cable
Reusable times
≥5 times
Insert loss
≤0.3dB
Return Loss
≥50dB for UPC, ≥55dB for APC
Tensile strength
>30N/2min
Application
FTTX FTTH Network
No. of Fiber
1
Useful life
>=10 years
Temperature
-40~+85°C
