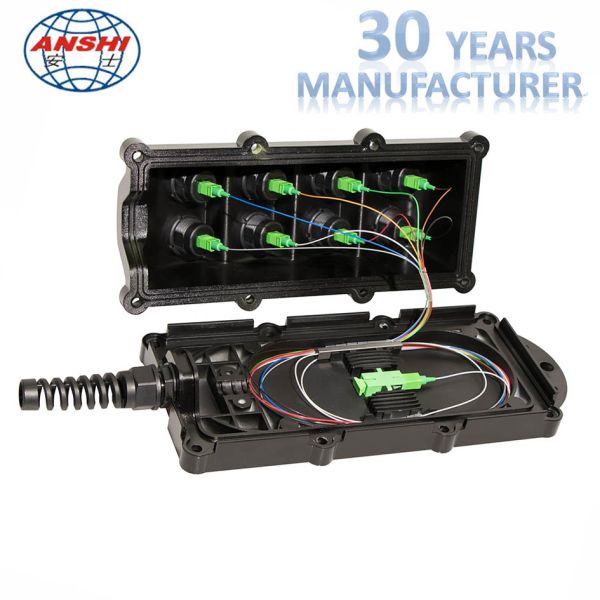

Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Specifications
Dimensions :
280x120x85mm
Fire Retardant :
UL 94V-0
No. of Fusion :
Max 24 pcs
Adapter Port type :
MINI SC,H connector (Optitap),MINI IPMPO,ODVA
Application :
FTTX Enclosure box
name :
Optical Fiber Distribution Box
Brand Name :
ANSHI
Model Number :
AS-ODF-FDB-ODVA
Certification :
ISO9001, SGS
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Delivery Time :
10000pcs/week
Cable Strength Member :
Armoured or Non-armoured
material :
Plastic
Description
ANSHI Optical Fiber Distribution Box Mini SC PTLC ODVA Fiberhub Box

FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Applications
  1. FTTH field
  2. FTTA field
  3. Trunk cable connecting
  4. Prospecting or communication
Features
  1. High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
  2. Factory-sealed or field assembly.
  3. IP68 water and dust protection
  4. Strong enough: working under 1200N pulling force long term.
  5. From 2 to 12 ports for single or multifiber harsh connectors.
  6. Available with PLC or splice sleeve for fiber divide .
  7. IP68 waterproof rating.
  8. Wall-mounting, aerial installation or holding pole installation.
  9. Decreased angle surface and height make sure no connector interfering when operating.
  10. Meet IEC 61753-1 standard.
  11. Cost effective: save 40% operating time.
Configuration
Configuration
Standard Optional
Input Hole PG13.5 MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Output Hole MINI SC,H connector MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Extend Hole Closed MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized

Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
