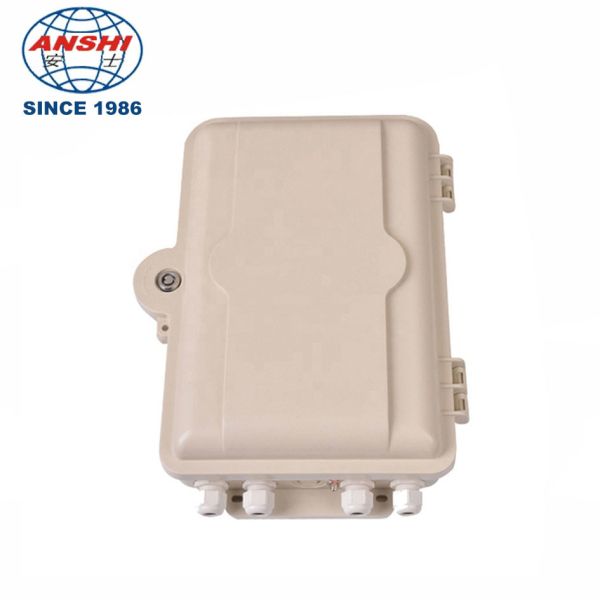

32 core Fiber Distribution Box Insert Type Splitter Outdoor Terminal Box

Features

1. The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters

2. Sealing with pressed strip, waterproof and dustproof with IP65

3. Special screw and key for its door lock; can be installed on wall or mounted on pole

4. Spare pigtails and drop cable can be save in storage part, convenience for maintenance

5. Special lock device for outlet of drop cable

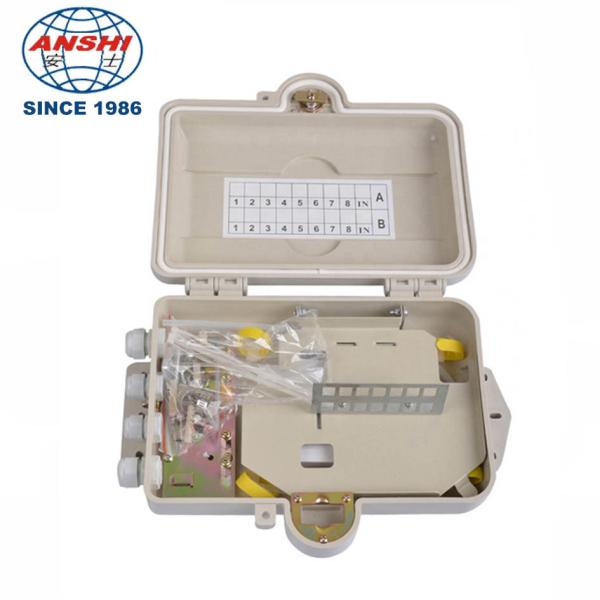

6. Bilayer structure, bottom for splicing and upper layer for splitting and distribution

7. There are 24-32 positions for adapters of FC, SC or ST

8. Maximum 2 pieces of splice tray for satisfying of connection

Technical Parameter

Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)

Application

1, Optical fiber communications systems;
2, Optical fiber access network;
3, Optical fiber CATV.
4, Optical fiber test equipments;
5, Optical fiber data communications;
6, LAN

The Cable terminal box have function of fixed, welding functions, protection the terminal of the cable; it is used to implement the connection cables and pigtails. With high quality electrolytic plate, the overall electrostatic spray, solid structure, beautiful appearance; It’s detachable and Suitable for ribbon and non-ribbon cable.The Cable terminal box is mainly used in connection and the storage between the fiber optic cable outside and the pigtails, it can be installation in mode of wall and floor. Optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH. This terminal box applies to the communications room and various network room wall installation or desktop installation.
