Specifications
printed :
silver
Application :
Horizontal type
protect :
Voltage and current protection
capacity :
100 pair
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
use :
MDF Frame
material :
ABS+Phosphor bronze
Brand Name :
ANSHI
Model Number :
AS-MDF-XHW
Certification :
ROSH, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
1000pcs/week
Description
High Density JPX202 Series 100 Pairs Cable Side Terminal Block MDF Main Distribution Frame
Product Overview

MDF Main Distribution Frame High Density 100 Pairs Protection Connection Terminal Block designed for secure and reliable telecommunications distribution.

  • Size (H x W x D): 175mm x 140mm x 152mm (100 Pairs)
  • Environment condition: -5-40°C; Relative humidity <85% (+30°C); Atmospheric pressure: 70-106KPa
  • Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N
  • Anti-burn performance: PBT (UL94V-0) or anti-burn ABS (UL94V-0), combustibility achieved GB/T 5169.7-1985 standard
  • Insulated resistance: no less than 1,000M ohm between disjunct connections under standard atmospheric pressure
  • Intermediate resistance between reed terminators: no more than 7m ohm under standard examination condition
  • Intermediate resistance: no more than 3m ohm under standard examination condition
  • Dielectric strength: according to industry standard
  • Specification: 100 pairs
  • Life: durability 200 cycles
Product Images

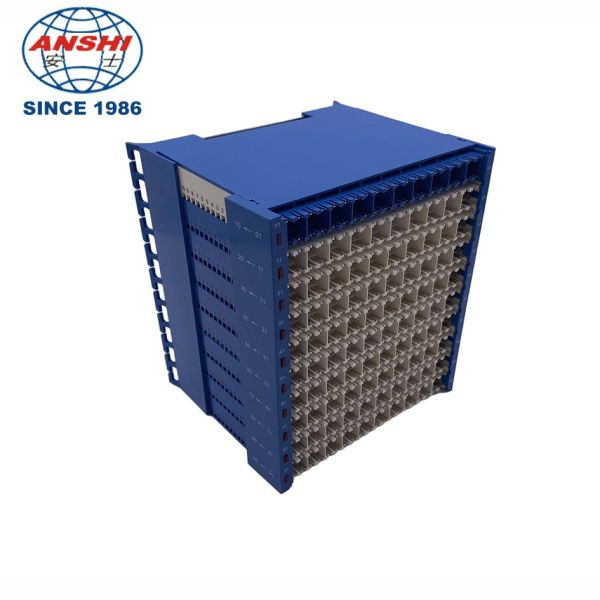

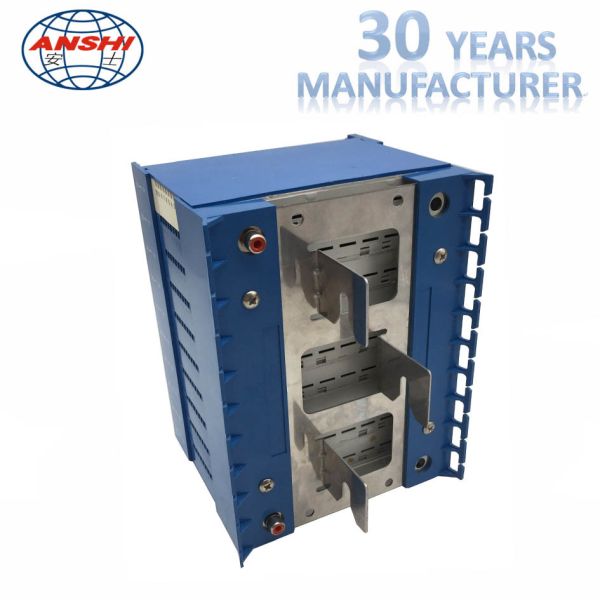

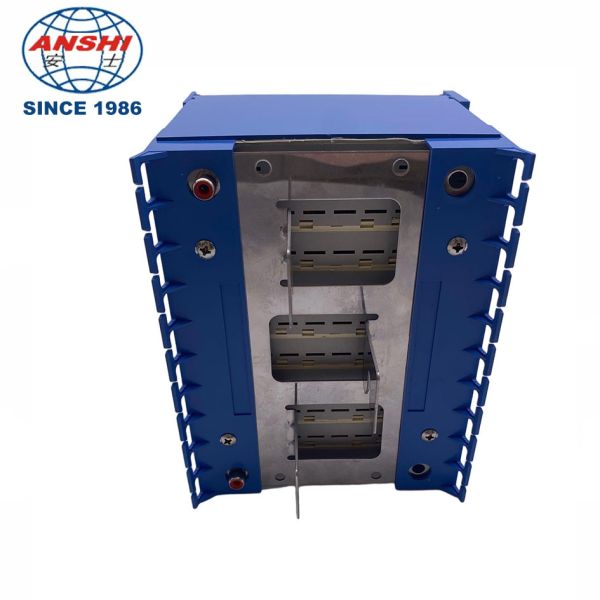

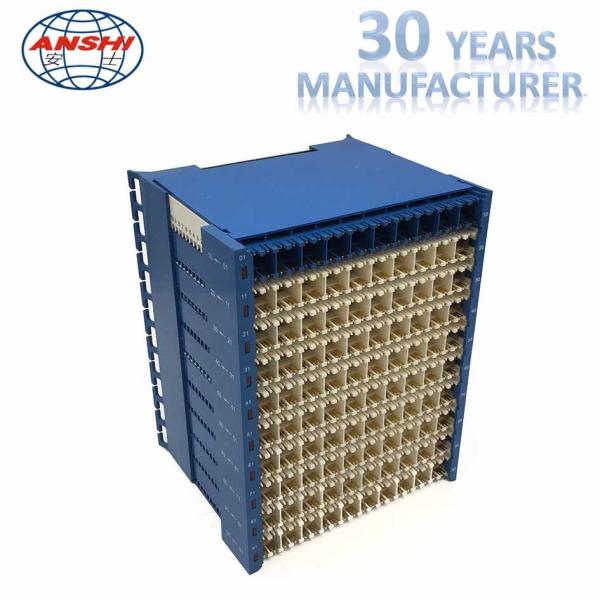

High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection High Density 100 Pairs MDF Main Distribution Frame Terminal Block with Voltage and Current Protection
High Density MDF Specifications
Specification Dimension (mm)
1200 Pairs 2200*700*1360
3000 Pairs 2200*1350*1360
4000 Pairs 2700*1350*1360
5000 Pairs 3000*1350*1360
6000 Pairs 3500*1350*1360
