Specifications
Application :
Telecommunication.
Type :
Rack Mount
structure :
PCB
Material :
PBT
Brand Name :
ANSHI
Model Number :
AS-MDF-XHW-U
Certification :
ROSH, ISO9001
Place of Origin :
China
MOQ :
1
Price :
$0.9~$1.5
Supply Ability :
10000pcs per week
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
1~25 Work Day
Packaging Details :
100 pieces/package
protect :
voltage and current
Product Name :
Protector Unit for Main Distribution Frame
Description

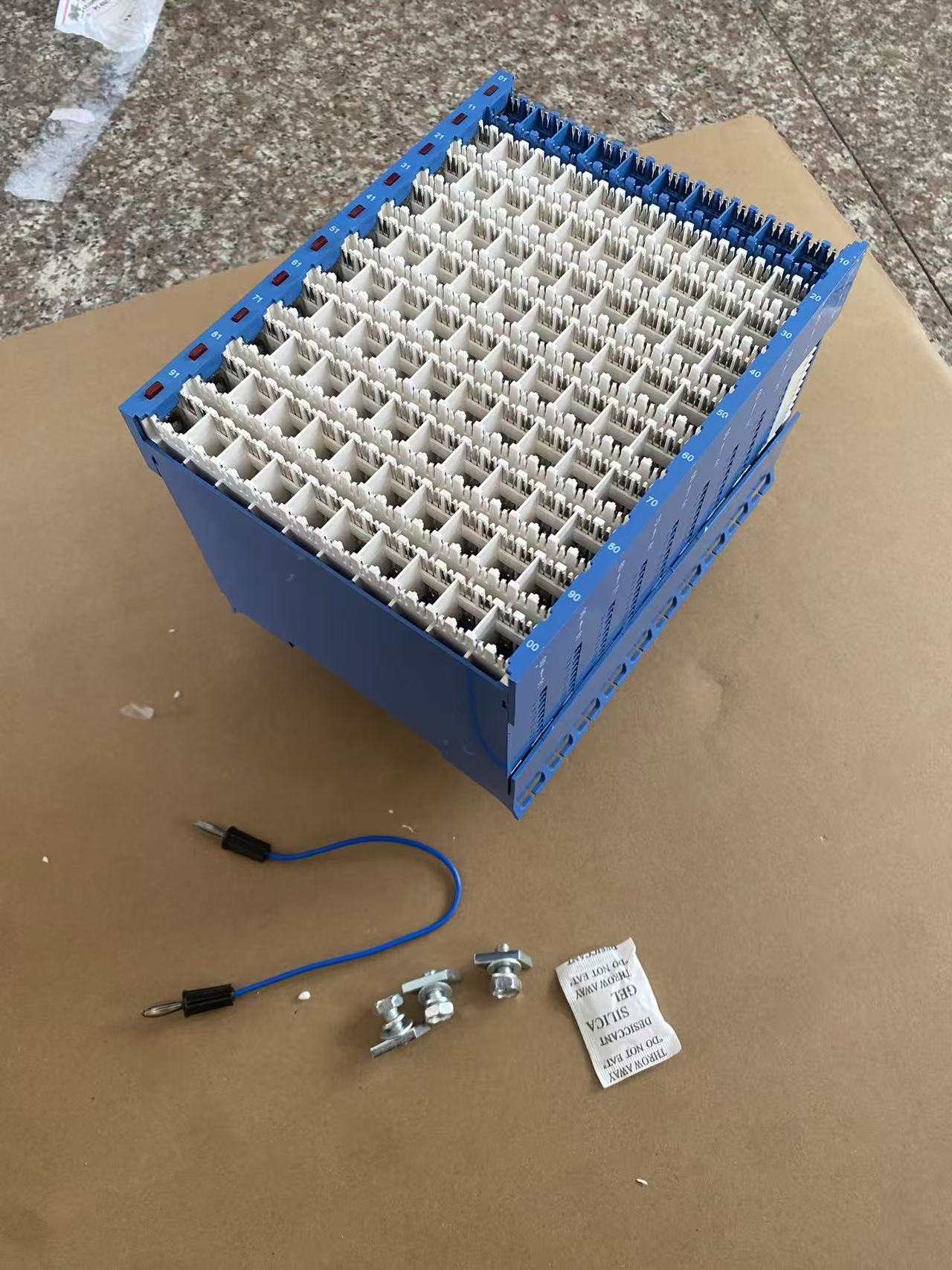

1 Pair Protective Unit LPM for 100 Pairs Cable Side Terminal Block

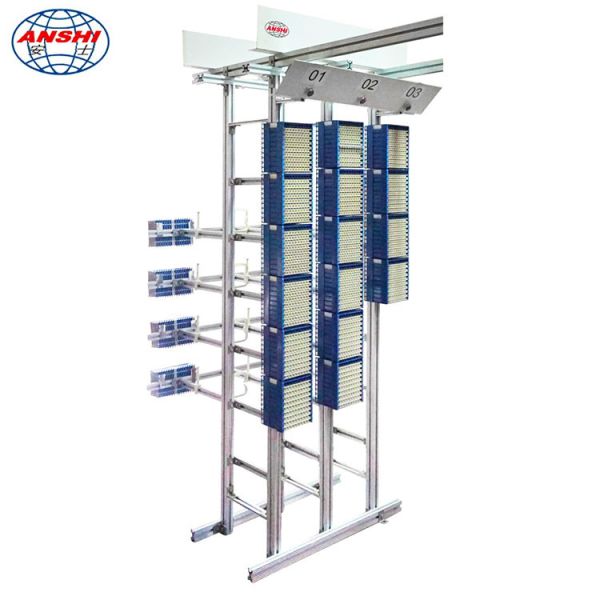

MDF Main Distribution Frame with Over-Voltage & Over-Current Protection

Used For AS-MDF-XHW-P: 100 Pairs Cable Side Terminal Block (Can completely replace Huawei's JPX202-FA8-72)

This 1-pair unit provides reliable line protection with sound and light alarm features, including self-resuming fail protection.

Key Features
  • Perfect and reliable over-voltage and over-current protection
  • Sound and light alarm system with self-resuming fail protection
  • High-performance anti-burn materials: PPT (UL94V-0) or anti-burn ABS (UL94V-0)
  • Combustibility meets GB/T 5169.7-1985 standard
Technical Specifications
Parameter Value
DC puncture voltage 190-260V
Pulse puncture voltage ≤800V (1KV/us voltage increasing rate)
Insulation resistance 1000MΩ (between any two separable modules)
Normal temperature resistance ≤22Ω (R≤2Ω for over-current protection)
Contact resistance ≤3mΩ
Contact resistance between reeds ≤7mΩ
Resistance to voltage ≥1000V(AC)/1min without breakdown or arc
Current Response Times
  • 500mA to 150mA: t<20s
  • 1A to 500mA: t<1.3s
  • 2A to 500mA: t<0.5s
  • 3A to 500mA: t<0.2s
  • 2.5A: t<15s (220V/AC)
Compatibility

Designed for use with AS-MDF-XHW-P 100 pair MDF terminal block.

Our Services
  • Professional manufacturer with 100% product testing
  • Rapid customer solutions - delivered in days, not weeks
  • Attentive customer service with careful attention to detail
  • Specific inquiries addressed within 24 hours
  • Cost-effective solutions to maximize customer benefits
