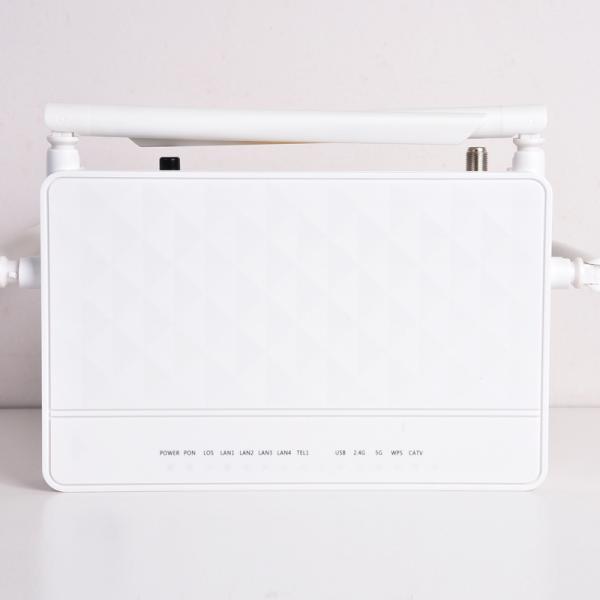

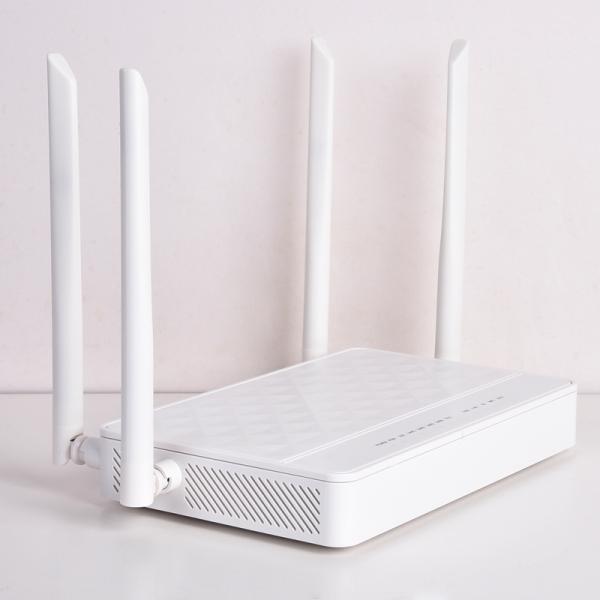

AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI
Specifications
Brand Name :
ANSHI
Model Number :
AS-ONU29
Certification :
ISO9001, SGS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
Negotiable
Price :
Negotiable
Product name :
4GE+VOIP+CATV+2.4G&5.8G WIFI
Optical signal access :
1*GPON/EPON
Size :
205*140*30mm
Indicator light :
POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL1/USB 2.4G/5G/WPS/CATV
Weight :
300g
Power adapter input :
100V～240V AC，50Hz～60Hz
PowerSupply requirement :
12V DC，1.5A
Power consumption :
<10w
Working temperature :
-10°C ~ +45°C
Environment humidity :
5% ~ 95% (Non-condensing)
Description

AS-ONU29 4GE+VOIP+CATV+2.4G&5.8G WIFI

Product Overview

AS-ONU29 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.AS-ONU29 is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.

Features

♦ Support EPON/GPON mode and switch mode automatically

♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Bi-directional FEC
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface, and Maximum rate 866Mbps 5.8GHz
♦ Wireless interface, 2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP
♦ Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
♦ Support CATV interface for Video Service,support to turn off CATV functionality
Highlights
♦ Dual band Wi-Fi, Superior performance of Wireless 11n and 11ac Transmission
♦ Compatible with 95% Third-party OLTs (Including Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support CATV interface for Video Service,supporting remote control by OLT.
♦ Support ONU auto-discovery/Link detection/remote upgrade of software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server configuration
♦ Support Port Forwarding and Loop-Detect
