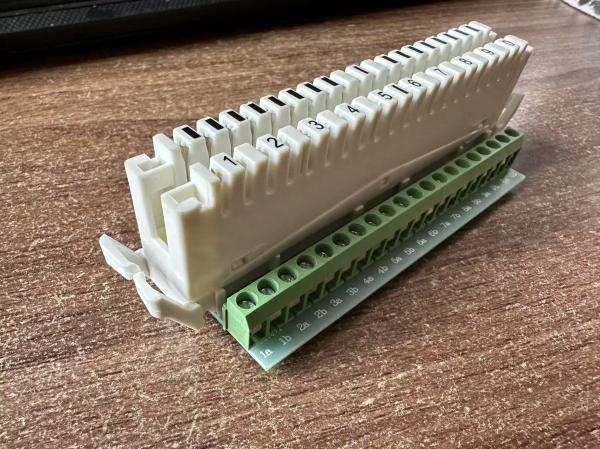

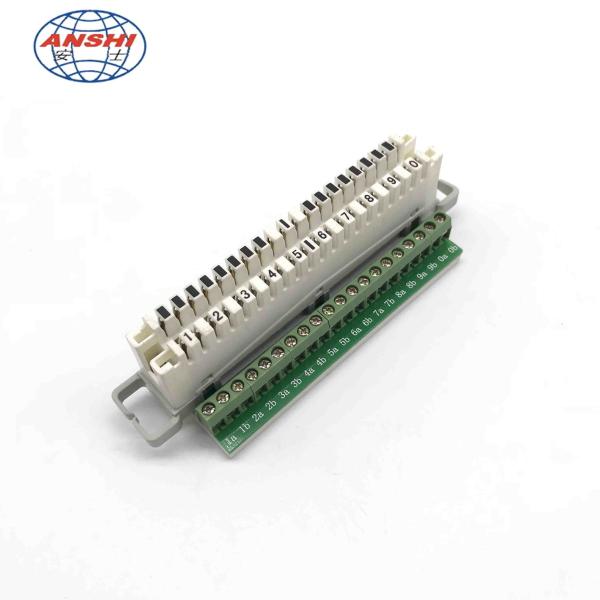

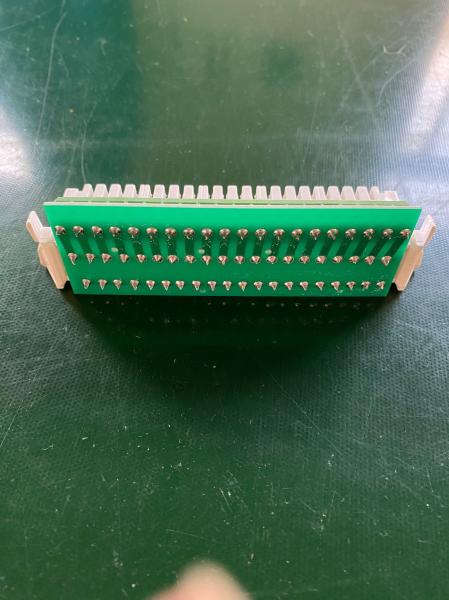

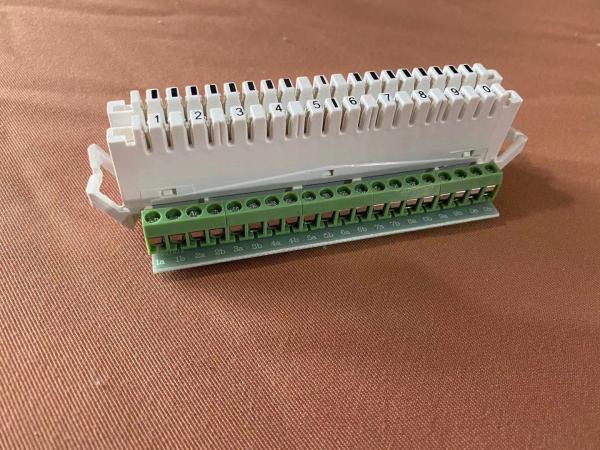

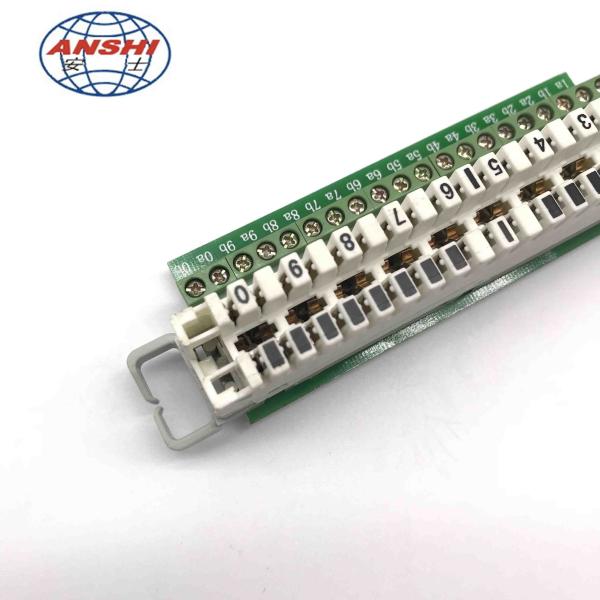

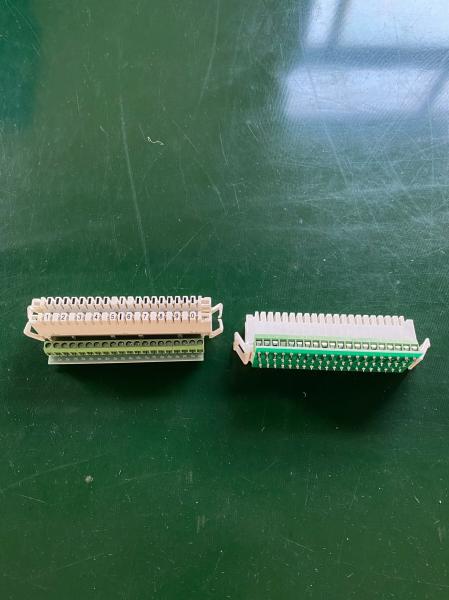

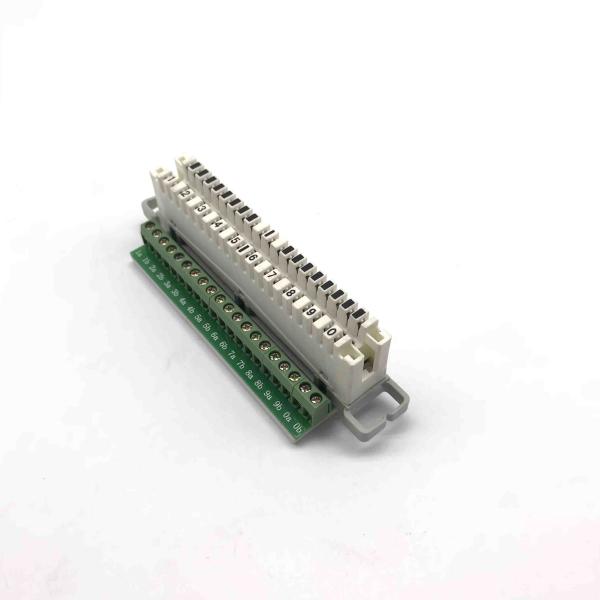

20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
Specifications
Brand Name :
ANSHI
Model Number :
XL-011L
Certification :
ISO9001, CNACL, SGS, DAS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
100 pcs
Price :
Negotiable
Supply Ability :
10000 pcs per week
Packaging Details :
CARTON:53*24*24CM
Material :
ABS or PBT
Color :
White/Grey/Green
Contact :
Iron, Brass or Bronze
Type :
PCB Type
Installation :
Back&profile mount
Application :
Cabling
Description

20 pole Krone Type PCB Type Connection Module LSA PLUS Krone Green Broad

Pcb Type

LSA-PLUS disconnection module 2/10 0.092 kg 1 piece
With additional screw terminals on the jumper side,
20-pole, with a width of 36 mm, the module occupies
Two module slots in the back-mount frame.
1. With PCB and screw block.
2. Internal diameter of wire: 0.4mm-0.65mm.
3. Color: Grey base, white body.

Material:
1. Plastic Parts: PBT-V0 UL94 or ABS.
2. Contacts Pin: 0.5mm Phosphor bronze with silver-plated.
3. Silver-plated: 30U or Client Request.
Size: 128mm× 37mm× 36mm.

Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance:7 mohms maximum

Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s

20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
