Specifications
Brand Name :
ANSHI
Model Number :
AS-ODF-FDB-8
Certification :
ROHS, ISO9001
Place of Origin :
China
MOQ :
10
Price :
$5~$10
Supply Ability :
2000pcs/Day
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
1-25 Work Day
Packaging Details :
1 piece/inner box
product name :
ftth distribution box
material :
PC+ABS or ABS
protection grade :
IP65
install :

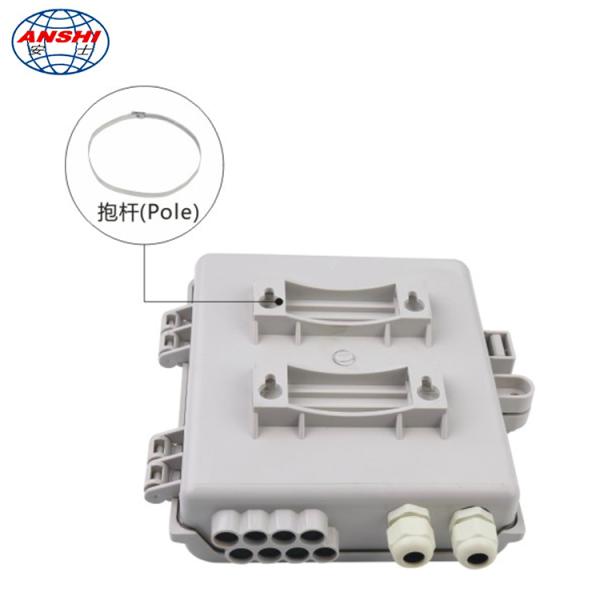

wall mounting type and pole
environment :
outdoor or indoor
Dimension :
210*205*55
Sealing method :
With key
function :
waterproof
capacity :
8 core SC
Application :
FTTH system
Description

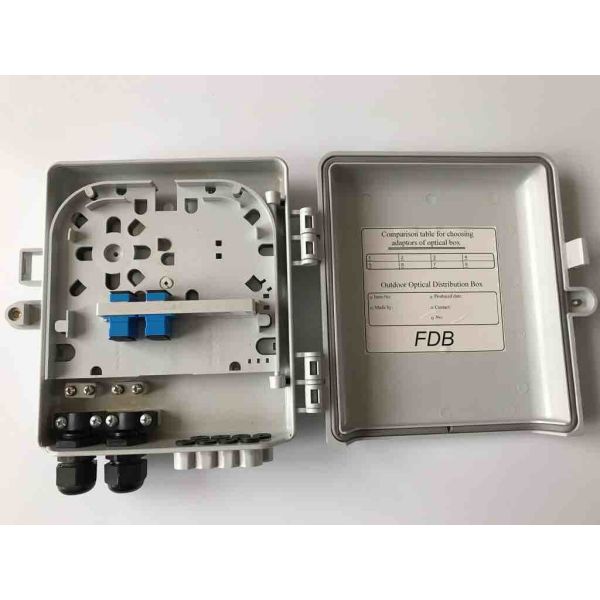

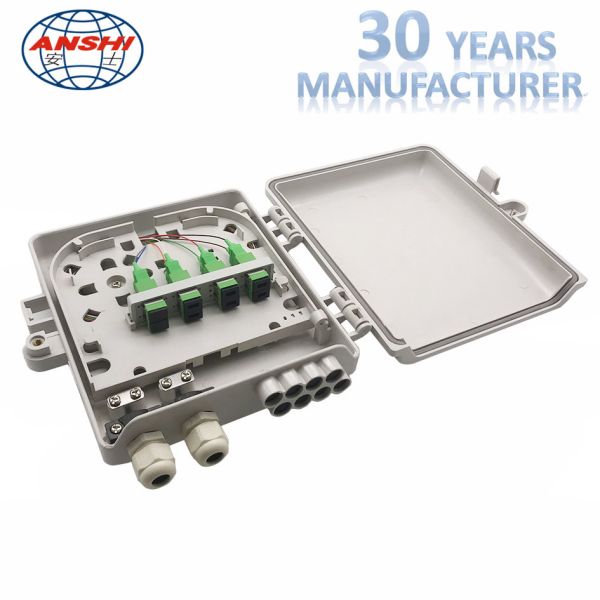

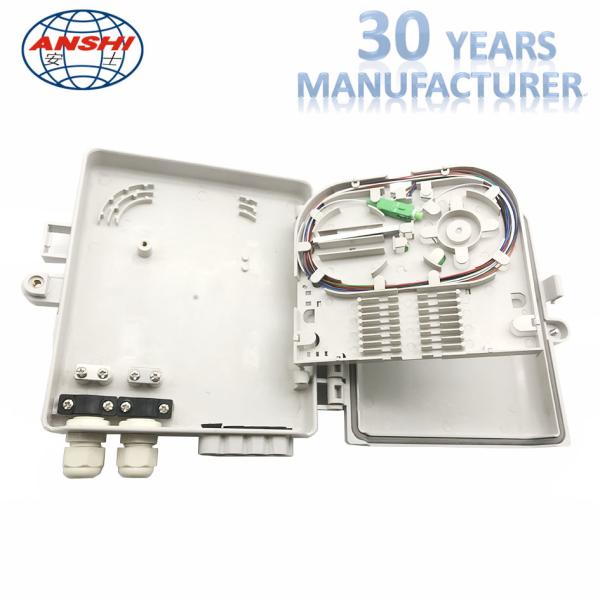

8 Cores Outdoor Wall Mount Fiber Distribution Box FTTH Distribution Terminal Box
Product Description
This 8-core fiber optic distribution box is designed for the distribution connection of cable and fiber optic communication devices. It facilitates the transfer of optic signals from drop cables to pigtails through splicing within the box. Ideal for protective cable connections and fiber optic termination in fiber access networks, this wall-mounted unit is suitable for outdoor, corridor, weak current silo, or villa connection points with an 8-core capacity.
Key Features
  • Durable ABS material or PC/ABS Alloy construction ensures strength and lightweight properties
  • Water-proof design for reliable outdoor performance
  • Easy installation with included wall mount kits
  • Tool-free adapter installation with dedicated adapter slots
  • Splitter-ready design with dedicated space for adding splitters
  • Space-efficient double-layer design:
    • Lower layer for splitters and excess fiber storage
    • Upper layer for splicing, cross-connecting, and fiber distribution
  • Cable fixing units for secure outdoor optical cable installation
  • IP65 protection rating for dust and water resistance
  • Dual cable management accommodates both cable glands and tie-wraps
  • Security lock included for protection
Technical Specifications
Parameter Value
Working Temperature -20°C to +60°C
Relative Humidity ≤90% at +30℃
Atmospheric Pressure 62-106Kpa
Insertion Loss ≤0.3dB (PC), ≤0.3dB (APC)
Return Loss ≥40dB (PC), ≥50dB (UPC), ≥60dB (APC)
Included Accessories
  • Splice cassette and cable management tools
  • Installation nuts and bolts
  • Heat shrinking tube
  • Rubber seal
  • Hose clamp
Applications
  • FTTH (Fiber to the Home)
  • FTTB (Fiber to the Building)
  • FTTC (Fiber to the Curb)
  • Telecommunication Networks
  • Local Area Networks
  • CATV Systems

8 Cores Outdoor Wall Mount Fiber Distribution Box ftth distribution terminal box8 Cores Outdoor Wall Mount Fiber Distribution Box ftth distribution terminal box

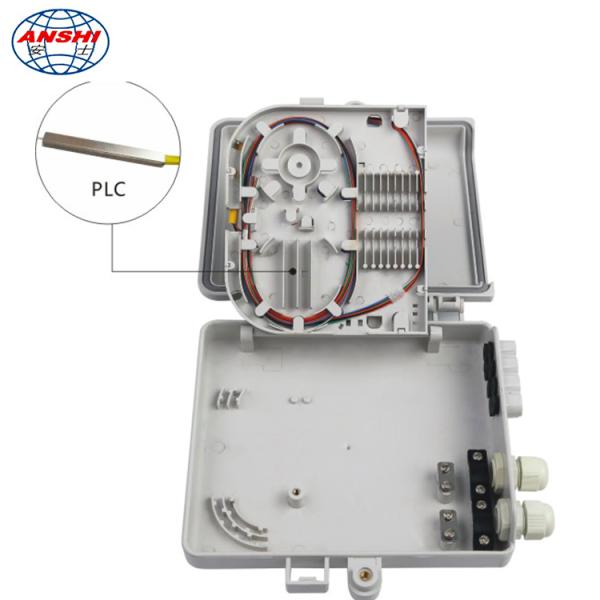

CAN Install 1 pieces 1*8 Mini PLC Splitter or 8 cores Pigtail +Adapter
