Specifications
Brand Name :
ANSHI
Model Number :
AS-ODF-FDB-24
Certification :
ROHS, ISO9001
Place of Origin :
China
MOQ :
1
Price :
$8~15
Supply Ability :
20000pcs/week
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5~30 Days
Packaging Details :
1 pc/inner box
capacity :
24 core Fiber Optic Termination Box
material :
PC+ABS or ABS or PP
lock :
The high-end lock
protection grade :
IP55
install :
wall mounting type and pole
environment :
Outdoor
Application :
FTTH, FTTx
Dimension :
330*225*90mm
Description
FTTH FAT Box Fiber Distribution Box 24 Core 330×225×90mm
Product Overview

This 24-core fiber distribution box terminates outdoor optical cables with capacity for 24 adapters to connect drop cable pigtails. Designed for FTTH networks, it supports mini splitters and operates effectively in both indoor and outdoor environments.

Key Features
  • Durable Construction: PC/ABS OR ABS OR PP material provides strength while maintaining light weight-Different material lead to different level price, to meet different customers.
  • Weather Resistant: IP54 protection with waterproof design for outdoor use
  • Secure Installation: Includes lock mechanism and wall-mount kit
  • Optimized Design: Double-layer configuration for efficient fiber management
  • Flexible Configuration: Adjustable adapter slots accommodate various pigtail sizes
  • Complete Cable Management: Includes fixing units, routing paths, and bend radius protection
  • Versatile Compatibility: Supports SC/LC/FC/ST Adapters
Technical Specifications

Capacity: 24 fibers

Dimensions: 330×225×90mm (L×W×H)

Port Configuration: 2 inlet ports, 24 outlet ports

Splitter Support: Compatible with 1×4/8/16 and 2×4/8/16 splitters

Material: High-strength engineering plastic

Installation: Wall or pole mounting

Frequently Asked Questions
Can I order samples of this product?
Yes, we welcome sample orders to evaluate quality. Mixed samples are acceptable with a minimum of 1pc.
What is the lead time for production?
Samples require 3-5 days, while mass production takes 1-2 weeks for orders exceeding standard quantities.
What shipping methods do you offer?
We ship via DHL, UPS, FedEx or TNT (3-5 days delivery). Air and sea freight options are also available.
What is your product warranty?
We provide 1-2 years warranty on all formal orders.
How do I place an order?

1. Share your requirements or application details

2. Receive our quotation based on your specifications

3. Confirm samples and place deposit for formal order

4. We arrange production upon order confirmation

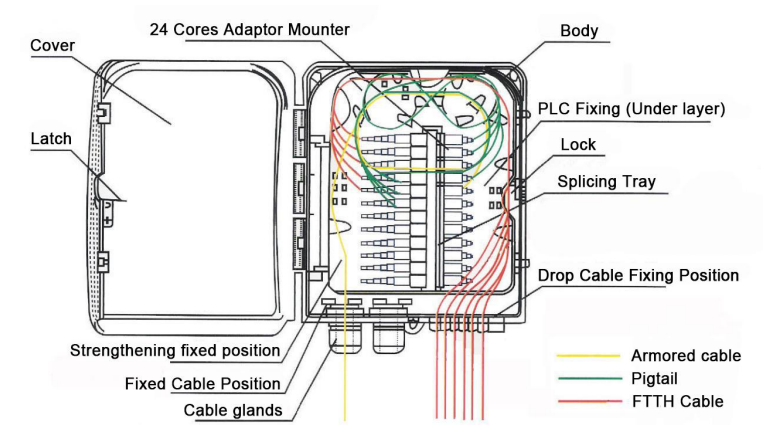

ftth distribution terminal box configuation

FTTH FAT Box Fiber Distribution Box 16 Cores 24 Core 330 * 225 * 90 Light Weight / Small Size

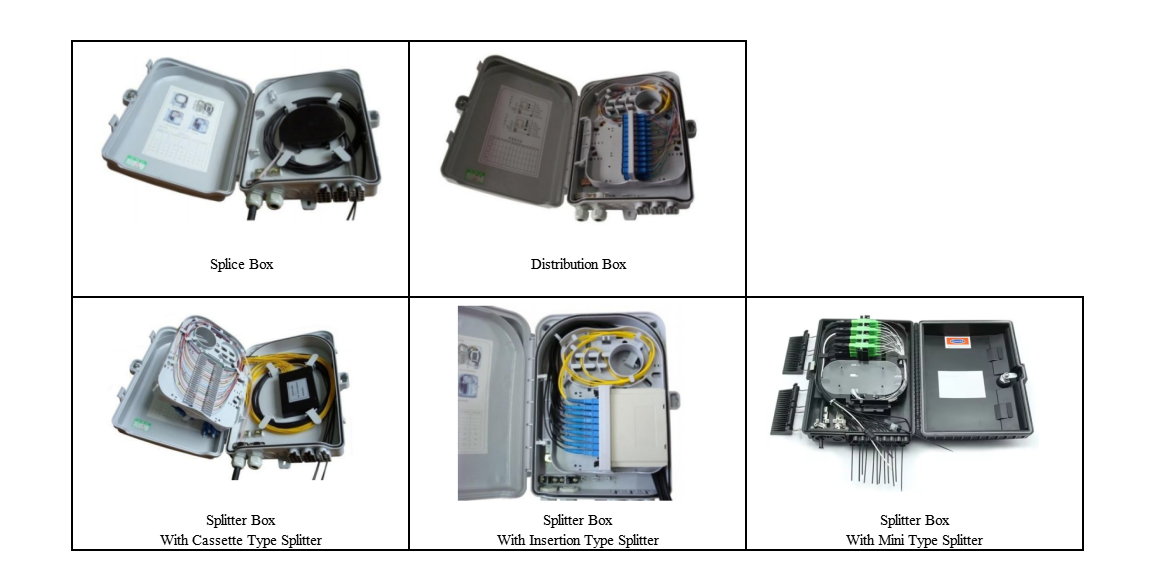

Different Application of this box





FTTH FAT Box Fiber Distribution Box 16 Cores 24 Core 330 * 225 * 90 Light Weight / Small Size
