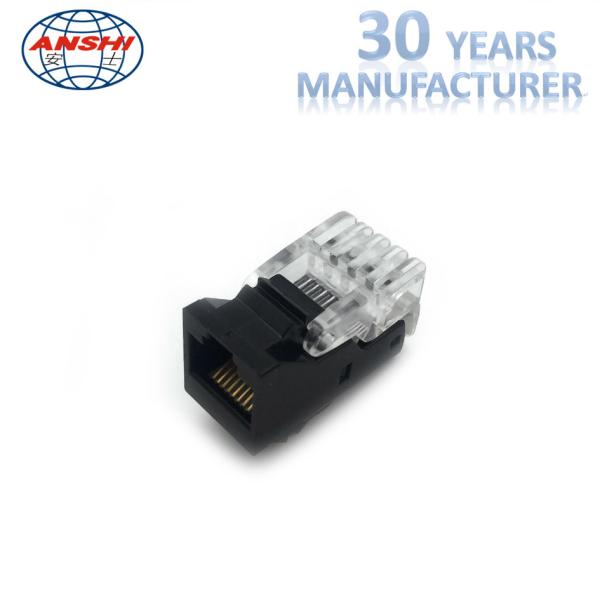

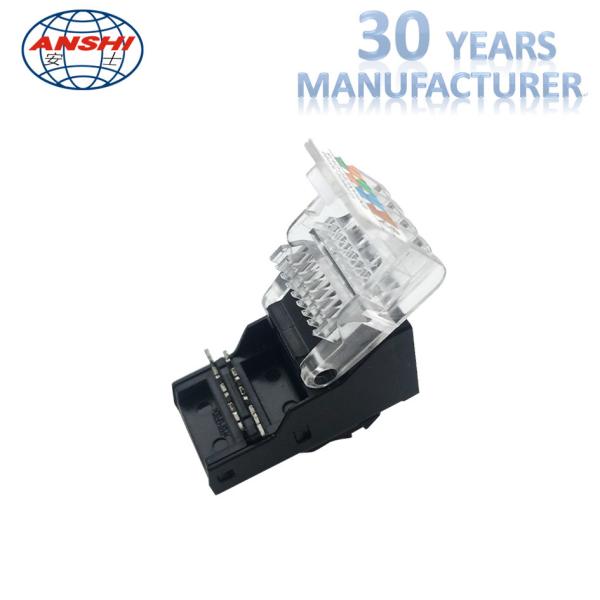

Cat5e RJ45 Keystone Jack UTP Punch Down Toolless Keystone Jack

The RJ45 Cat5e keystone jack module is used for network communication in telecommunication field,together with patch panel,faceplate,patch cord,etc.

Features

• Contact resistance: <2.5m Ohm
• Contact resistance of linker and lead: <2.5m Ohm
• Insulation resistance: >1,000M Ohm
• Withstand test voltage: DC 1,000V
• Times of repetitive use: >=750
• Designed and manufactured in accordance with ISO / IEC11801 standards
• Design exceeds normal requirements
• Colored component combinations for convenience of identification and network management
• Many other message modules available for wiring arrangements
• Compatible with AMP keystone

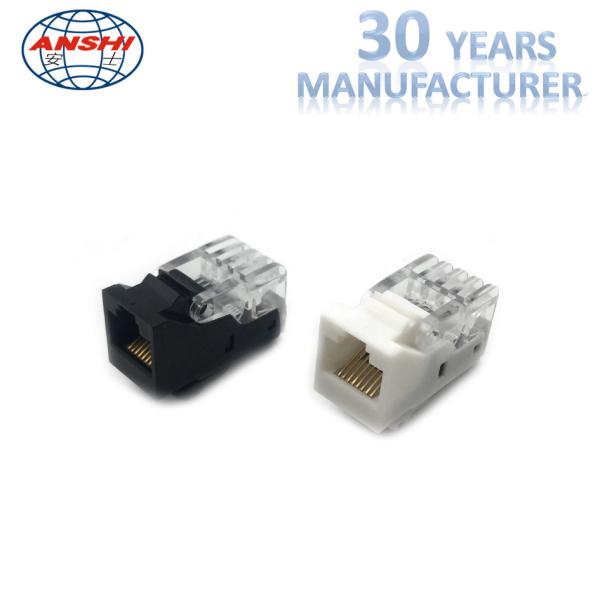

• Colors available: white, yellow, ivory, red, black, blue

Specifications

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

Angle: 90 Degree
Termination: 110 Type

Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.
