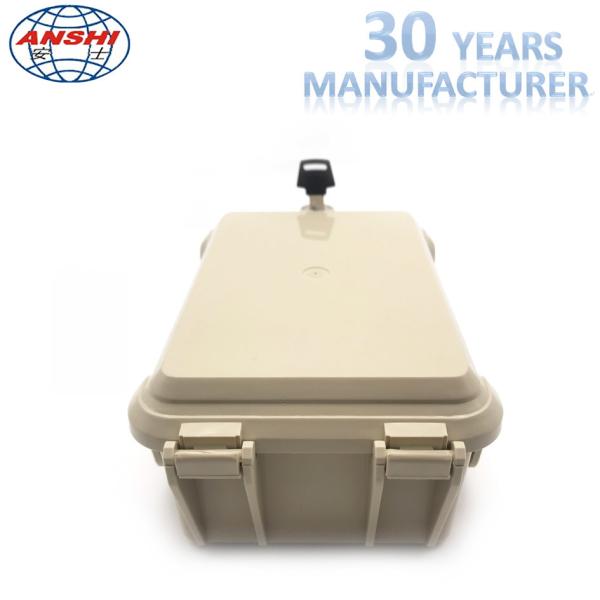

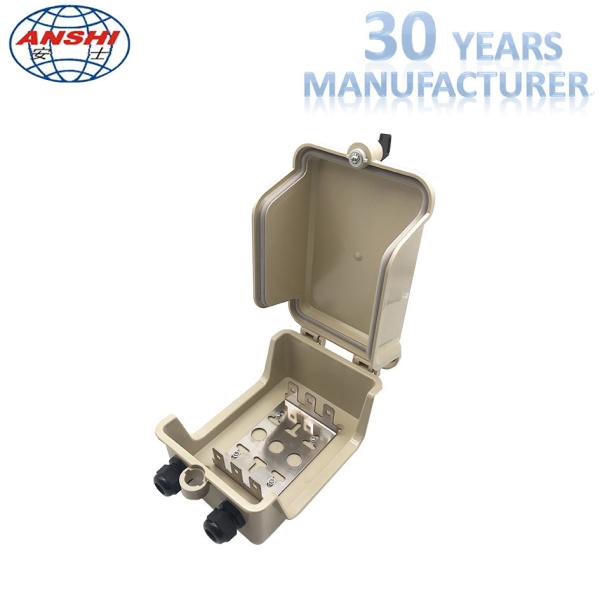

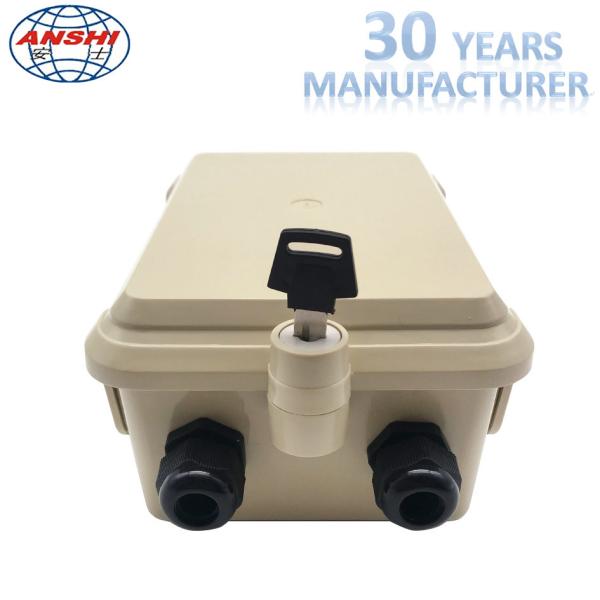

OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS
Specifications
Brand Name :
ANSHI
Model Number :
AS-DB30W
Certification :
ISO 90001, SGS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
Can discuss
Price :
Negotiable
Supply Ability :
35000 Pieces per Month
product :
Copper Outdoor termination box
Material :
ABS or PC/ABS alloy
Color :
Grey or Semi Yellow
Type :
For 10 / 20 / 30 pairs distribution box
Lock :
Key Lock
Dimension :
210*135*85mm
Application :
10 Pairs LSA Module
Capacity :
10 / 20 / 30 Pairs
IP Rating :
IP30
Description
OUTDOOR MDF TELEPHONE BOX FOR 10 20 30 PAIRS
Description:

AS-DB Series Outdoor External Distribution Points (telephone junction box outdoor) are of 10, 20, 30, & 50 & 100 pairs Insulation Displacement. Contact (IDC) type. They are used for Indoor wire termination in buildings.The AS-DB outdoor Distribution Points can be installed in two ways:

1) Direct wall installation

2) Pole Mount

When it is embedded in the wall, an additional shell is supplied and used.
Models, specifications and dimensions are as follows:

Model Specifications Structural Dimensions (H*W*D)
AS-DB30W 10/20/30P Common wall installation 210*135*85mm
AS-DB50W 50P Common wall installation 220*190*87mm
AS-DB100W 100P Common wall installation 380*185*113mm


50 Pairs with 5 Ways Back Mount Frame

Below image is with 5 Pieces * 10 Pairs Disconnection Module (Assembled)

OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS

100 Pairs with 10 Ways LSA back Mount Frame


OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS


Optional:
  • Can Install with 10 Pairs Krone Type Module (Disconnection Module, Connection Module, Switching Module
  • Can Install with 10 Pairs 3 Pole Protection Magazine. (With failsafe or without failsafe)
OUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRSOUTDOOR MDF TELEPHONE DISTRIBUTION BOX FOR 10 20 30 PAIRS

Package: 1 pc/1 inner box, normal export package
