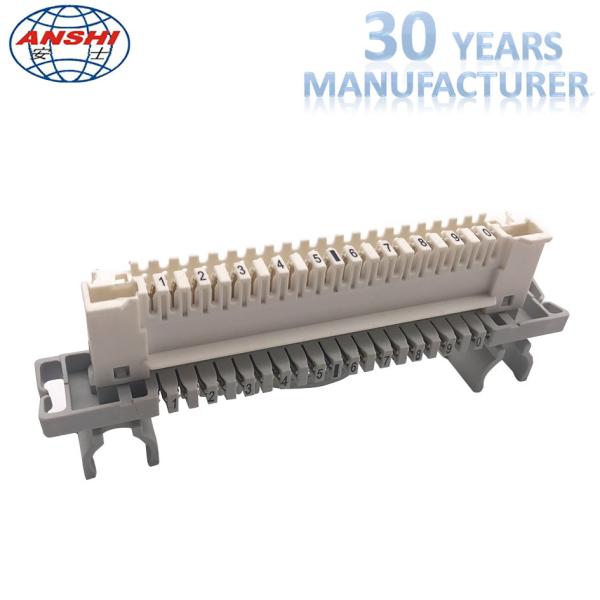

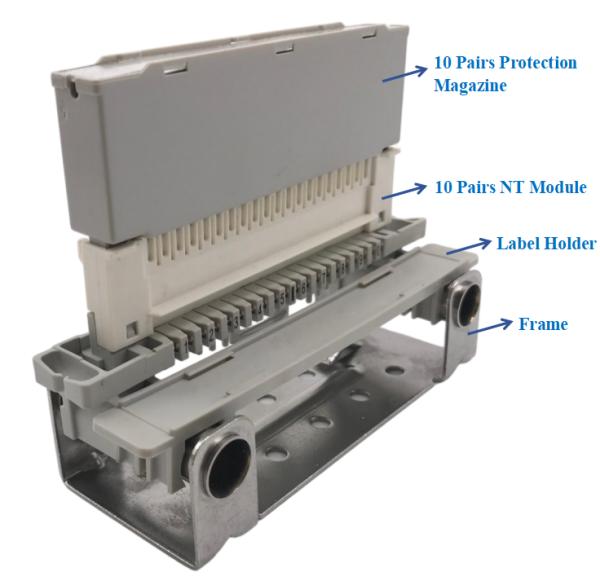

Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
Specifications
Brand Name :
ANSHI
Model Number :
XL-011NT1
Certification :
ISO9001, CNACL, SGS, DAS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
100 pcs
Price :
$3~$10
Supply Ability :
10000 pcs per week
Packaging Details :
CARTON:53*24*24CM
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacity :
1 Set 10 pairs NT Module with protection magazine
Color :
White/Grey
Contact :
Iron, Brass or Bronze
Application :
Telecommunication
Type :
NT module
Installation :
Back&profile mount
Description

Krone Type NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base

90 Degree punch down Type

High Density

10 Pairs NT Module is characterized in particular by its extremely high connection density. NT series is ideally suited to applications where a large number of copper wires have to be connected or distributed and there is limited space available, e.g. when installing in cross-connection cabinets for new broadband networks with ADSL and/or VDSL technology. Thanks to its compact, space-saving design and its hidden cable side, NT series is also idea for use in collocation areas.

Key Specification:

  1. Dimension: LxWxH:121.50x17.50x42.50mm
  2. Material:

    Plastic: PBT, flame retardant 94V-0

    Contact: Phosphor Bronze, sliver plating 1um

  3. Envionmental condition: -50~40 degree Celsius

    Relative humidity ＜85% (+30 degree Celsius)

    Atmospheric pressure: 70-106KPa

  4. Pulling-out force: not less than 25N
  5. Capacity: 10 Pairs
  6. Type: disconnection, 90 degree (In and Out)
  7. Life: durability 200 cycles
  8. Suitable diameter:0.4-0.6mm

Advantages and benefits:

  1. Quick connection technique that has been tried and tested worldwide
  2. Reliable and economical networking
  3. Standardized mounting dimensions enable universal mounting
  4. Compact and space-saving
  5. Extremely easy to handle when mounting, minimizing installation work
  6. Huge savings on time and costs
  7. Satisfied users
  8. Quality that has been proven over decades
  9. Universal suitablility for internal and external use
  10. Low operating and maintenance costs
  11. Integrated cable management

Drawing:

Krone Type 90 Degree NT Module 1 Set, NT Module, Protection Magazine, Back mount Frame Base
