12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
Specifications
Model Number :
fiber optic tool kit
Place of Origin :
China
MOQ :
10 pieces
Price :
$50.00/pieces 10-49 pieces
Brand Name :
ODM/OEM
Certification :
RoHS, CE
Payment Terms :
T/T, Western Union
Type :
Enterprise Wireless Access Point
Material :
Stainless steel
Stainless Steel Strapping Thickness :
4.6mm/7.9mm/10mm/12mm/12.7mm/15mm/16mm/19mm
Length Per Reel :
30m / 50m
Banding Buckles Width :
10mm/12mm/16mm/19mm
Banding Buckles Thickness :
1.00mm/1.20mm/1.40mm
Description

12pcs FTTH Fiber Optic Tools Kit with Fibra Optica Power Meter Visual Fault Locator Kit de fibre optique

Description

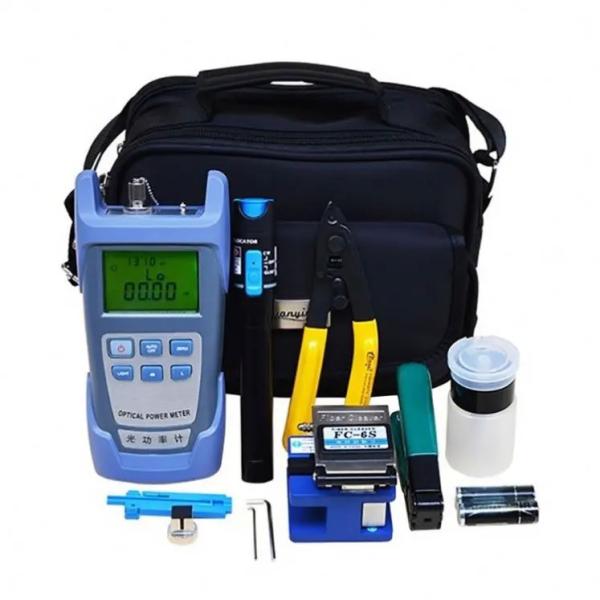

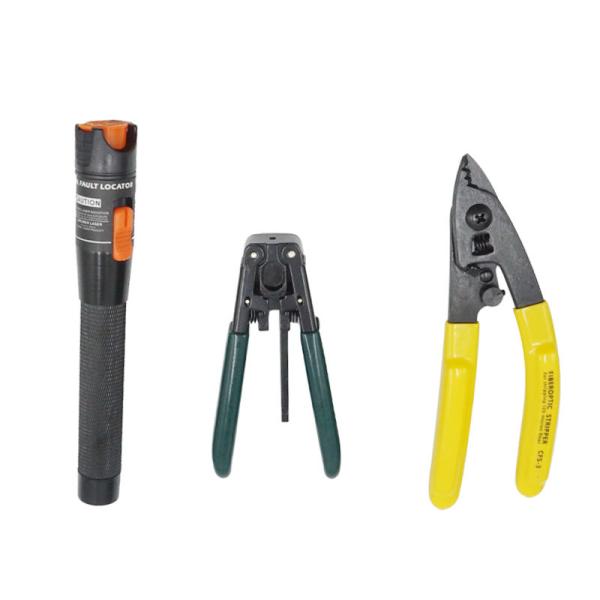

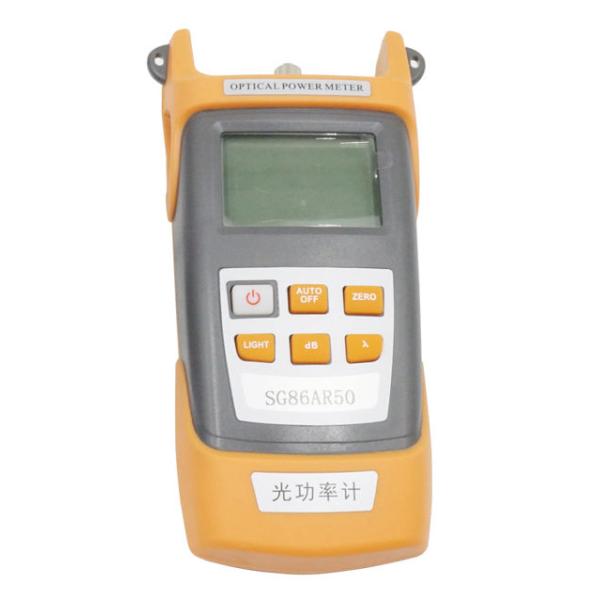

1.This is a Fiber Optic FTTH Tool Kit. 2.Optical Power Meter:Support 7 wavelength testing,support timing shutdown, with background lighting. 3.5km Red Light Pen:Sufficient light source,stable performance,metal material,universal interface. 4.Wire Stripper:Carrying scale,suitable for stripping the outer skin of 2mm and 3mm indoor optical cables. 5.Fiber Cleaver:Automatic springback, adopt original imported slide rail, ensure the stability and service life othe cutter. 6.Miller Clamp:Easy to scratch the coating,Do not damage the exposed fiber. 7.Fixed length device:Optical fiber quick connector essential tool cold connection, connection dual purpose. It is

mainly used to peel rubber cover. 8.Alcohol Bottle:180ML pressed.Spill proof,drop proof.

Optical Power Meter Connector Type

SC/FC/ST

Power Meter

(-70)-(+10)dBm

Wavelength

820/980/1300/1310/1490/1550/1625/1650nm

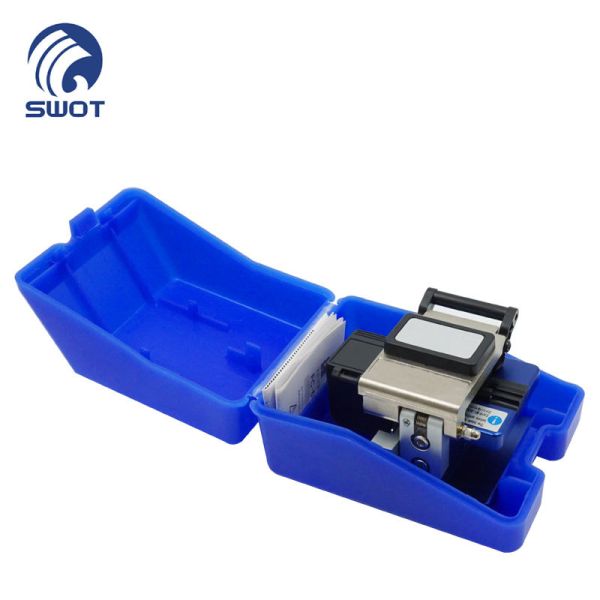

Fiber Cleave

FC-6S

Applicable fibers

singlemode

Fiber Diameter

125um

Coating Diameter

250um-900um

Typical Cleave Angle

Within 1 Degress

Cleave Length

9-18mm(single Fiber-0.25mm coating)

10-18mm(single Fiber-0.9mm coating)

Blade Life Time:36000Cleave(3000 per blade position)

Visual Fault Locator

5MW

Fiber Stripping pliers

Two Hole Stripper Plier For Miller

Warranty

1year
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
Product Description

Optical Cable Fittings Hook

--Stainless Steel Strapping and Banding Buckles
--Solution of optical cable laying system

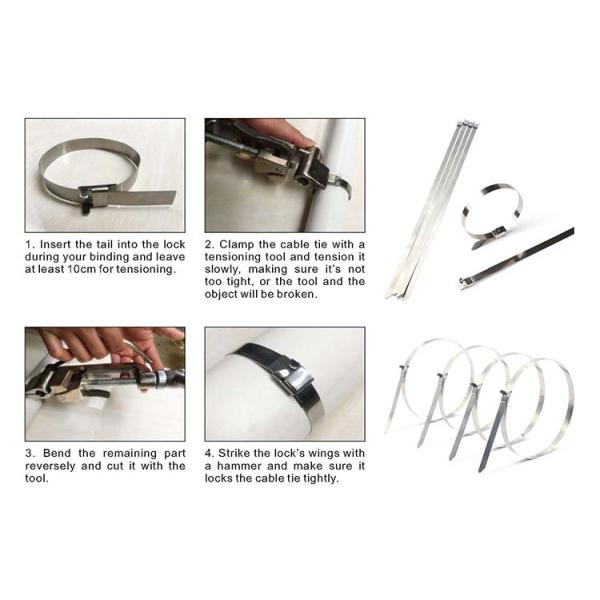

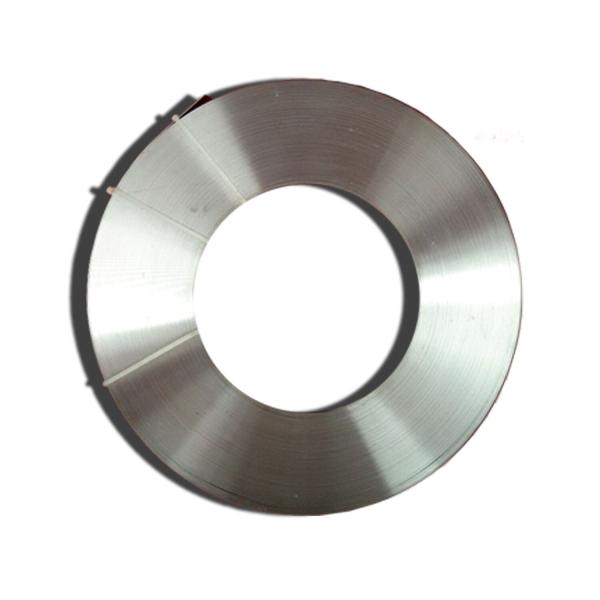

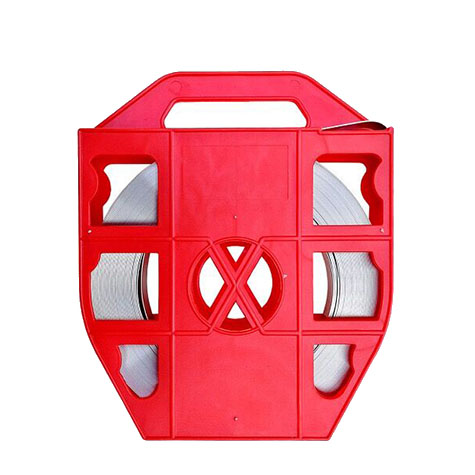

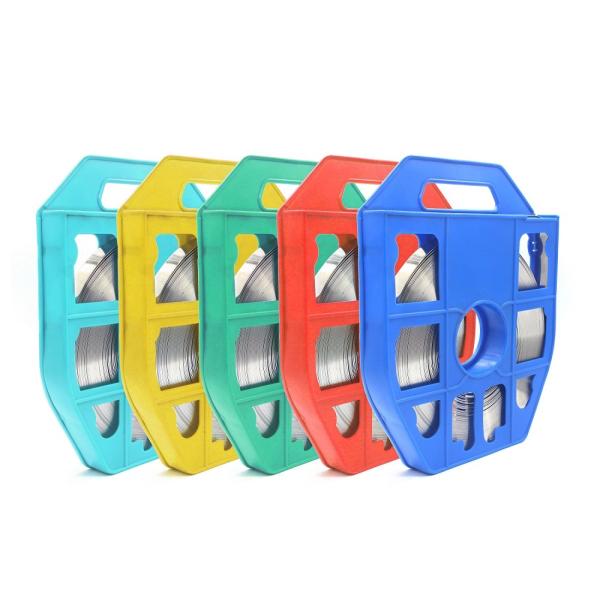

Stainless Steel Strap, which is also called Stainless Steel Band as a fastening solution was designed to attach industrial
fittings, anchoring, suspension assemblies and other devices to the poles.

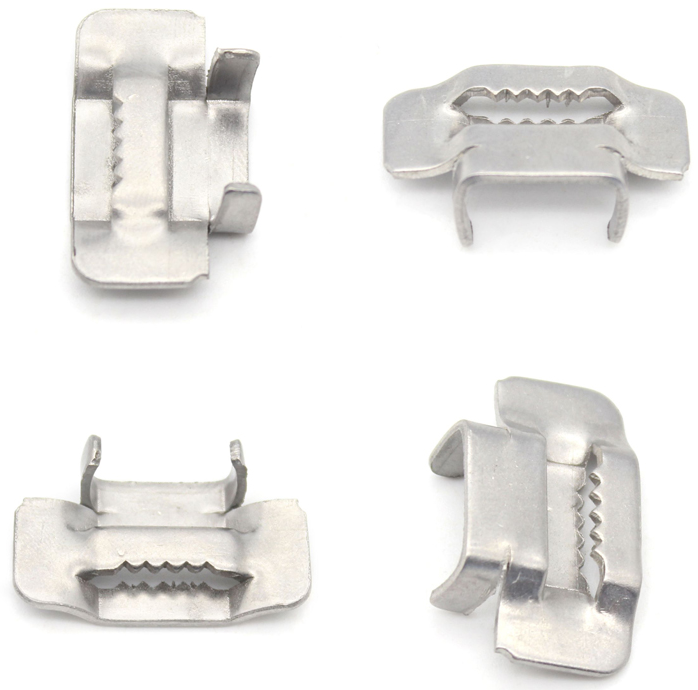

Stainless Steel Banding Buckles, other called Stainless Steel Clips, are used in fastening solutions with band strapping to attach industrial fittings.
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
Specifications
Material
Stainless steel
Stainless Steel Strapping Width
4.6mm/7.9mm/10mm/12mm/12.7mm/15mm/16mm/19mm
Stainless Steel Strapping Thickness
0.26mm/0.35mm/0.6mm/0.75mm
Length Per Reel
30m / 50m
Banding Buckles Width
10mm/12mm/16mm/19mm
Banding Buckles Thickness
1.00mm/1.20mm/1.40mm
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
Related Products
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional

Description

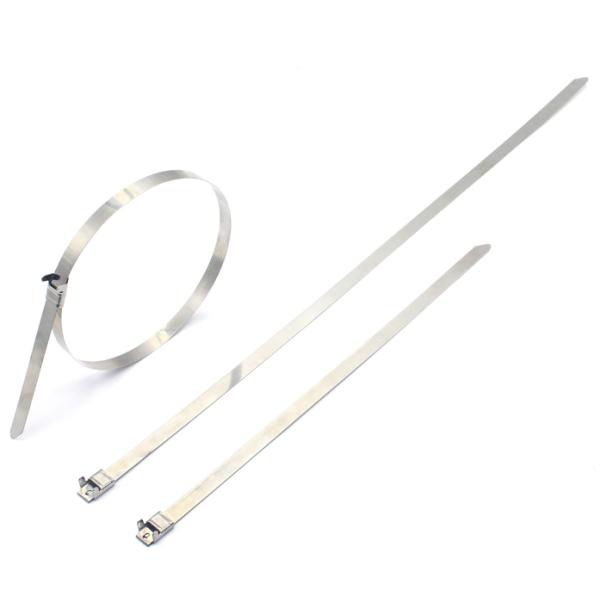

The stainless steel cable ties are commonly used where they would be subjected to heat, as they can easily withstand higher temperatures than standard cable ties. They also have a higher breaking strain and they do not deteriorate in harsh environments.
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
Recommend for you
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
12pcs FTTH Fiber Optic Tools Kit Stainless Steel Material Multifunctional
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.
