Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Specifications
Model Number :
GYFXTY
Place of Origin :
China
Brand Name :
Wanbao or OEM
Certification :
ISO9001
Packaging Details :
2KM/Wooden Drum
Supply Ability :
1000000 Meter/Meters per Week
MOQ :
2000 meters
Price :
$0.05 - $0.50/meters
Payment Terms :
T/T, Western Union
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Fiber Type :
G652D/G657A1/G657A2
Fiber count :
1-12 Cores
loose tube color :
at your request
Application :
duct or aerial
Outer Jacket material :
PE
Loose tube material :
PBT
Color :
Black
Description

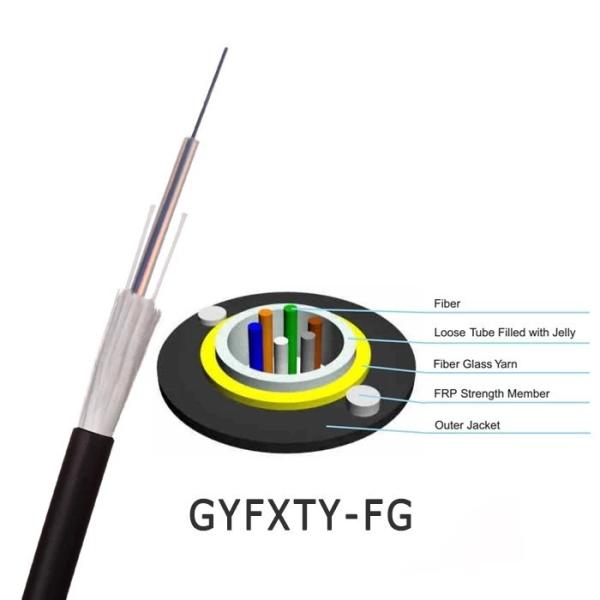

Small Volume Outdoor 1-12 Core Single Mode Fiber Optic Cable With Glass Yarn

Fibre Optic Cabling Internal/External Uni-loose Tube Distribution Cable GYFSTH 2-24 core G652D/G657A/G655
Outdoor drop cable having FRP rods as strength members and containing 1/2/4/6/8/12/24 fiber in full compliance with ITU-T G.652D or G.657A1. The offered cables are fully compliant to the relevant IEC specifications
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
PERFORMANCE

1. A choice of multimode and singlemode fibre types and specifications are offered with fibre counts from four to twenty four in
the standard range.
2. The very small diameter, lightweight and excellent environmental performance makes the cable ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
TECHNICAL DATA
No. of cable
2-24
Fiber Model
G.652D
Loose tube
Material
PBT
Diameter(±0.03)mm
0.35
Thickness(±0.06)mm
3.0
Outer Sheath
Material
LSZH
Thickness(±0.1)mm
1.3
Cable Diameter(±0.2)mm
6.4
Cable Weight(±5)kg/km
49
Min. bending radius
Without Tension
15.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-5~+50
Transport&Storage
-30~+70
Operation
-20~+70
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Packaging detail: 2km / export wooden drum (your request is available )
Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
Small Volume Outdoor Fiber Optic 12 Core Cable With Glass Yarn ODM
FAQ & Contact
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
