FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
Specifications
Model Number :
ASU
Place of Origin :
China
Brand Name :
ODM/OEM
Packaging Details :
2-4km/wooden drum
Supply Ability :
1000000 Meter/Meters per Week
MOQ :
2000 meters
Price :
$0.15 - $0.30/meters
Certification :
RoHS, CE
Payment Terms :
T/T, Western Union
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Fiber Type :
G.652D
Feature :
Outdoor aerial cable
Fiber count :
1-24 Cores
Strength member material :
two FRP
Span length :
100m
Ourer sheath material :
MDPE
Outer sheath color :
Black
Packing :
2-4km/wooden drum
Operation temperature :
-40~+70 degrees
Application :
FTTH
Color :
Black
Description
Hot in Brazil outdoor fiber optic cable price non metal two FRP strength member ASU 1-24 core cabo optica fibra
Outdoor fiber optic cable ASU-1-24 Cores
1.The optical fiber is put in a loose tube.
2.The fiber can be 1-24 cores in the tube.
3.Tube filling compound will be used for as water blocking elements.
4.Two FRP are put together for the tensile strength purpose.
5.This is economic and compact design for replace ADSS in stranded design.
6.The cable is finished with MDPE jacket.
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM

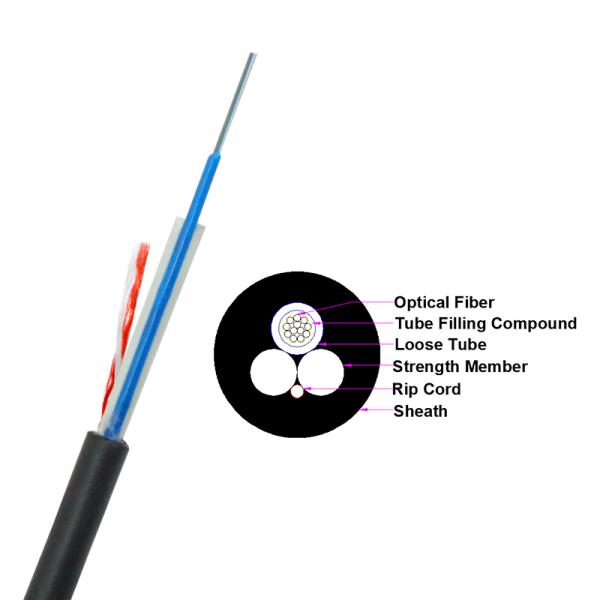

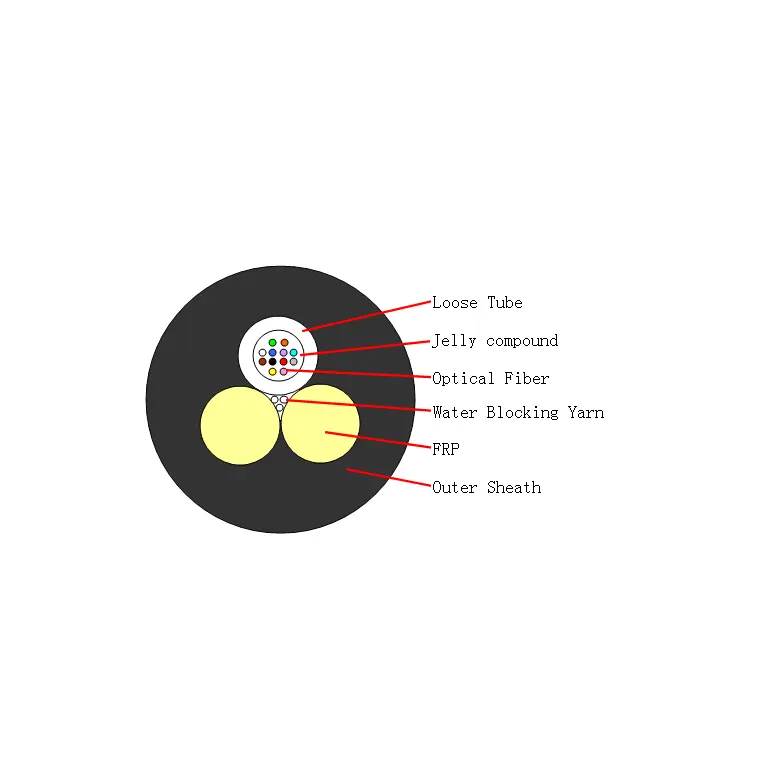

Cable structure
1.The fibers,250um, are positioned in a tube made of a high modules plastic.
2.The tubes are filled with a water-resistant filling compound.
3.Two paralled FRP and outer sheath as a non-metallic strength member.

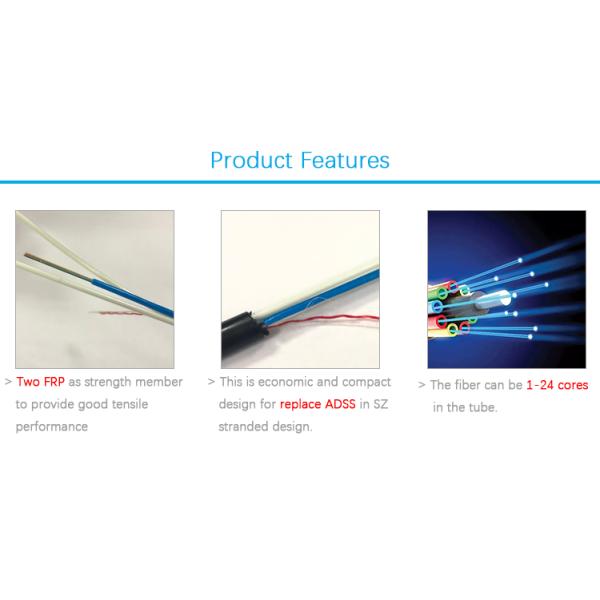

Feature
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
* Non-metal design can prevent the cable from radio interference and magnetic wave interference.
* Central tube filling compound ensure good moisture resistance performance
Technical data
No. of cable
6
12
24
Fiber Model
G.652D
Strength Member
Material
FRP
Diameter(±0.05)mm
2.1
Loose Tube
Material
PBT
Diameter(±0.06)mm
2.0
2.0
2.4
Thickness(±0.03)mm
0.35
0.35
0.35
The Max.Core NO./Tube
6
12
24
Outer Sheath
Material
MDPE
Cable Diameter(±0.2)mm
7.5
Cable Weight(±5)kg/km
55
Span(m)
100
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70
Our Company
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
FRP Strength Fiber Optic Outdoor Cable 24 Cores G.652D Type OEM ODM
FAQ & Contact
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
