GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
Specifications
Model Number :
GJYXC8H
Place of Origin :
China
Brand Name :
ODM/OEM
Certification :
RoHS
Packaging Details :
2-4 km/wooden drum
Supply Ability :
100 Kilometer/Kilometers per Week
MOQ :
2000 meters
Price :
$0.10 - $0.30/meters
Payment Terms :
T/T, Western Union
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Fiber Type :
G.657A1
Fiber count :
12 Core
Outer sheath :
LSZH
Strength member :
FRP
Messenger wire :
7 stranded wires
Color :
Black or Customized
Description

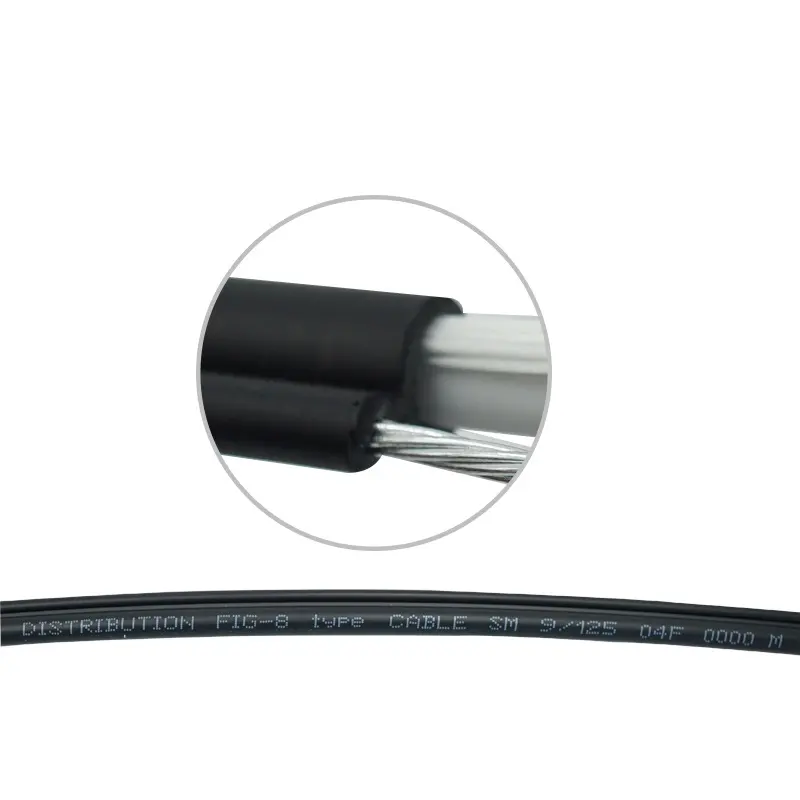

GJYXC8H Outdoor Figure 8 FRP Strength G.652D LSZH 12 Core Single Mode Fiber Optic Cable

Product Description

In the GYXTC8S cable, single-mode/multimode the fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire
locates in the center of core as a metallic strength member.The tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. After an Aluminum Polyethylene
Laminate (APL) moisture barrier is applied around the cable core, this part of cable
accompanied with the stranded wires as the supporting part are completed with a
polyethylene (PE) sheath to be figure 8 structure.

GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode

Specification
No. of cable
12
Fiber Model
G.652D
Loose Tube
Material(color)
LSZH(white)
Diameter(±0.06)mm
2.6
Thickness(±0.03)mm
0.45
The Max.Core NO./Tube
12
Outer Sheath①
Material
LSZH
Thickness(±0.1)mm
0.6
Diameter(±0.2)mm
2.4
Web
Material
LSZH
Size(±0.1)mm
1.0*1.0
Messenger Wire
Material
FRP
Size(±0.1)mm
1.2(0.4mm*7)
Outer Sheath②
Material
LSZH
Thickness(±0.1)mm
1.0
Diameter(±0.2)mm
5.0
Cable Diameter(±0.2)mm(W×H)
5.0*8.0
Cable Weight(±5)kg/km
37
Attenuation
1310 nm
£0.40
1550 nm
£0.30
Min. bending radius
Without Tension
10×Cable-φ
Under Maximum Tension
15×Cable-φ
Temperature range
(℃)
Installation
-10~+60
Transport&Storage
-20~+70
Operation
-20~+70
Other Products

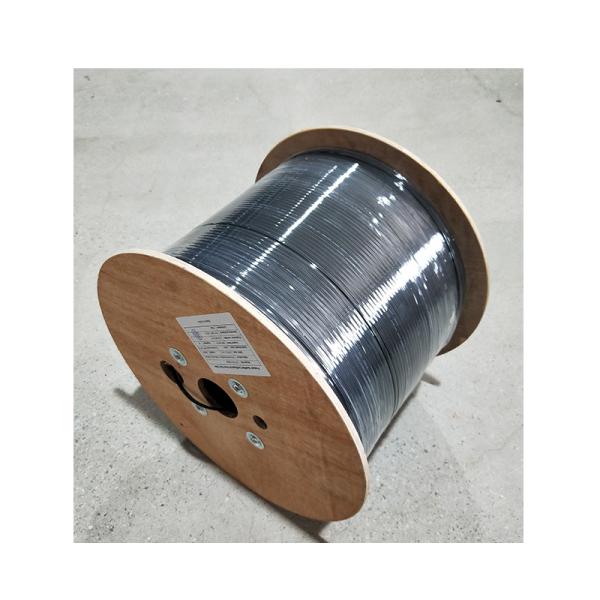

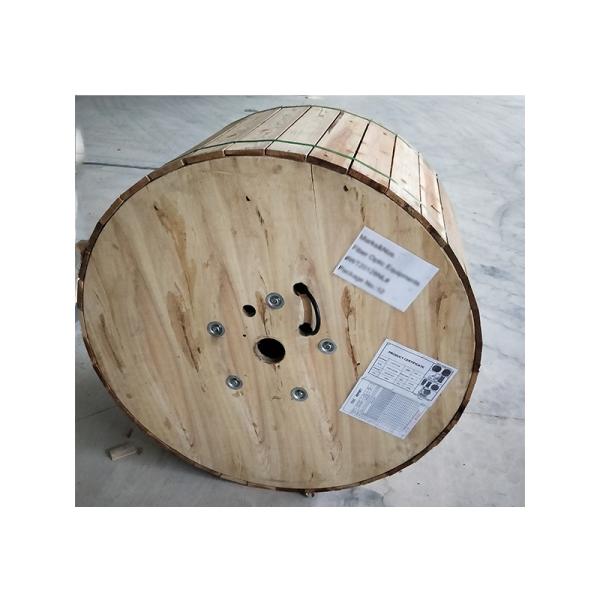

Packing & Delivery
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
1-5 km/wooden drum
Our Company
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
