MachineU > China Products > Electrical Equipment & Supplies > Wires, Cables & Cable Assemblies > Power Cables
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable
Specifications
Model Number :
12 cores distribution cable, GJFJV
Place of Origin :
China
Brand Name :
OEM/ODM
Packaging Details :
2KM/Wood Spool
Supply Ability :
10000 Kilometer/Kilometers per Week
Price :
$0.48/meters >=1 meters
Certification :
RoHS, CE
MOQ :
1000 meters
Payment Terms :
T/T, Western Union
Type :
Fiber Optic Cable
Use :
FTTX
Jacket color :
Aqua
Diameter :
4.8mm
Material :
PVC, LSZH, OFNR, OFNP
Cable weight :
25 kg/km
Tensile strength :
200/660
Crush resistance :
300/1000
Bending radius :
20D/10D
Operating temperature :
-20℃-60℃
Certificate :
ISO
No. of Fiber :
12.
Single-Mode Fiber :
G657A1,G657A2,G655,G652D
Multi-Mode Fiber :
OM1,om2,om3,om4
Description

FTTH Indoor 6 core fiber optic cable OM3 / optical fiber distribution cable

Distribution Cable

Excellent characteristics, content with different requirement indoor, Include: buildings,lift well,FTTD. It can supply bandwidth, transmission speech,data,TV and image. Characteristic: small diameter,light

weight,flexibility. So it Is easy to installation,maintenance and manage.

FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable

FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable

Parameters

Fiber Count

Cable Dimension

mm

Cable Weight

kg/km

Tensile

N

Crush

N/100mm

Min. Bend Radius

mm

Range of Temperature

Long Term

Short Term

Long Term

Short Term

Dynamic

Static

4 core

5.0

17

100

200

200

1000

20D

10D

-20-+60

6 core

5.2

21

100

200

200

1000

8 core

5.5

28

130

440

200

1000

12 core

6.5

36

200

660

200

1000

16 core

7.5

44

200

660

200

1000

24 core

8.2

60

200

1000

200

1000

48 core

12.5

130

300

1000

200

1000

Note:

1. All the values provided in the table, which are for your reference, are subject to change without notice;

2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;

3. D is outer diameter of the round cable;

4. The minimum bend radius (static) is 5D when G.657 fiber is used.

Related Pictures

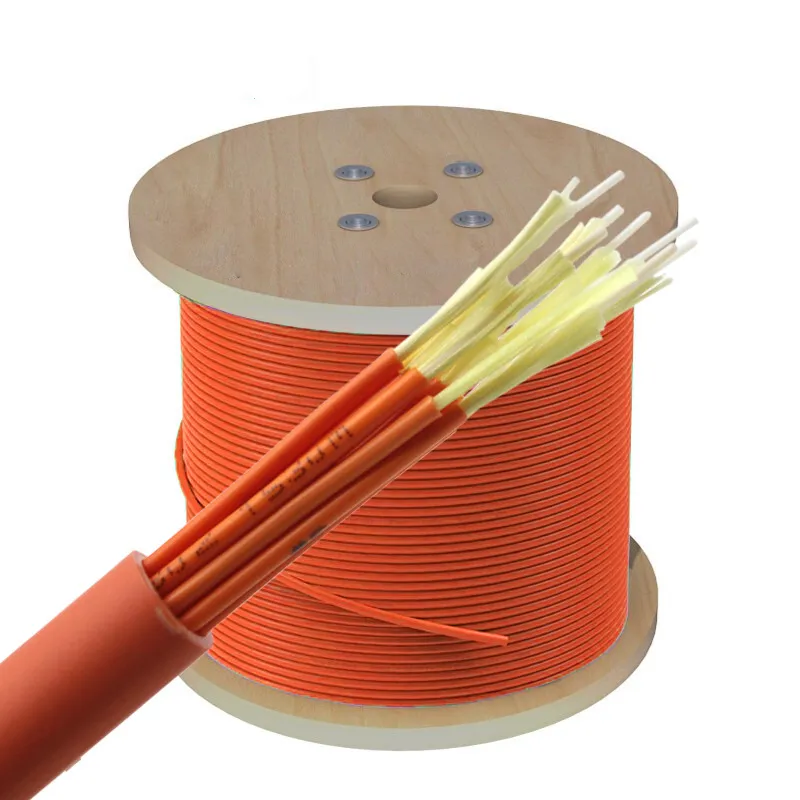

FTTH Indoor 12 core fiber optic cable OM3 / optical fiber distribution cable

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.
With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate
Our Advantages

FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

Product tags

24 strand multimode fiber optic cable

,

fiber optic distribution cable

,

distribution fiber optic cable
