Specifications
Brand Name :
Wirecan
Model Number :
wrk-630
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
USD 35000
Payment Terms :
T/T
Supply Ability :
10 Piece/ Pieces Per Month
Delivery Time :
30 works day
Packaging Details :
Plastic film+wooden box
Conductor Diamter :
0.16-1.0mm
Main Motor :
22kw
Twist Coil :
2~8 coils/second, it can adjust.
Suitable For :
CAT6/7/8 Lan Cable
Twisting Direction :
Clockwise/Counterclockwise
Fit Wire Diameter :
0.03mm-0.45mm
Material :
Steel
Number Of Twisting Heads :
2
Gearbox :
6 Steps
Type :
Double twisti
Twisting Pitch :
Adjustable
Motor Brand :
siemens
Main Machine Power :
11kw
Inverter Brand :
yaskawa
Speed :
80-120 meters per min
Description

1. Product Overview

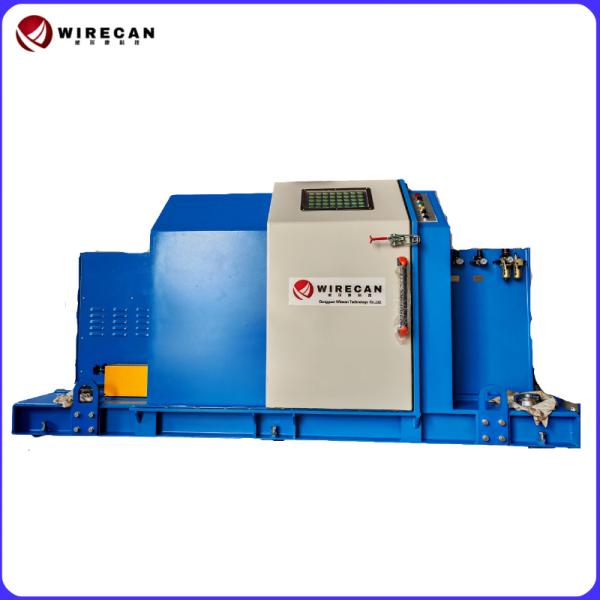

The Donguan Wirecan Cantilever Single Stranding Machine is a professional wire and cable production equipment, specifically designed for twisting and stranding multi-strand core wires of high-frequency cables, data cables, computer cables, and power cables. As the latest cantilever twisting machine equipped with a capstan, it combines high productivity, accurate pitch control, and superior product quality, effectively meeting the stringent requirements of modern cable manufacturing for efficiency and performance.
2. Core Advantages (Buyer-Focused)
  • 2x Higher Productivity: Equipped with high rotating speed (max. 800 RPM for WRK-630), production efficiency is twice that of traditional stranding machines, significantly reducing production cycles.
  • Steady Tension & No Adjustment: Take-up, wrapping tension (adopts magnetic clutch + PLC automatic calculation) remains constant from start to end, ensuring uniform stranded conductor quality without manual intervention.
  • Precise Pitch Control: Pitch (20-250mm) is set via touch screen and controlled by PLC, maintaining stable pitch even during speed acceleration or deceleration deviation in product specifications.
  • Superior Electrical Performance: Fewer wire guiding wheels minimize damage to the wire's electric property, ensuring the final cable meets high conductivity and transmission requirements.
  • Flexible Traversing: Take-up by moving the shaft (no damage to wires); traversing space and pitch can be adjusted freely according to different wire specifications, adapting to diverse production needs.
  • Versatile Application: Widely used for multi-strand core twisting of high-frequency wires, data wires, computer wires, and power wires, one machine for multiple cable types.
  • Advanced Configuration: Equipped with a single-head horizontal high-speed centering taping machine + double-head longitudinal taping machine, enhancing overall production efficiency and product consistency.
3. Detailed Technical Parameters
Specification WRK-630 WRK-800 WRK-1000 WRK-1250
Pay-off Bobbin Φ400 - 500mm Φ400 - 630mm Φ500 - 630mm Φ500 - 630mm
Applicable Wire Diameter Φ0.6 - 3.0mm Φ0.6 - 5.0mm Φ1.0 - 8.0mm Φ3.0 - 10mm
Max. Twisting OD Φ15mm Φ20mm Φ25mm Φ30mm
Twisting Pitch 20 - 250mm (Touch Screen Setting + PLC Control) As WRK-630 As WRK-630 As WRK-630
Max. Rotate Speed 800 RPM 700 RPM 600 RPM 400 RPM
Main Power 15HP 20HP 25HP 40HP
Wrapping Type Single-head horizontal high-speed centering + double-head longitudinal As WRK-630 As WRK-630 As WRK-630
Wrapping Tension Magnetic clutch + PLC auto-calculation (constant, no adjustment) As WRK-630 As WRK-630 As WRK-630
Traversing Type Moving shaft take-up (adjustable space & pitch) As WRK-630 As WRK-630 As WRK-630
