Specifications
Brand Name :
I-suntop
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :

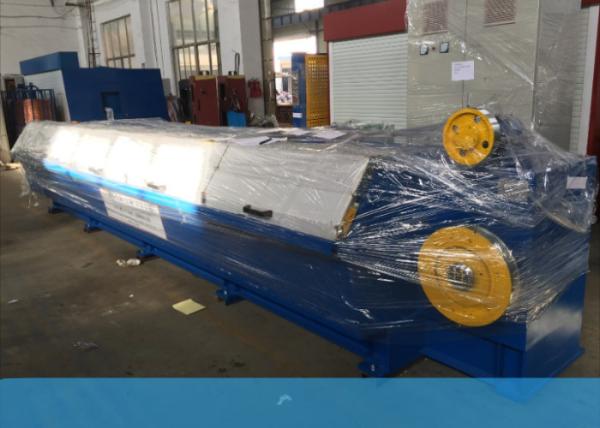

Plastic film+wooden box
Application :
Aluminum Alloy Wire Drawing Machine
Inlet diameter :
9.5mm
Outlet diameter :
1.7mm-4.8mm and 2.5-4.2mm
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
One year warranty
Voltage :
380V AC 50/60Hz
Drawing material :
Aluminum Alloy
Drawing speed :
1200m/min
Description

Rod Breakdown Machine Wire Drawing Machine Aluminum Alloy Wire Drawing Machine

I-suntop copper wire drawing machine20220301.pdf

1. Application for Rod Breakdown Machine Wire Drawing Machine Aluminum Alloy Wire Drawing Machine:

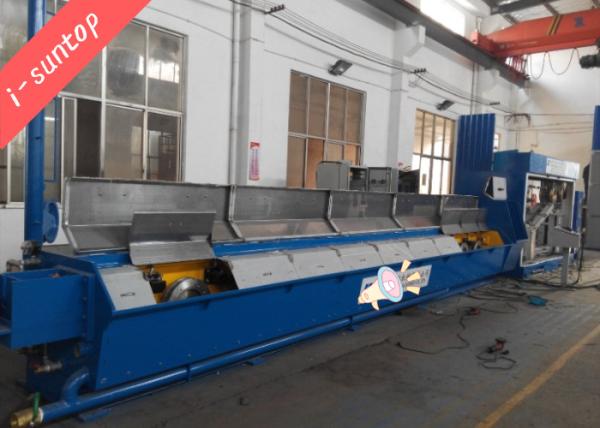

Alinimium rod breakdown machine is used to draw single bare aluminium wire from 9.5mm to 1.7mm-4.8mm and 2.5-4.2mm.The drawing capstans are arranged in a line that are able to work continuously with drawing speed and electrical control can be matched with each other.

2. Specification for Rod Breakdown Machine Wire Drawing Machine Aluminum Alloy Wire Drawing Machine:

Machine type GF-10DL/400 GF-13DL/400
Wire finished φ4.2mm~φ2.5mm φ4.8mm~φ1.7mm
Wire inlet φ9.5mm φ9.5mm
Drawing line speed 1000mpm 1200mpm
Prolongation coefficient 1.34-1.22
Fix speed capstan diameter φ400mm φ400mm
Transmission type By precision ground gears
Main motor AC132KW AC160KW
Lubrication type Water immersion type*spray type
Lubricant type for bearing Pump enforce oil

3. Component for Rod Breakdown Machine Wire Drawing Machine Aluminum Alloy Wire Drawing Machin

Name

Quantity

1.Cantilever Pay-off shelf

1 set

2.HXE-450/13DL Main drawing machine

1 set

3.HXE-180 Tension controller

1 set

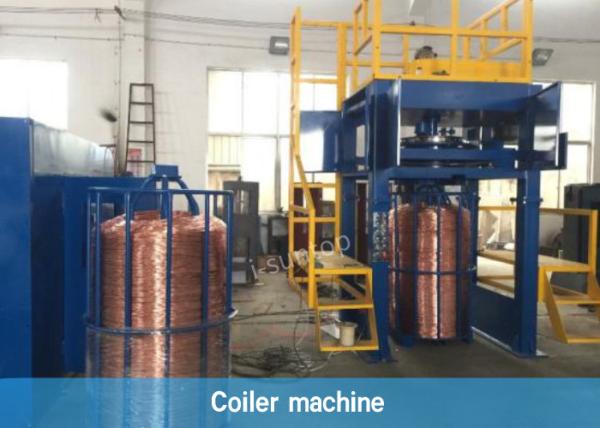

4.HXE-SX630 Double spoolers

1 set

5.Electrical cabinet

1 set

6.Operation panel

1 set

7.Gear Oil system (Pump+Cooler)

1 set

8.Spare parts

1 set
