Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
Specifications
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.30working days
Packaging Details :
Plastic film+wooden box
Brand Name :
I-suntop
Model Number :
GFK-50/GFK-100
Place of Origin :
China
Certification :
SGS
Product name :
Computer controlled Fiber optic cable tensile testing equipment
Application :
optic fiber testing
Standards :
IEC60794-1-2
Color :
Customized
Wavelength :
1310/1550nm
Warranty :
1 year
Operating temperature :
+25-35 degree centegrate
Power supply :
220v
Description

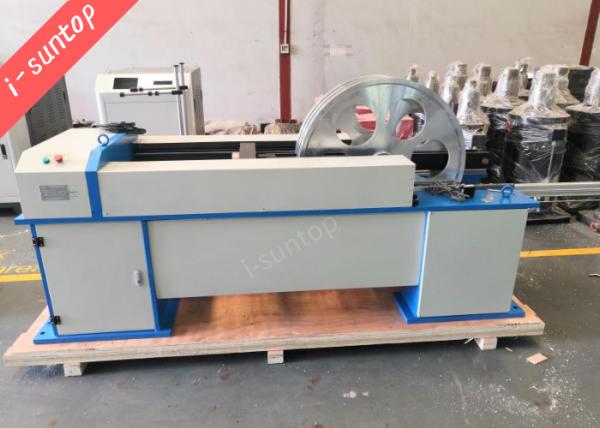

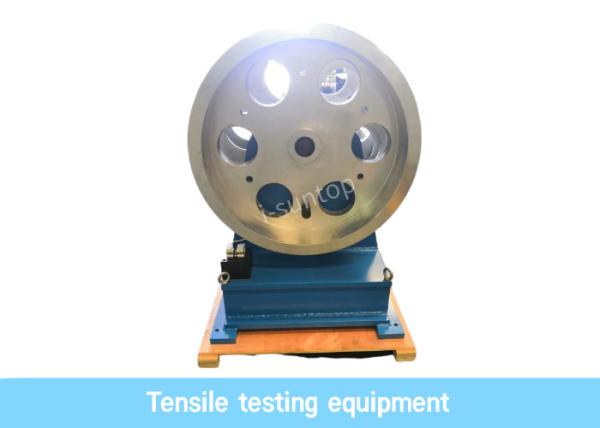

Computer Controlled indoor and outdoor Fiber Optic Cable Tensile Test Equipment

I-suntop Optical cable mechanical testing equipmen...

1. Application of Fiber optic cable tensile test equipment

The optical fiber cable mechanical performance testing machines include tension, crush, impact, torsion, repeated-bending, flexing, winding, abrasion etc. It can meet the IEC-60794-1-2 testing requirement for optical fiber cable.Each testing machine can be operated of all function which by microcomputer controlled. It can be remote controlled by computer through communication port.

Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment

2. Main Technical Specifications of Fiber optic cable tensile testing equipment

Item spec.

Product model

GFK-50/GFK-100

Max load

50kN/100kN

Load measurement range

(1%~100%) F.S.

Load resolution

±250000 yard,no stepping, no change in full scale,resolution unchanged

Load accuracy

±0.5%

Load duration

≥3 Hours, set arbitrarily

Load hold accuracy

±0.5%

Deformation measurement gauge length

1000mm

Deformation measurement range

(0-50) mm

Deformation resolution

0.001mm

Deformation accuracy

±0.5%

Displacement resolution

0.001mm

Displacement control resolution

0.000015mm

Displacement accuracy

±0.5%

Displacement speed range

(0.01～500) mm/min,set arbitrarily

Displacement speed accuracy

±0.5%

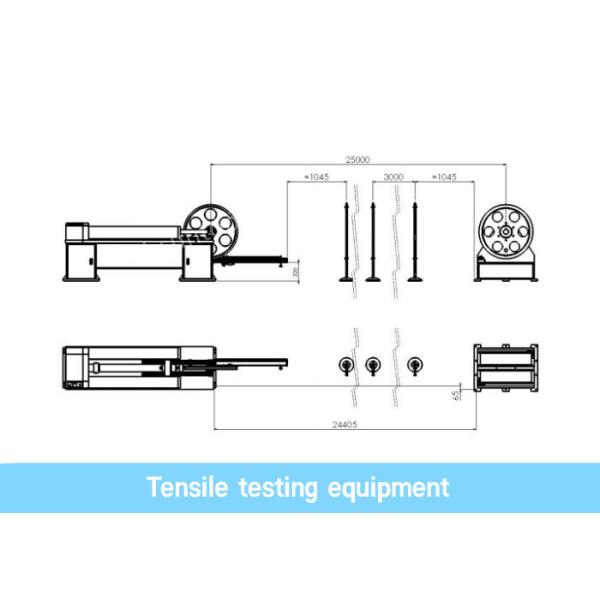

Tension space

25m

Distance of run

1000mm

Max diameter of clamping optical cable

 30mm

Equipment weight

 About 3.5T

3. Installation requirements of Fiber optic cable tensile testing equipment

  • Host power supply: single phase, AC220V±10%, 50～60Hz, 2kW.
  • Computer power supply: single phase, AC220V±10%, 50～60Hz, 0.5kW.
  • Install onto a stable base, levelness≤0.2/1000, and room of more than 1 m around.
  • Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.
  • No vibrating or corrosive media indoor.

Computer Controlled Indoor And Outdoor Fiber Optic Cable Tensile Test Equipment
