300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
Specifications
Brand Name :
I-suntop
Model Number :
I-50
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
By negotiation
Payment Terms :
L/C,T/T
Supply Ability :
Up to different machine
Delivery Time :
Min.50working days
Packaging Details :
Plastic film+wooden box
Extrusion Material :
PBT,PP,PE
Design Speed :
Max.300m/min
No of fiber :
12
Usage :
PBT Coating Central Tube Cable
Warranty :
1year,longtime maitenance
Voltage :
3-phase 5wire 380V 50HZ
Description

Optic Fiber Buffering Line For PBT Coating Central Tube Cable

i-suntop fiber optic cable machine 20220228.pdf

1. Description for Optic Fiber Buffering Line For PBT Coating Central Tube Cable:

The secondary coating line is used to extrude loose tube in which 12 optical fibers are contained. The extruding material can be PBT,PE.

2. Technical parameters of Optic Fiber Buffering Line For PBT Coating Central Tube Cable

Machine type 50×25 Extruder
Jacket material PBT,PP,PE
Desgin speed Max.300m/min

production speed

 20～300m/min(Ф1.8mmPBT loose tube)
No of optical fiber pay-off bobbin 12
Size of optical fiber pay-off reels 25km and 50km standard optical fiber reels
Pay-off tension of fiber 0.4N-1.5N
Take-up reels size PN630reel and PN800 reel
excess loss after extrusion

≤ 0.02db / km (sm fiber@ 1310nm, 1550nm)
Overlength control Overlength control
Meter error <1.5‰

4. Line Configuration for Optic Fiber Buffering Line For PBT Coating Central Tube Cable

Items Qty.
12heads fiber pay off 1set

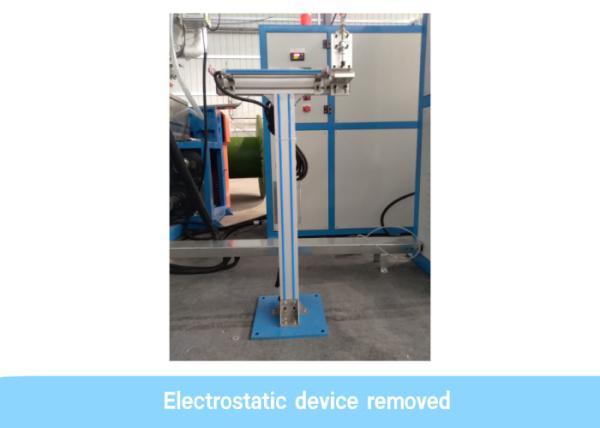

Electrostatic device removed 1set

PLC control Jelly filling device

 1set
50mm main extrusion 1set
50kgDryer +300G hopper 1set
IPC+PLC program control systerm 1set

4m Movable water trough with hot water tank

 2sets

640mm doubel wheel Capstan

 1set

12m Fixed water trough with cooling water tank and blower+Industrial chiller

 1set
Singl type laser diameter gauge 1set
Auxiliary tractor 1set

Vertical accumulator

 1set

630-800mm dual-shaft take-up

1set

300m / Min Optic Fiber Buffering Line For PBT Coating Central Tube Cable
